FOR USE ON: DVC(C,P)(32,36,42)BP - (SEE PAGE 1) AND DVCX(36,42)FP - (SEE PAGE 5)
INSTRUCTIONS MUST BE LEFT WITH THE OWNER FOR FUTURE REFERENCE AFTER INSTALLATION.
DVC (C,P) MODELS
BEFORE FIREPLACE IS INSTALLED IN THE WALL

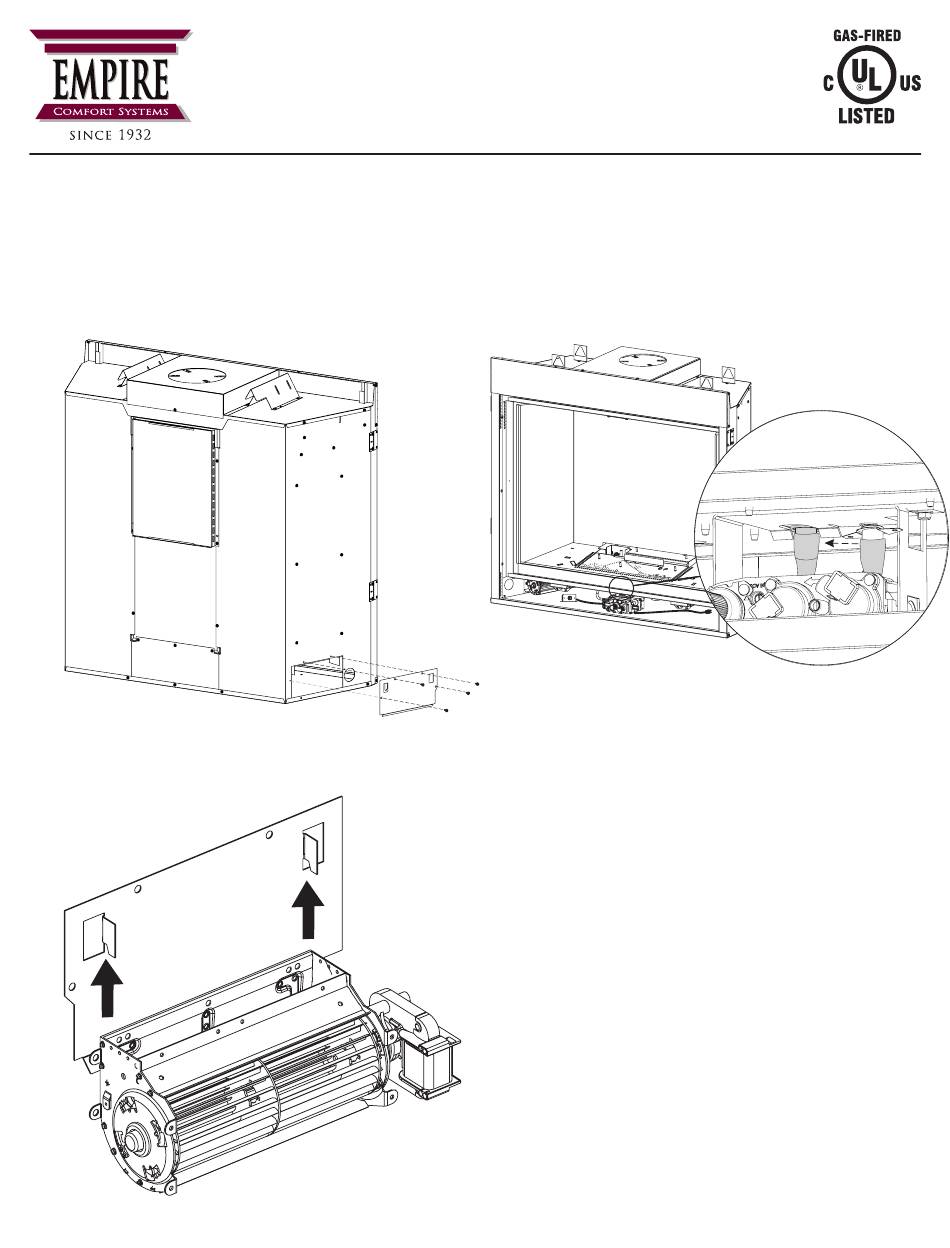

1. With power completely turned off, remove plate and four
screws as shown. See Figure 1.
2. Install the blower onto the pre-bent brackets on the blower
plate. Ensure the Velcro connects to secure the blower in
place. See Figure 2.
37709-2-0220
INSTALLATION INSTRUCTIONS
FBB10 - 1 BLOWER
Figure 1
Figure 2
Empire Comfort Systems Inc. • Belleville, IL
3. Route wiring through opening created in step 1.
4. Secure plate and blower assembly into place with four screws.
5. Install thermo-disc by snapping into valve bracket under the
burner assembly. See Figure 3.
6. Connect Power source into outlet on bottom right side of
fireplace.
Figure 3
