Part Number:

Description:

Saddle Bags & Trunk Box

Fitment:

2005+ Honda Rune

Revision:

Tools Required

3/32 Hex key (Allen wrench)

Phillips Screwdriver

19mm socket wrench

19mm open wrench

12mm socket wrench

Wire Crimper or Pliers

NOTE: We recommend the use of Loctite® or similar

thread lock product when assembling parts on your

motorcycle.

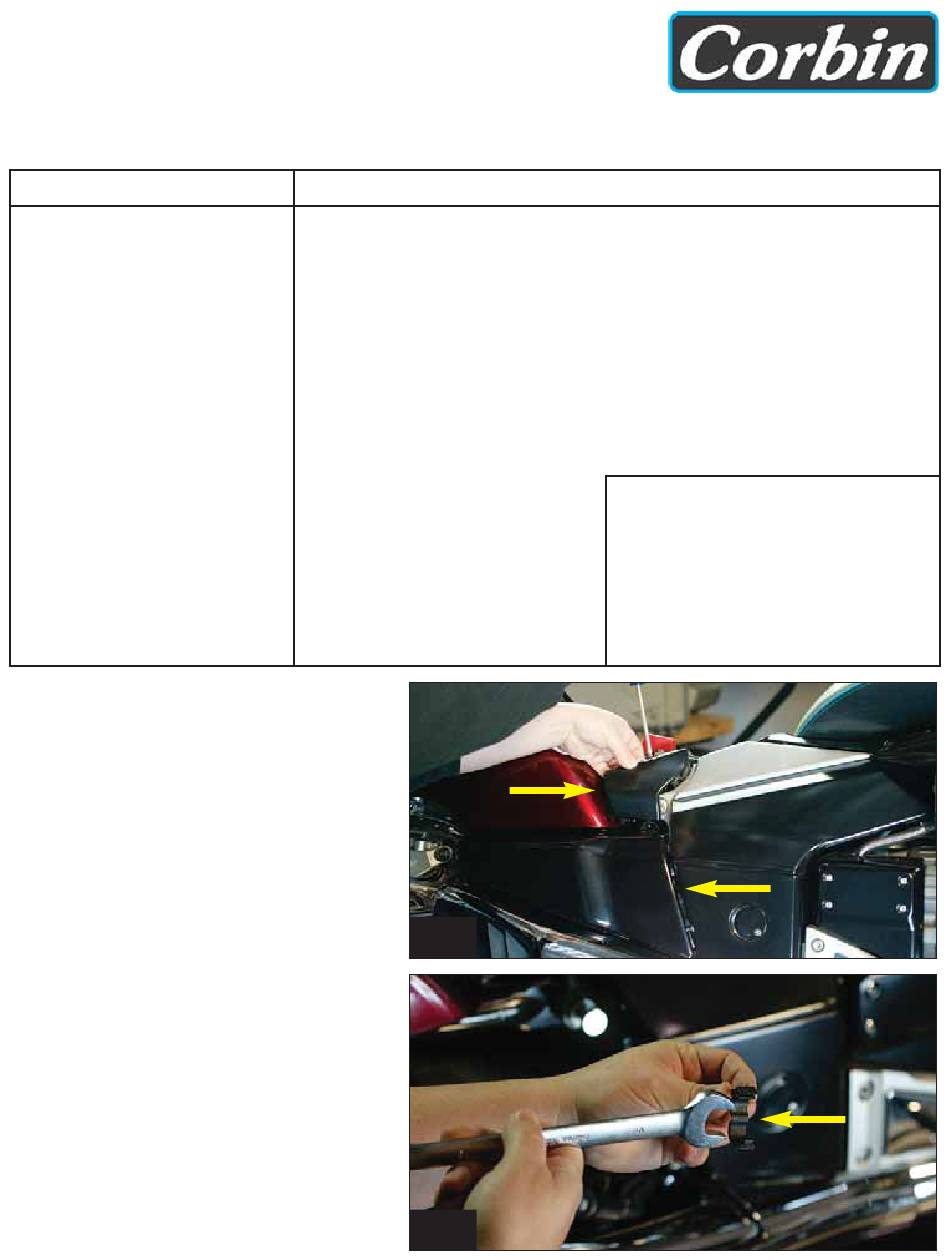

1. Start by removing your stock seat.

2. Remove the top side covers using a phillips

screwdriver. (Figure 1a)

3. Remove the bottom side covers by removing the

screw on the top of the cover. Tug the bottom outward

to release it from the rubber grommets, then slide the

cover back and down to unhook it off the fender.

(Figure 1b)

NOTE: You will not be reusing the bottom side covers,

but you will be reusing the screw that secured the side

cover to the sub frame.

4. Next you are going to install the right foot peg

mounting bracket (#A00848).

H-RUNE-BAG & H-RUNE-HDBOX1H

SADDLE BAGS

1 #A00848 Right foot peg mounting bracket

1 #A00847 Left foot peg mounting bracket

2 8/32 x 1 Phillips Screws

1 #P10472 Stainless steel spacers (long)

1 #P10475 Stainless steel spacers (short)

4 8/32 x ½ Chrome button head Allen screws

1 8mm x 1.25 x 70mm Hex head bolts

1 8mm Split lock washer

1 8mm Flat washer

2 12mm x 1.25 x 60mm Hex head bolts

7 12mm Flat washers

2 12mm Nylock nuts

6 3/8" x 16 Chrome Acorn nuts

6 3/8" Split lock washers

6 3/8" Flat washers

2 Spade connectors

4 Male spade connectors

4 Female spade connectors

2 Side covers

Parts List

FIG 1

FIG 2

1 #A00850 Right bag mounting bracket

1 #A00849 Left bag mounting bracket

4 10mm x 1.25 x 70mm Hex head bolts

TRUNK BOX

1 #A00851 Left Mounting bracket

1 #A00852 Right Mounting bracket

6 1/4" x 20 x 1½" Chrome button head Allen screws

2 3/8" x 16 x 1½" Chrome button head Allen screws

2 3/8" x 16 1¾" Chrome button head Allen screws

6 1/4" x 20 flat washers

4 3/8" split lock washers

PLASTIC

CLIP

Need help?

Do you have a question about the H-RUNE-BAG and is the answer not in the manual?

Questions and answers

Summary of Contents for Corbin H-RUNE-BAG

Page 1 Part Number: H-RUNE-BAG & H-RUNE-HDBOX1H Description: Saddle Bags & Trunk Box Fitment: 2005+ Honda Rune Revision: Tools Required Parts List SADDLE BAGS 3/32 Hex key (Allen wrench) 1 #A00848 Right foot peg mounting bracket 1 #A00850 Right bag mounting bracket...
Page 2 5. Start by removing and discarding the bottom stock hex bolt, washer and nut on the sub frame using a 19mm socket wrench and an open wrench. Three Washers Used as a NOTE: You will need to open the plastic wire clip behind Spacer the stock bolt, to be able to reach the nut with the 19mm open wrench.
Page 3 15. Next, use a 3/32 Allen key to remove the lens from the turn signal housing. 16. Put the male spade connectors onto the wires in the fender and the female connectors onto the lens on the saddlebags (where you cut the wires in step 14). 17.
Page 4 Secure with the supplied 1/4 x 20 x 1½” button head Allen bolts and flat washer. Tighten to 6 ft. lbs. (Figure 17) FIG 15 3/8” x 16 1¾” 3/8” x 16 1½” FIG 16 Questions? Give us a holler... 800-223-4332 tech corbin.com FIG 17...
