Corbin H-18-GW-LID Manual

Part Number:
Description:
Fitment:
2018 - 2020 Honda Gold Wing 1800 Tour
Revision:
2

Tools Required

Phillips Screwdriver
3/32 Allen Wrench
4mm Allen Wrench
For Luggage Rack Installation:
Masking Tape
Blade
3/4 Hole Saw and Drill

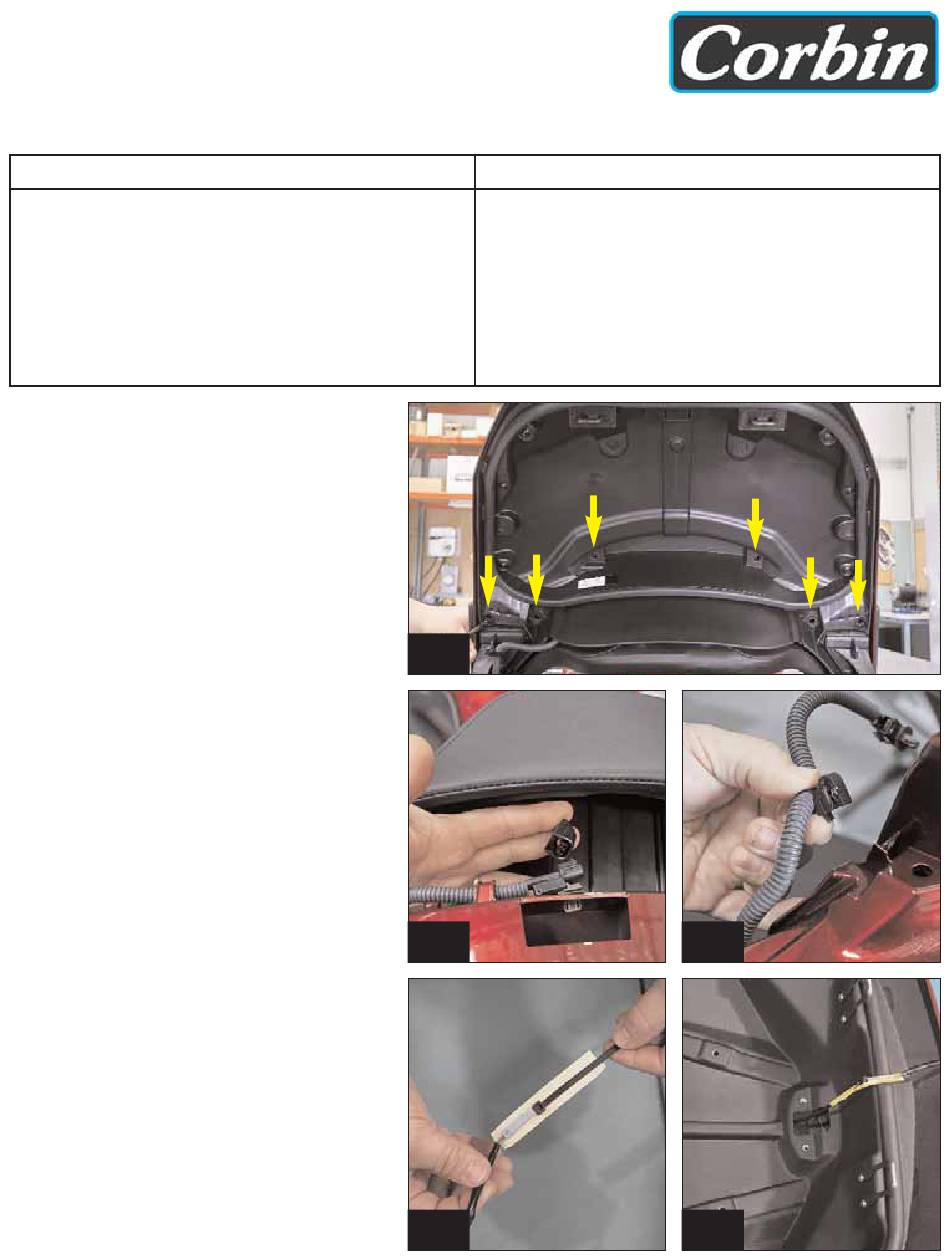

1. Remove the trunkrest pad by removing six
Phillips screws (Figure 1), then lift up the trunk-
rest pad and unplug (Figure 2).
2. Disconnect the three clamps on the wire
harness keeper by squeezing the clamp and then
push out through the hole (Figure 3).
3. If you have the optional trunk light, remove it
from your OEM trunk. See owner's manual if
necessary.
4. Tape together the end of the trunk light wire to
the provided zip tie (Figure 4).
5. Route the zip tie down through the hole in the
Corbin trunk lid (Figure 5) and pull out through
the other side of the lid (Figure 6). Remove the
zip tie.
6. Secure the light housing to the Corbin trunk,
using the supplied Allen bolts and flat washers
(Figure 7).
7. If you haven't done so aleady, remove the
trunk lid by removing the six Allen bolts (three on
each side), using a 6mm Allen wrench (Figure 8).
NOTE: Open lid and remove the last bolts on
each side because the lid may spring up on you.
H-18-GW-LID
Trunk Lid
10 #SP00974 6mm x 16 Allen Bolts
6 #SP00285 1/4" Lock Washers
10 #SP01080 6mm Flat Washers
10 #SP00201 8-32 x 1/2 Button Head Allen Bolts
10 #SP00217 #8 Flat Washers
2 1" x 2" Soft Stick on Velcro
1 12" Zip Tie
FIG 1
FIG 2
FIG 4

Parts List

FIG 3
FIG 5
