2.3 Plasma/ION Accessories setting:

- Insert SIM in correct manner in SIM slot of neoVI Plasma/ION. To insert the SIM
card (while looking at the front of Plasma), insert SIM card squared side first with its
notch facing outboard. Card contacts will be face down towards the pinout label.
Refer Figure 1.

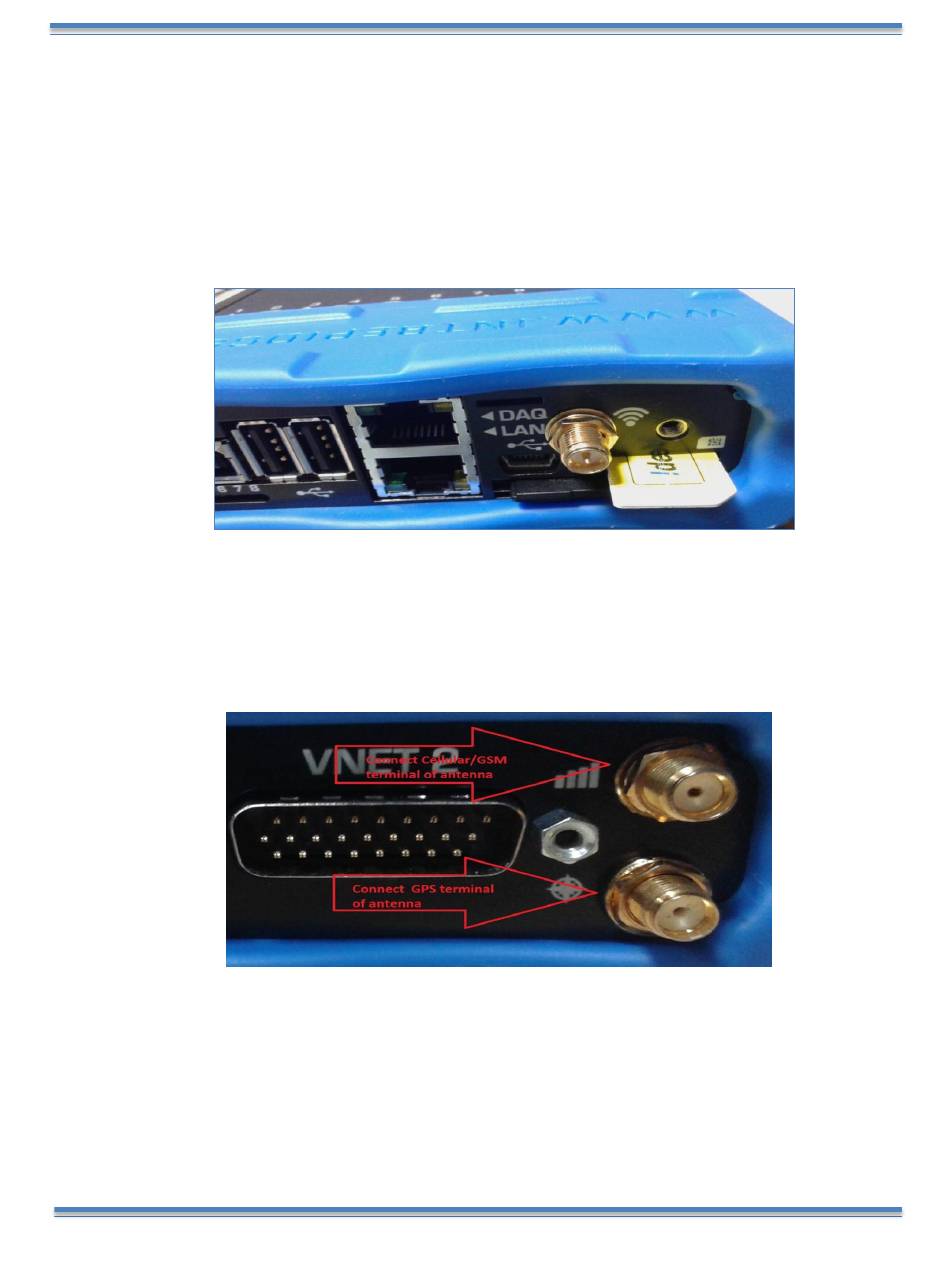

Figure 1: SIM insertion slot in neoVI ION
- Check GPS-GSM antenna is connected properly. Verify GSM /Cellular antenna
terminal connected to the GSM connector and GPS terminal connected to the GPS
connecter (Check symbol printed on Plasma/ION and refer Figure 2. for ION)
Figure 2: GPS-GSM antenna connectors
