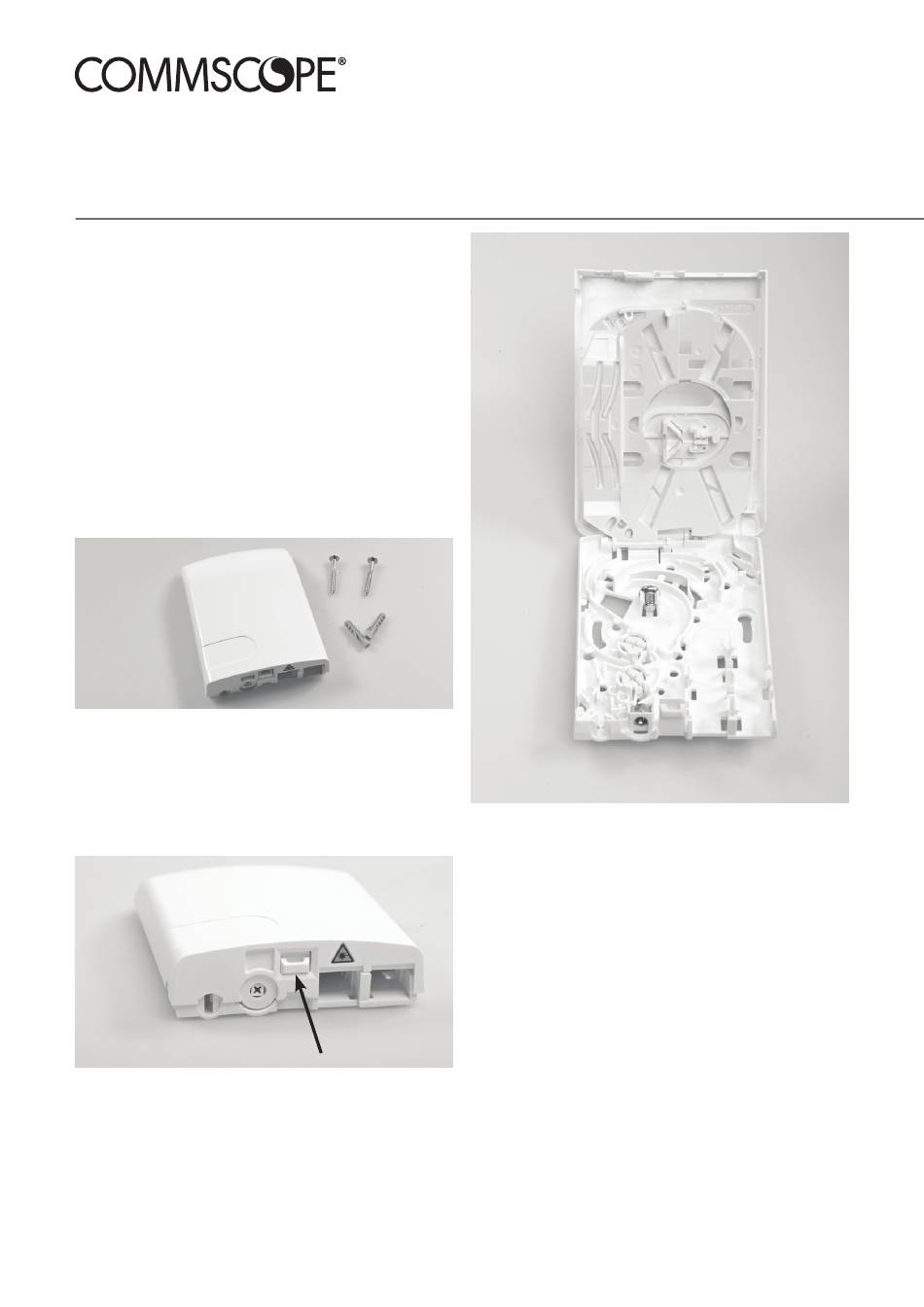

TC-1203-IP
Rev A, Apr 2017
www.commscope.com
1
General
Customer Wall Outlet 2 Fiber for max. 2 bend reduced fibers, 2
SC-adapters or 1 LC-Duplex adapter.
The box is designed for indoor applications for a maximum of 2 fibers.
The maximum fiber length is 1.2 m before and 1.2 m after the splice.
Up to 2 SC- or 1 LC-Duplex-Adapter can be inserted. The box is wall
mountable or can be mounted onto a wall box with a mounting hole
distance of 60 mm.
The box provides cable entrances (Ø 3 - 7 mm) on the left hand, top,
bottom and back side of the box. The box can also be loaded with
max. 2 pre-assembled cables (drop cable) Ø 3 mm from the bottom or
back side. A hinged splice cassette inside, can support max. 2 crimp
splices, 2 heat shrinkable splices. The box can be protected with a
screw or wire seal.
2
Kit content
•
2 X Screw ISO 7049 ST3,5x30-C-H-A2
•
2 x Wall Plug D5-25
•
1x Installation Instruction
•
1x Screw M5 (for securing the box)
3
Handling of the box
3.1
To open the cover press the engagement hook in the middle
of the bottom side of the base (as shown) and pull the cover upwards.
A screw driver can be used to assist in opening the cover. At about
120° the cover will lock in place. It is possible to remove the cover
completely , by pushing, if needed. To close the cover, push the cover
down until in the hook is engaged.
COWO
I N S T A L L A T I O N
Customer Wall Outlet
3.2
To open the cassette press the engagement hook in the
middle of the bottom side of the base (as shown) and pull the cassette
upwards. At about 105° the cassette will lock in place. To close the
cassette, push the cassette down until it snaps in.
I N S T R U C T I O N
Advertisement
Related Manuals for CommScope COWO
Summary of Contents for CommScope COWO
- Page 1 COWO I N S T A L L A T I O N I N S T R U C T I O N TC-1203-IP Rev A, Apr 2017 Customer Wall Outlet www.commscope.com General Customer Wall Outlet 2 Fiber for max. 2 bend reduced fibers, 2 SC-adapters or 1 LC-Duplex adapter.
- Page 2 Cable Entries Top cable entry Cable guide Second bottom hand cable entry 3.4.1. Break out the top cable entry (cable Ø 3 – 7 mm). Second bottom hand cable entry Insert the Cable Guide for a second Cable. The first cable must already be assembled.
- Page 3 2 cables installed Pre-assembled cable (drop cable) 3.4.3 Open up the cable entry if 2 cables will be (cable Ø 3 – 7 mm). 3.4.5 Remove the small rib in the base if required in the strain relief for the second cable as well. 3.4.4.
-
Page 4: Wall Mounting
Remove all burrs and sharp edges from the cable entries and adapter port with a sharp knife (e.g. carpet cutter). Wall mounting Mark the hole position on the wall by using the two vertical holes of the base as a template, drill the required holes Ø 5 mm, 35 mm deep, insert the wall plugs and fasten the box with the screws provided. -
Page 5: Fiber Management
Fiber Management Strip 1.4 m of the cable sheath and shorten the Aramid-Fibers to an approximate lengths of 125 mm. Fiber management for bottom and left side cable ??? Cable stop Cable stop vPush the cable (Ø 3 - 7 mm) down aligning the end of the cable sheath with the cable stop at the bottom of the box. - Page 6 Fiber management top cable entry Fiber management rear cable entry Cable stop Cable stop for ø > 3mm Cable stop for ø ≤ 3mm Push the cable (Ø 3 - 7 mm) down aligning the end of the Observe the minimum bend radius for the cable when it is cable sheath with the cable stop.
- Page 7 Cable management pre-assembled cable (drop cable) Strain relief for Aramid-Fibers Strain relief first cable (75 mm) Up to 2 SC-Adapter or 1 LC-Adapter can be positioned at the front face or inside the box. Strain relief first cable Bottom drop cable entry. Cut the Aramid-Fibers to length as shown above.
- Page 8 Strain relief second cable (90 mm) Strain relief top cable entry (125mm) Strain relief second cable Strain relief first cable In case of strain relief second cable repeat the steps from point 6.1. In case of strain relief top cable entry repeat the steps from point 7.1.v Strain relief backside Cable Entry (100mm) In case of strain relief backside cable entry repeat the steps...
- Page 9 Fiber management inside splice cassette Adapter positions Two positions of adapter are possible. In the front position the plug can be accessed with the box closed. At the inside position the plug cannot be accessed when the box is closed and/or sealed. The box needs to be opened first.
- Page 12 © 2017 CommScope, Inc. All rights reserved. web at www.commscope.com All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. For technical assistance, customer service, or to report any This document is for planning purposes only and is not intended to modify or supplement any specifications or warranties relating to missing/damaged parts, visit us at: CommScope products or services.
