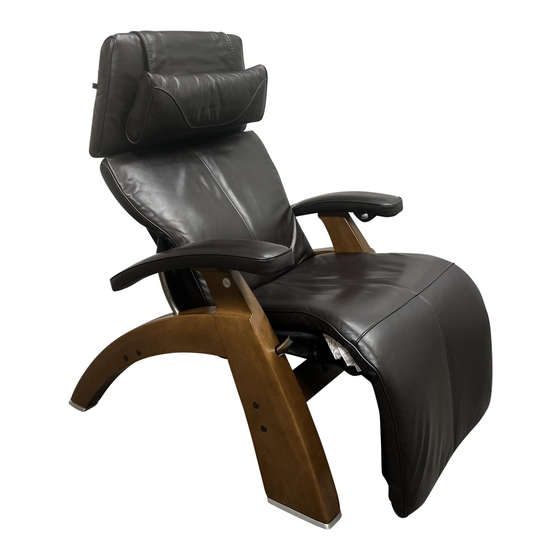

Human Touch PC-600 Quick Start Manual

PC-600/610
It is imperative that Human Touch products are repaired in a manner that ensures product safety and regulatory compliance and that is fully consistent with the practices used
®
during the manufacturing process. Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair
instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
Tools Required: Phillips-head screwdriver
NOTE: SAVE ALL REMOVED PARTS FOR USE DURING REASSEMBLY

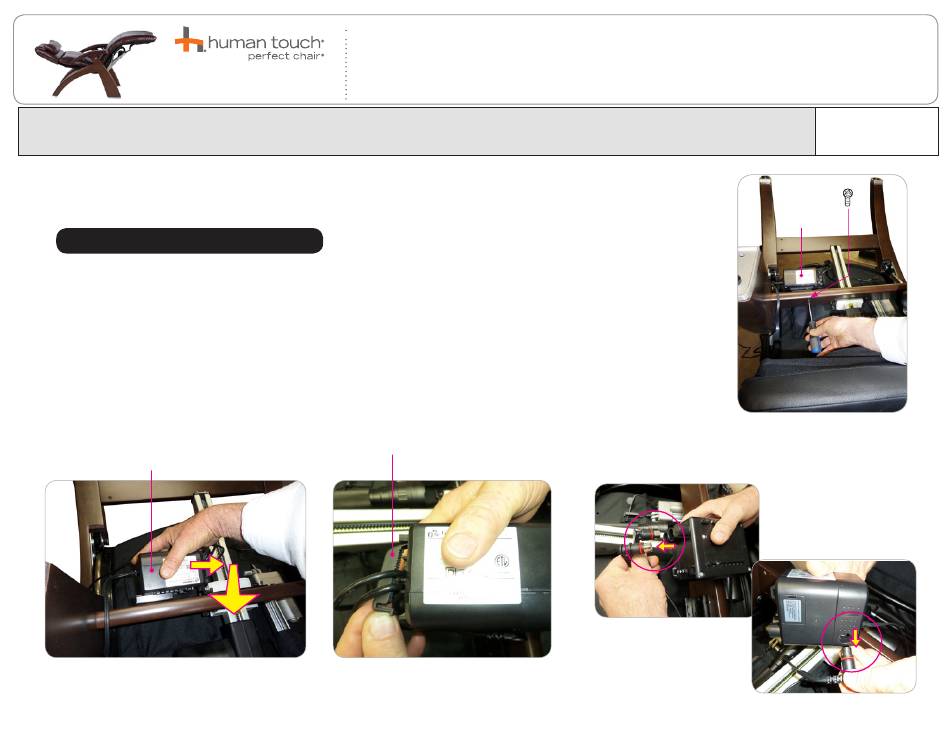

REMOVING THE CONTROL MODULE

1. Unplug the chair.
2. Tip the chair forward, resting the headrest on the floor.
3. Using a Phillips-head screwdriver, remove the screw that secures the control module to the chair (Fig.1).
4. Slide the control module to the right, then pull it toward you to remove it from the chair (Fig.2).
5. Remove the cable clamp from the control module (Fig.3).
6. Note which cable is plugged into which receptacle (or mark them), then unplug the three cables from the
control module. (Fig.4).
Control module
(Fig.2)

REPLACING THE MAIN CONTROL MODULE

Cable guide
(Fig.3)
February 11, 2016
SERVICE LEVEL: 2
Control module
(Fig.1)
(Fig.4)
1
