RAD-Galaxy User's Guide

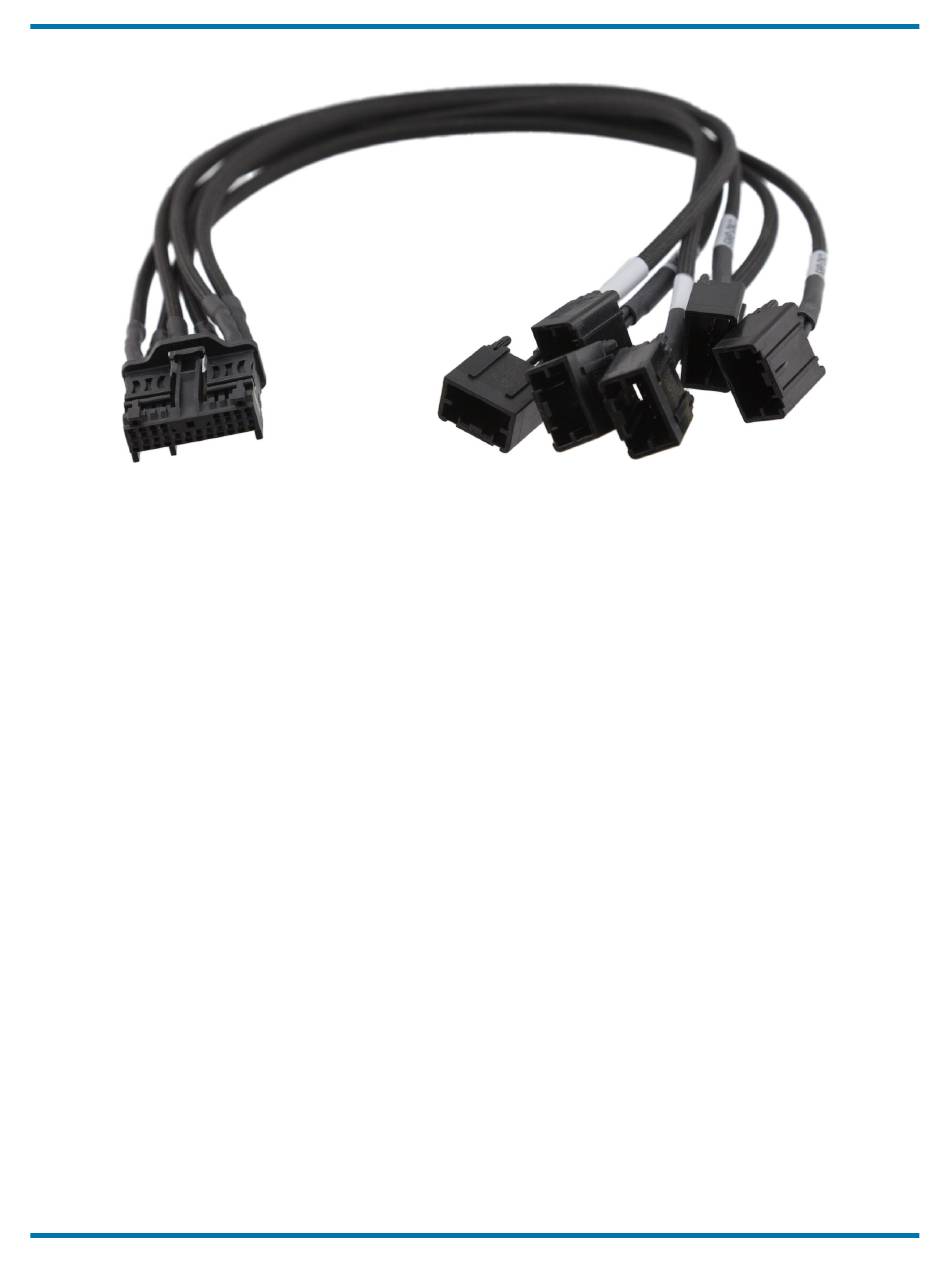

Figure 18: Nano MQS Plug with Attached Cables.
Ethernet Cables
Two standard Ethernet cables are provided to connect the RAD-Galaxy to the PC and to the
DoIP jack on the RAD Galaxy Ethernet Cable Adapter. You will need to provide a third Ethernet
cable of the appropriate length to connect to your vehicle or bench for DoIP use, if required by
your application.
Version 1.2 - November 28, 2017
26
© 2016 Intrepid Control Systems, Inc.
