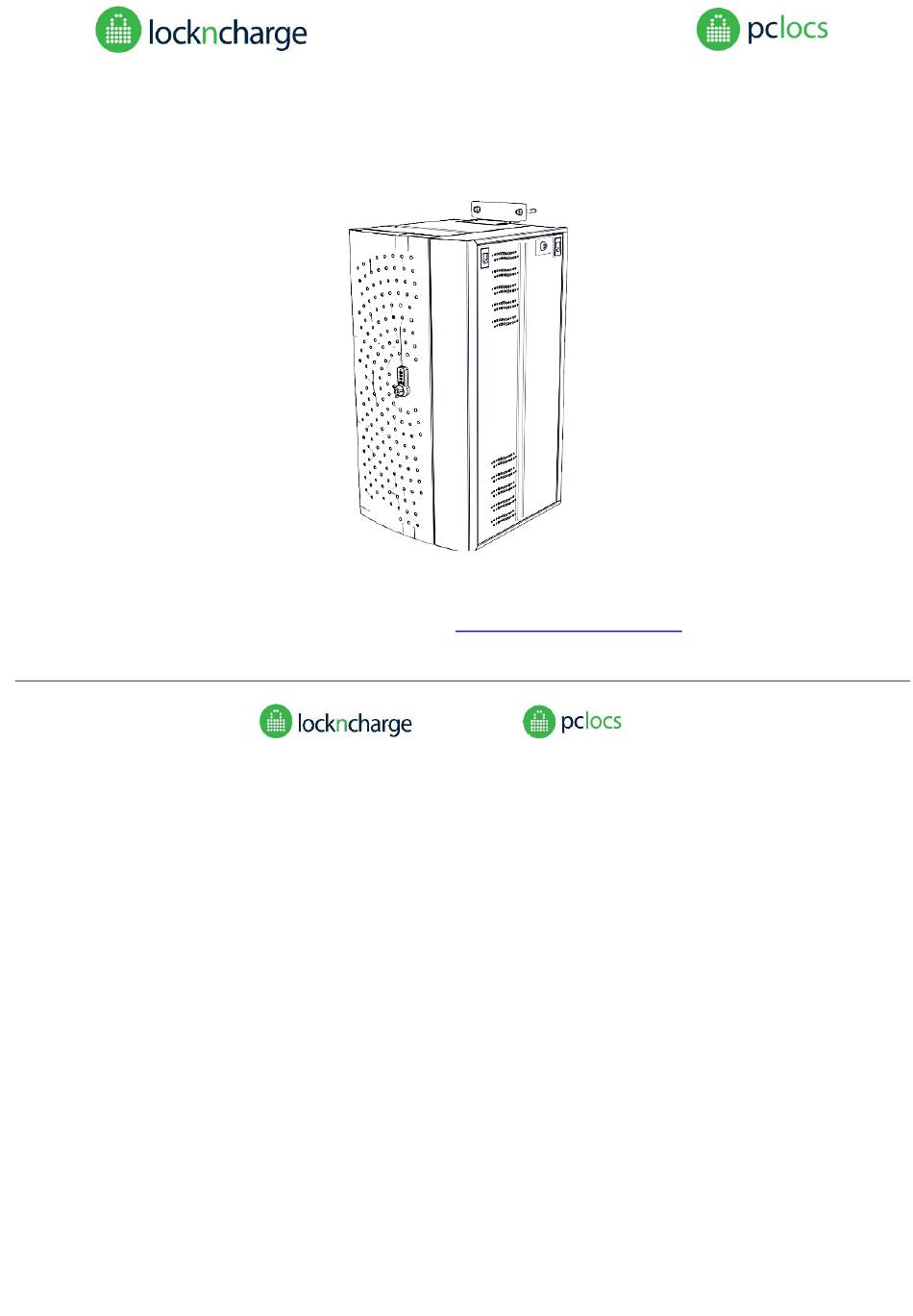

INSTRUCTIONS:
PUTNAM 18C CHARGING STATION™
Congratulations on your purchase.
Follow these instructions for easy and fast set-up of your Putnam 18C Charging Station.
For video instructions, go to
https://vimeo.com/284290388
Warranty:
For more information on warranty please visit:
www.lockncharge.com/warranty
www.lockncharge.com/eu/warranty
www.pclocs.com.au/warranty
Disclaimer:
This information is the intellectual property of IWS Global Pty Ltd and may not be distributed, duplicated or copied in part or full without the written permission. Since
the use of this information, the equipment connected and the conditions by which any IWS Global product is used is beyond the control of IWS Global, it is the
obligation of the owner and/or user to determine the correct and safe use of any equipment and product. To the extent that the law permits, any liability which may be
incurred as a result of the use or future use of a product manufactured or sold by IWS Global is limited to the cost of repairing or replacing the failed product or
component at the discretion of IWS Global either within, or outside of warranty periods, and does not extend to any loss or damage which may be caused as a
consequence of misuse or failure of the equipment or product or the information contained herein. IWS Global shall not in any event be liable for economic loss of
profits, indirect, special, bodily injuries or consequential damages.
Specifications and images are for illustration purposes only. Final product may differ and is subject to change without notice.
PC Locs, LocknCharge and the Padlock device are Trademarks of IWS Global Pty Ltd.
Copyright IWS Global Pty Ltd, May 2019.
www.pclocs.com.au
www.lockncharge.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUTNAM 18C and is the answer not in the manual?

Questions and answers

Summary of Contents for LocknCharge PUTNAM 18C

  • Page 1 INSTRUCTIONS: PUTNAM 18C CHARGING STATION™ Congratulations on your purchase. Follow these instructions for easy and fast set-up of your Putnam 18C Charging Station. For video instructions, go to https://vimeo.com/284290388 Warranty: For more information on warranty please visit: www.lockncharge.com/warranty www.lockncharge.com/eu/warranty www.pclocs.com.au/warranty Disclaimer: This information is the intellectual property of IWS Global Pty Ltd and may not be distributed, duplicated or copied in part or full without the written permission.
  • Page 2 Instructions for Putnam 18C Charging Station Purpose: The Putnam 18C is a cabinet designed to store, secure and charge personal electronic devices such as tablets, phones, laptops, Chromebooks etc. utilising the power adaptor supplied with the device. It can be supplied as a single cabinet or stacked in a tower of two with obligatory pedestal.
  • Page 3 Benchtop location: Fit bracket and adjust to wall insert screws Drill holes in wall and insert fixings Completed installation: www.pclocs.com.au www.lockncharge.com...
  • Page 4 Stacking cabinets & pedestal: Operating the Combination Lock Turn anticlockwise to lock Turn clockwise to unlock Combination Lock is set to 0-0-0-0 for shipping. See lock instructions for setting your own code Installing Wall-mounting bracket www.pclocs.com.au www.lockncharge.com...
  • Page 5 (PDU) is then connected to the Eco-timer powerboard (in pedestal) using one of 4 x IEC C13 to C14 cables (Worldwide, except USA) or 4 x IEC C19 to Nema15 cables (USA). These are shipped in the pedestal ready for connecting. Use key to unlock/lock the pedestal camlock www.pclocs.com.au www.lockncharge.com...
  • Page 6 Rout cables through each cabinet and connect to PDUs Connect four cables to Eco-timer Connect the power cord to a wall socket and rout through the rear grommet, then plug into Eco-timer IEC C20 socket (USA) or IEC C14 (rest of world) www.pclocs.com.au www.lockncharge.com...
  • Page 7 Alternate each brick plug in the PDUs Rout cables through securing clip and grommeted hole. Rout device cable through grommet, adjust length and secure in the cable catch (depending on whether the device’s power socket is on the LHS or RHS) www.pclocs.com.au www.lockncharge.com...
  • Page 8 Unclip the two PDUs Unscrew the mounting plates and Install PDU’s on new location move to the adjacent panel Install device plug-packs For operation of the Eco-timer power board in the Tower arrangement, follow the instructions (inserted in the parts box). www.pclocs.com.au www.lockncharge.com...
