Mockup screen provide the information of for following Dashboard button functions .

Side menu

Notifiaction

Change

Login

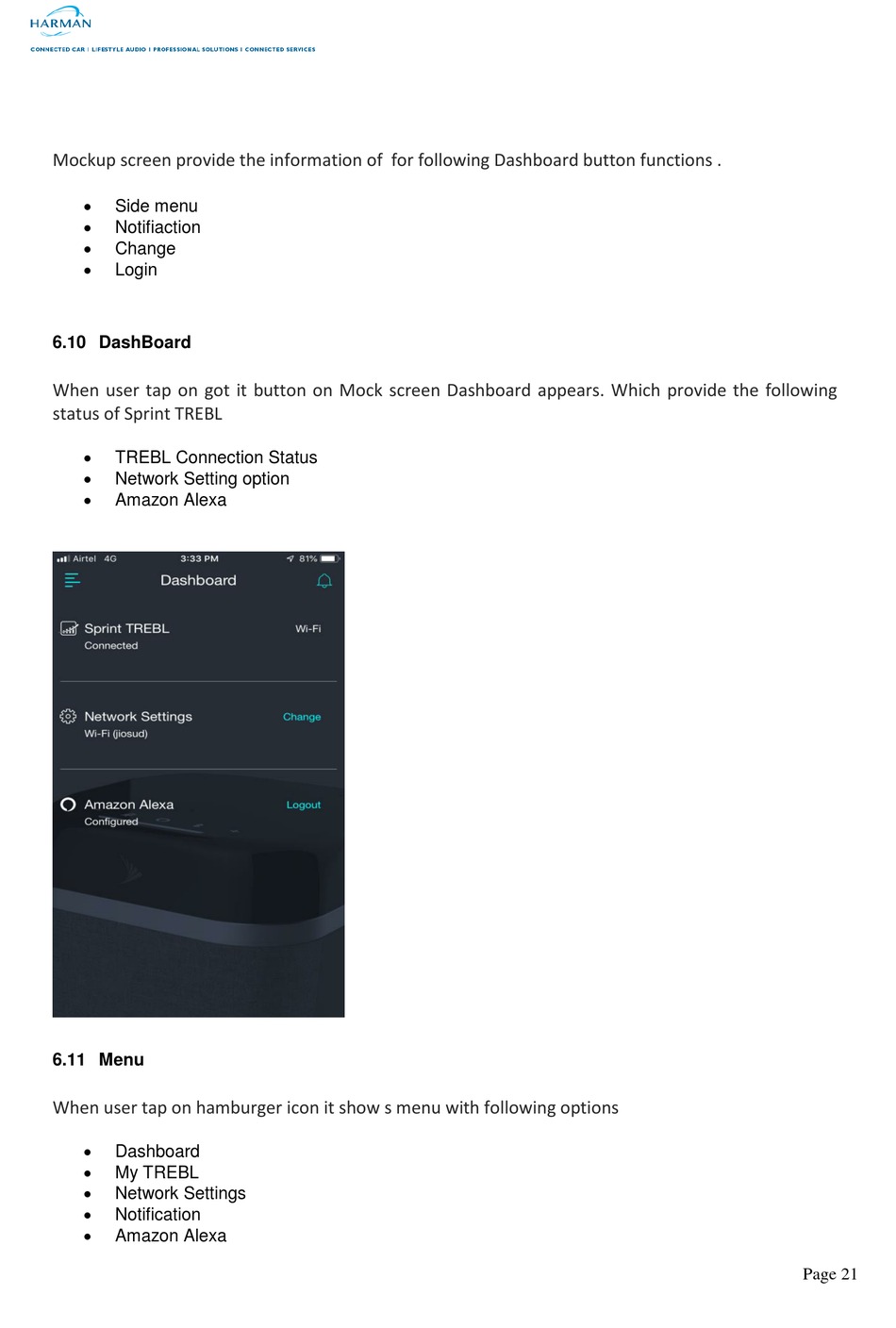

6.10 DashBoard

When user tap on got it button on Mock screen Dashboard appears. Which provide the following
status of Sprint TREBL

TREBL Connection Status

Network Setting option

Amazon Alexa

6.11 Menu

When user tap on hamburger icon it show s menu with following options

Dashboard

My TREBL

Network Settings

Notification

Amazon Alexa
