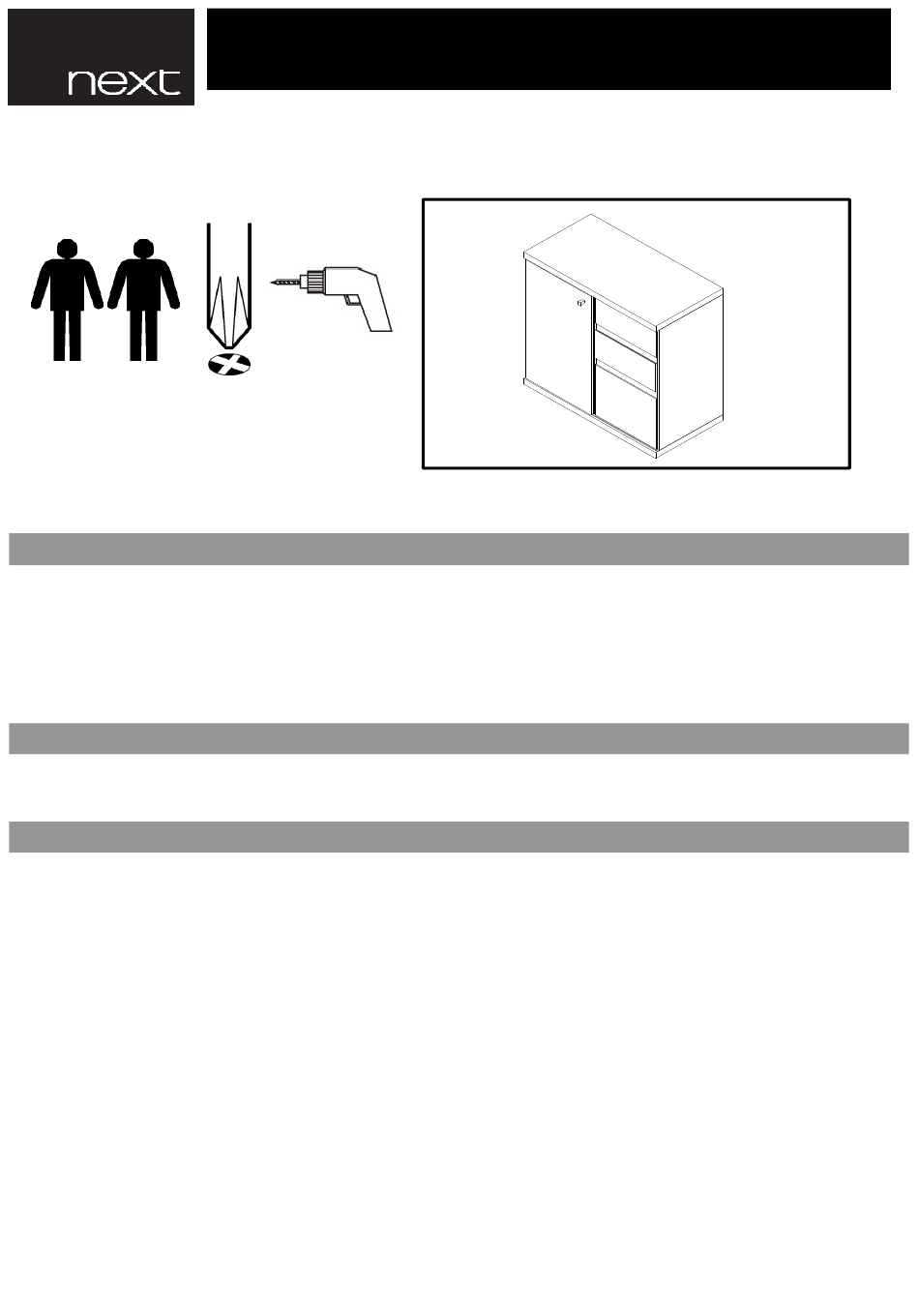

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY

Tools Needed

Helpline

If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: 0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be
faulty. Should you need to return the unassembled product, please repack in the original packaging.

IMPORTANT

• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of two persons is required to assemble this product.
• Wall fixings are not included.
• We recommend the use of the wall attachment bracket/strap provided for safety reasons.

PRODUCT INFORMATION

• Made from PB,MDF,hollow board & Honeycomb board with a pvc foil finish.
• Made in China.

CARE INSTRUCTIONS

•Gloss finishes are prone to light surface scratch and it is therefore very important that
you care for this item correctly.
• For general cleaning, periodically dust with a soft clean lint-free cloth or a soft micro fibre cloth. Please note soft cloths
(including yellow dusters) contain abrasive fibres which can lightly scratch the surface, if in doubt please try your cloth in
an inconspicuous area of the furniture first to assess its suitability. A sample of a suitable cloth for cleaning is included
within the hardware pack
• Do not rub or scrub the surface when cleaning.
• Do not use furniture polish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent scratching or
damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.

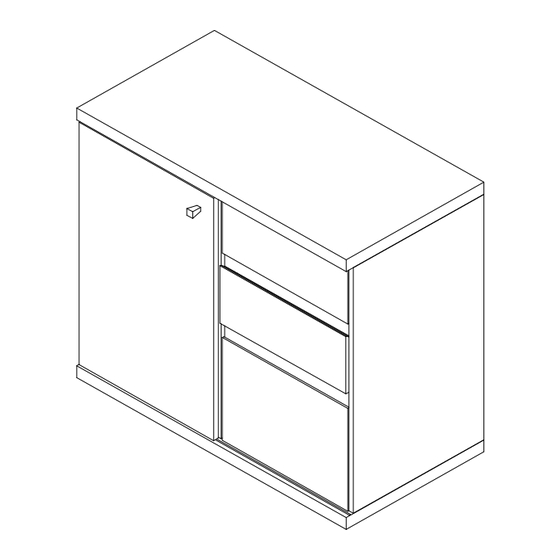

896267 MILANO BLACK GLOSS
SMALL SIDEBOARD
ASSEMBLY INSTRUCTIONS
Page 1 of 8
