Summary of Contents for Electrothermal MH8516

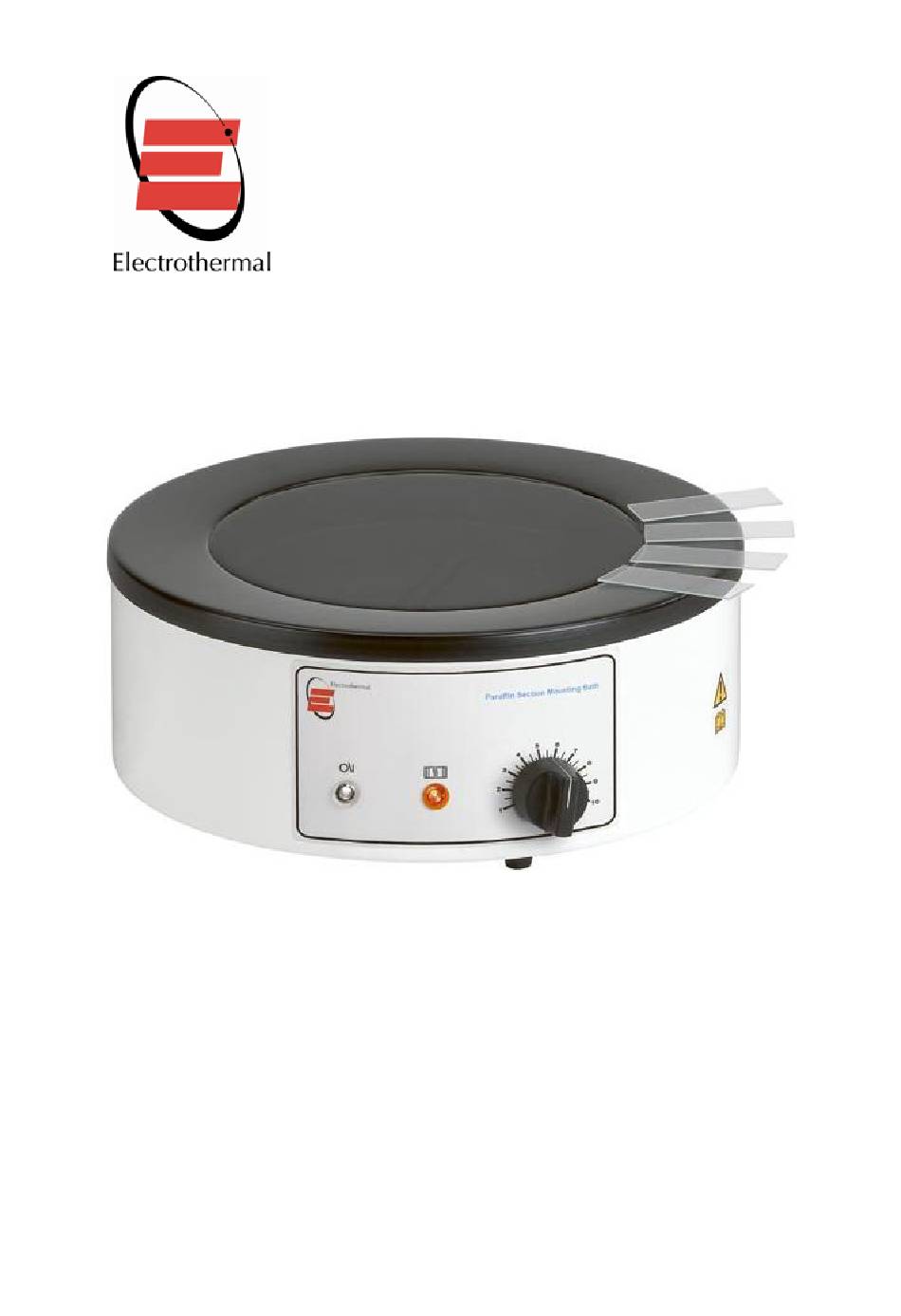

- Page 1 PARAFFIN SECTION MOUNTING BATH MH8516 MH8516/x1, MH8516/x6 INSTRUCTION BOOK Page 1 of 20 M8015 issue 2.1...
-
Page 2: Table Of Contents
© The copyright of this Instruction book is the property of Electrothermal. This instruction book is supplied by Electrothermal on the express understanding that it is to be used solely for the purpose for which it is supplied. It may not be copied, used or disclosed to others in whole or part for any purpose except as authorised in writing by Electrothermal . -
Page 3: Introduction
1. INTRODUCTION. The MH8516 Paraffin section bath is designed for use as a heated, distilled water floating out bath for the manipulation and location of paraffin wax sections onto glass slides. The MH8516 Paraffin bath uses an energy regulator designed to supply power to a silicon rubber mat heater in controlled timed pulses in order to maintain accurate water temperatures. -
Page 4: Symbols And Using This Instruction Book
2. SYMBOLS AND USING THIS INSTRUCTION BOOK 2.1. Throughout this Instruction book the following symbols are shown to identify conditions which pose a hazard to the user, or to identify actions that should be observed. These symbols are also shown on the product, or its packaging. When a symbol is shown next to a paragraph or statement it is recommended the user takes particular note of that instruction in order to prevent damage to the equipment or to prevent injury to one’s self or other people. -
Page 5: Safety Information
SAFETY INFORMATION. This product has been designed for safe operation when used as detailed in accordance with the Manufacturer’s instructions. NOTE: Failure to use this equipment in accordance with the manufacturer’s instructions may compromise your basic safety protection afforded by the equipment and may invalidate the warranty / guarantee. - Page 6 The equipment is not spark, flame or explosion proof and has not been designed for use in hazardous areas in terms of BSEN 60079-14:1997. Keep flammable, low flash point substances away from the apparatus. Do not operate or handle any part of the product with wet hands. Page 6 of 20 M8015 issue 2.1...
-
Page 7: Unpacking And Contents
4. UNPACKING AND CONTENTS 4.1. Please check the contents of your carton against the diagram. Contents. Item Description Paraffin Section Mounting Bath Instruction book (this document). Mains lead and moulded IEC plug set. (Illustration may be different to lead set supplied depending on country of use). Serial Number Model Number For future reference... -
Page 8: Installation
5. INSTALATION 5.1. Electrical safety and installation. 5.1.1. This equipment is designed for safe use under the following conditions:- Indoor use. Altitude up to 2000 meters. Temperatures between 5 C and 40 C. Maximum relative humidity 80% for temperatures up to 31 C decreasing linearly to 50% relative humidity at 40 C. -
Page 9: Environmental Protection
Electrothermal products, or you may copy and enlarge from ‘Appendix A’ of the instruction book. Electrothermal is registered as Electrothermal Engineering Limited with the Environment Agency as a producer of WEEE (Waste Electronic and Electrical Equipment) through b2b Compliance, an authorised waste collection compliance scheme. -
Page 10: Product Operation
7. PRODUCT OPERATION. 7.1. The Paraffin Bath has been designed for easy operation. The illustration below shows a detailed layout of the product. Bath tank Mains power on neon (White). Heater on neon. (Amber). Temperature control regulation knob Read instruction book label Mains IEC plug socket and protection fuses Data plate label Earth bonding test point. - Page 11 Note: The Amber neon will switch on and off as the energy regulator cuts in and out. 7.5. When the distilled water has reached the required temperature, reduce the heating temperature and allow it to stabilise. Add further distilled water if required. 7.6.
-
Page 12: Technical Specification
TECHNICAL SPECIFICATION. 8.1. Specifications. MH8516 and MH8516x6 230V – AC 50/60 Hz or Mains Power Supply MH8516x1 115V – AC 50/60 Hz as stated on the data plate Voltage label. Maximum Power 240 Watt max at 230V Consumption 240 Watt max at 115V Operational temperature 70 C Nominal with 2 litres water. -
Page 13: Maintenance
9. MAINTENANCE 9.1. General Information. Unplug the unit from the mains voltage supply and allow it to cool before undertaking any maintenance tasks. Maintenance should only be carried out under the direction of the Responsible Body, by a competent electrician. Failure to do so may result in damage to the product and in extreme cases be a danger to the end user. - Page 14 9.3. Spillage and Decontamination. In the event of spillage switch off and unplug this product from the mains electrical supply. Wipe off all excess liquid from the bath and surrounding area using an absorbent soft cloth. Allow sufficient time for any ingressed liquid to evaporate before commencing with use.
-
Page 15: Customer Support
For help and support in using this product, please contact at the following address. For the America’s and Canada, contact: Electrothermal. Electrothermal House. Techne Incorporated, 3 Terri Lane, Unit12A, Purdeys Way. Suite 10 Burlington, NJ 08016 USA. Purdeys Industrial Estate. - Page 16 APPENDIX ‘A’. DECONTAMINATION CERTIFICATE. Electrothermal . Electrothermal House. Unit12A, Purdeys Way. Purdeys Industrial Estate. Rochford. Essex. SS4 1ND. Great Britain Phone:+44(0)1702 303350 Fax:+44(0)1702 468731. E-mail: help@electrothermal.com DECONTAMINATION CLEARANCE CERTIFICATE For the Inspection, Repair or Return of Medical, Laboratory or Industrial Equipment.
-
Page 17: Spares And Accessories
11. SPARES AND ACCESSORIES 230V 115V Neon Clear AZS4329 CRM5619 Neon Amber AZS4330 CRM5620 Energy Regulator AZ9127 AZ9128 Control Knob 124721 124721 Fuse AZ9039 (F1.25A) AZ9007 (F5A) Plug and lead set (UK) CRM6902 Plug and lead set CRM6332 (Europe) Plug and lead set (USA) CRM6288 Page 17 of 20 M8015 issue 2.1... -
Page 18: Notes
12. NOTES. Page 18 of 20 M8015 issue 2.1... - Page 19 Page 19 of 20 M8015 issue 2.1...
-
Page 20: Ec Declaration Of Conformity
EMC Directive. Low Voltage Directive. A full copy of the EC Declaration / Conformity document can be obtained from the manufacture at the email address info@electrothermal.com Distributors Stamp For the America’s and Canada, contact: Electrothermal.
