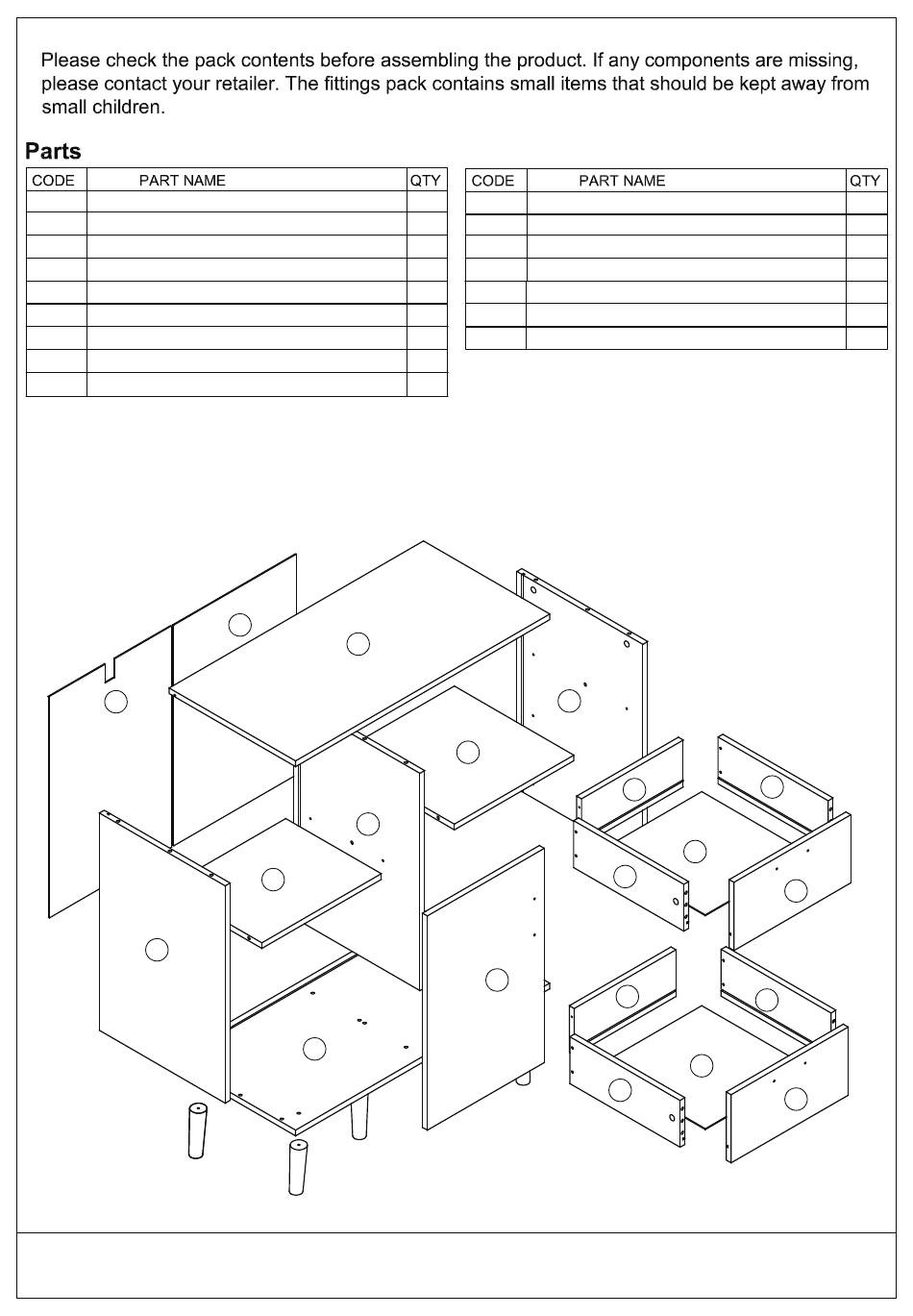

A
Side Panel (L) (15 x 389 x 580mm)
Side Panel (R) (15 x 389 x 580mm)
B
C
Center Panel (15 x 389 x 580mm)
Top Panel (15 x 390 x 785mm)
D
Bottom Panel (15 x 390 x 785mm)
E
F
Fix Panel (R) (15 x 369 x 369mm)
Fix Panel (L) (15 x 295 x 369mm)
G
H
Door Panel (15 x 361 x 572mm)
I
Drawer Front (15 x 182 x 361mm)
Y1
A
Y
D
C
G
E
Page 3 of 14
J
1
Drawer Front (15 x 182 x 361mm)
1
K
Drawer Side (L) (15 x 140 x 340mm)
L
Drawer Side (R) (15 x 140 x 340mm)
1
M
Drawer Back (15 x 140 x 314mm)
1
1
Y
Back Panel (2.5 x 378 x 589mm)
1
Y1
Back Panel (2.5 x 378 x 589mm)
1
Z
Drawer Bottom (2.5 x 334 x 323mm)
1
1
B
F
H
L
M
Z
K
M
L
Z
K
1
2
2
2
1
1
2
I
J
V1 3/19
