GFW DELTA COMPACT SIDEBOARD Assembly Instructions Manual page 13

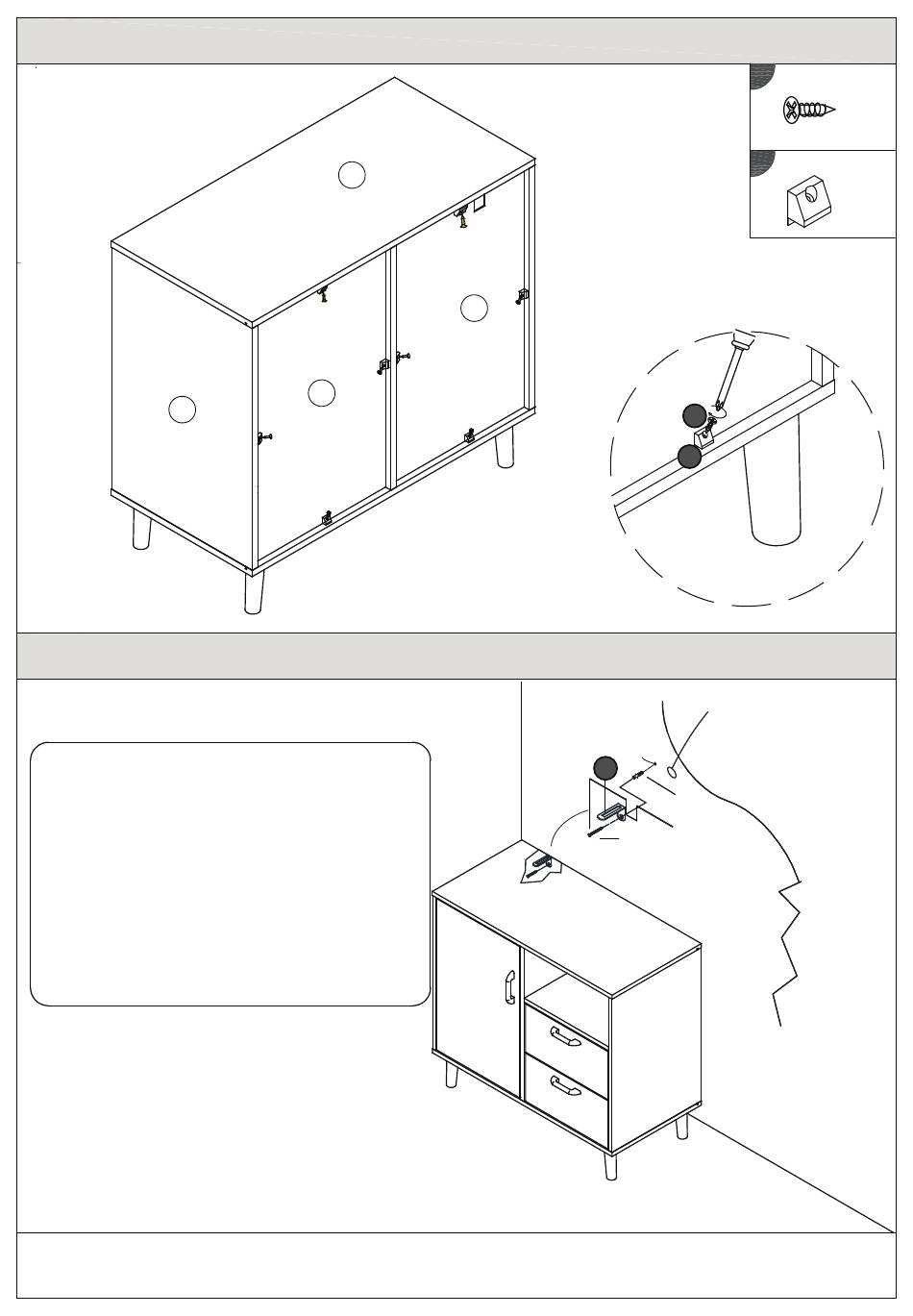

STEP 16
B
STEP 17
FITTING OF L MOUNTING BRACKET
NOTE : The wall plug and wall plug screw
not include with this product.
For hollow and stud type walls fixing devices
suitable for those type of walls must be obtained
separately.
Please ensure the fixing is safe and secure
before use and that the area to be
drilled is free from hidden wires ,water & gas pipes.
D
Y1
Y
Page 13 of 14
g
r
g
r
hole
Hole
m
Wall Plug
Wall Plug Screw
wall
8 x
8 x
V1 3/19
