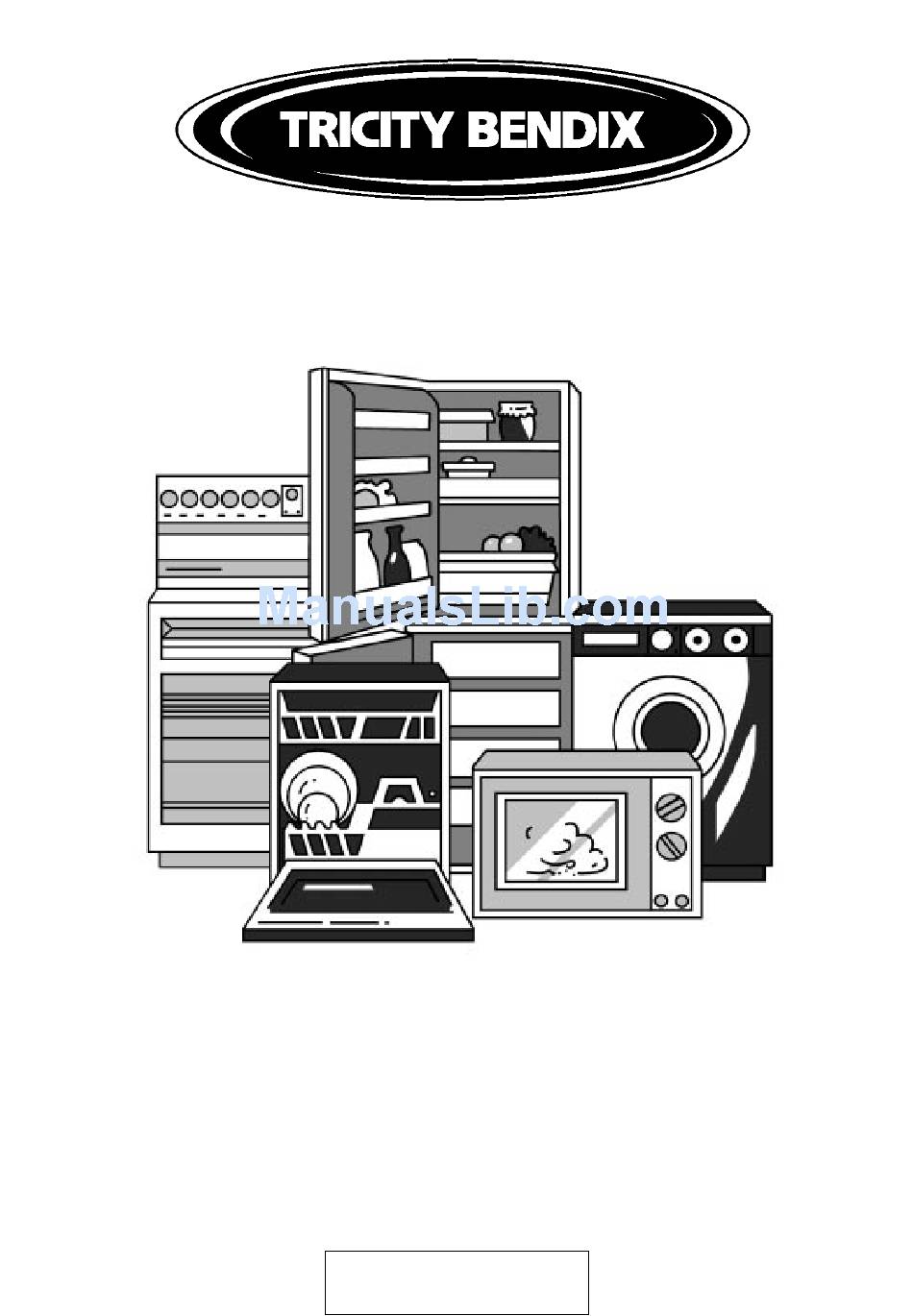

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. RE60 SS / RE60DC...
-
Page 2: Technical Details
TECHNICAL DETAILS MODEL NO. RE60 SS / RE60DC Voltage: 230/240 Volts AC 50Hz Wattage: 10.5/11.4 kW Height: 900mm Width: 600mm Depth: 598mm This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC. -
Page 3: Table Of Contents
CONTENTS Technical Details ................. 2 Contents . - Page 4 CONTENTS Defrosting ..................24 Uses of Defrost Feature .
-
Page 5: Preface
They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous cooker. -
Page 6: Safety
If a fault or crack becomes visible disconnect the cooker immediately from electricity contact your local Tricity Bendix Service Force Centre. Do not place silver foil or plastic containers on ceramic glass. After installation, please dispose of the packaging with due regard to safety and the environment, your local authority can arrange this. -
Page 7: After Use
Always use oven gloves to remove and replace food in the oven. Ensure that you support the grill pan when it is in the withdrawn or partially withdrawn position. Ensure that all vents are left unobstructed to ensure ventilation of the oven. -
Page 8: Introduction
INTRODUCTION WARNING: THIS COOKER MUST BE EARTHED RATING PLATE Record the model, product and serial numbers on the back cover from the rating plate. This is situated on the lower front frame of the cooker and can be seen upon opening the top oven door. The cooker must be protected by a suitably rated fuse or circuit breaker. -
Page 9: General Notes On Using Your Cooker
Note: Vapours from the oven vents may in time cause discolouration of wallcoverings behind the cooker. For ease of cleaning it may be preferable to tile behind the cooker. Overhanging surfaces or a cooker hood should be a minimum of 685mm above the hob. It is important to ensure that the cooker is level after installation. -
Page 10: Grill And Oven Furniture
1 grill pan handle (311468100) Note If you require an additional handle for your grill pan, this can be ordered from your local Tricity Bendix Service Centre by quoting part number 311479800\6. 1 grill pan grid (311419801) 1 straight shelf... -
Page 11: Getting To Know Your Cooker
GETTING TO KNOW YOUR COOKER THE CONTROL PANEL FEATURES Automatic Timer Fan Oven Temperature Control Top Oven Temperature Control Selector Control Hotplate Controls Fan Oven Indicator Neon Top Oven Indicator Neon... -
Page 12: The Automatic Timer
THE TIMER Please note that this is a 24 hour clock, for example 2.00 pm is shown as 1400. In the following pages we explain how to set the controls. Read through them a few times until you are familiar with the procedure. We have supplied a plastic card as a quick reference when setting the timer. - Page 13 AUTOMATIC CONTROL You can only use the automatic control for the main oven. When you use the automatic controls for the first time it's probably best to choose a time when you are at home. That way you can check to make sure you've set everything correctly and you'll feel much more confident when you are away from home in the future.
-
Page 14: The Ceramic Hob
THE CERAMIC HOB CAUTION: DO NOT USE THE COOKER IF THE CERAMIC GLASS IS DAMAGED. IF A FAULT OR CRACK BECOMES VISIBLE DURING COOKING, DISCONNECT THE COOKER IMMEDIATELY FROM THE ELECTRICITY SUPPLY AND CONTACT YOUR LOCAL SERVICE FORCE CENTRE. USING THE HOB To operate the dual hotplate turn the control knob clockwise... -
Page 15: Hot Hob Indicator
To prolong the life of hotplates:- Never use utensils with a skirt, e.g. a bucket. Never use an asbestos mat. Never leave the hotplates ON when not covered with a saucepan. Ensure that hob and saucepans are clean and dry before the start of cooking to reduce cleaning. -
Page 16: The Grill
THE GRILL USES OF THE DUAL GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. The Dual Grill on this appliance has been designed to heat up more quickly than conventional grill elements. It provides quick, direct heat and no preheating is necessary. -
Page 17: Hints And Tips
NOTE If you require an additional handle for your grill pan, this can be ordered from your local Tricity Bendix Service Centre by quoting part number 311479800\6. GRILLING CHART FOOD... -
Page 18: The Top Oven
THE TOP OVEN USES OF THE TOP OVEN The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking on one level and for small quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche. -
Page 19: Hints And Tips
HINTS AND TIPS Most cooking should be carried out using an oven shelf positioned in one of the shelf runners. Larger roasts and casseroles should normally be cooked in the main oven. However, they may be cooked on a flat shelf placed on the base of the top oven provided there is sufficient room for air circulation around the food. -
Page 20: The Fan Oven
THE MAIN FAN OVEN USES OF THE FAN OVEN The oven is heated by an element around the fan situated behind the back panel. The fan draws air from the oven and the element heats the air which circulates in the oven via the vents in the back panel. The advantages of fan oven cooking are: PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. -
Page 21: Hints And Tips
HINTS AND TIPS Arrange the shelves in the required positions before switching the oven ON. Shelves are numbered from the bottom upwards. When cooking more than one dish in the fan oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf, this will allow the heat to circulate freely for the best cooking results. -
Page 22: Oven Cooking Chart
OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperature by 10° C to suit individual preferences and requirements. FOOD Biscuits Bread Bread rolls/buns Cakes: Small & Queen Sponges Victoria Sandwich Madeira... -
Page 23: Roasting Chart
ROASTING CHART ROASTING CHART INTERNAL TEMPERATURES - Rare : 50-60°C; Medium : 60-70°C; Well done:70-80°C MEAT Beef Beef, boned Mutton and Lamb Pork and Veal Chicken Turkey and Goose Duck Pheasant Rabbit Potatoes with meat Potatoes without meat The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments may be required to allow for personal requirements and the shape and texture of the meat. -
Page 24: Defrosting
DEFROSTING USES OF DEFROST FEATURE This main oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings,cheesecakes,biscuits,scones etc. -
Page 25: Care And Cleaning
CARE AND CLEANING BEFORE CLEANING ALWAYS ALLOW THE COOLING FAN TO COOL THE APPLIANCE DOWN SWITCHING OFF AT THE ELECTRICITY SUPPLY. CLEANING MATERIALS Before using any cleaning materials on your cooker, check that they are suitable and that their use is recommended by the manufacturer. -
Page 26: Hints And Tips
HINTS AND TIPS TO REDUCE HOB SOILAGE: Make sure the bottom of the saucepan and the cooking area are clean and dry before cooking begins. Ensure saucepans accommodate food to avoid boil overs. If possible, wipe up spills and splatters as they occur, but take care to avoid steam burns. -
Page 27: Cleaning Inside The Oven And Grill Compartments
CLEANING INSIDE THE OVEN AND GRILL COMPARTMENTS The sides and back of the main oven and top oven compartments are coated with Stayclean enamel surfaces. The Stayclean surfaces inside the ovens should not be cleaned manually. See below 'Care of Stayclean Surfaces'. -
Page 28: Replacing An Oven Light Bulb
REPLACING THE OVEN LIGHT BULB The type of bulb required is a 300C 25 watt small Edison Screw. Part number 572 491 5431-00/1. (Available through Tricity Bendix service centres). CAUTION: Disconnect the appliance from the electricity supply before replacing the bulb. -
Page 29: Something Not Working
SOMETHING NOT WORKING? We strongly recommend that you carry out the following checks on your cooker before calling a Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a service call. If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the cooker is under guarantee. -
Page 30: Service And Spare Parts
Dublin 12 Telephone: 01 4090752 CUSTOMER CARE DEPARTMENT For general enquiries concerning your Tricity Bendix appliance, or further information on Tricity Bendix products, you are invited to contact our Customer Care Department by letter or telephone as follows: Customer Care Department... -
Page 31: Customer Service Centres
TRICITY BENDIX SERVICE FORCE 0870 5 929929 To contact your local Tricity Bendix Service Centre telephone CHANNEL ISLANDS NORTH EAST SCOTLAND NORTHERN IRELAND NORTH WEST WALES... - Page 32 TRICITY BENDIX SERVICE FORCE 0870 5 929929 To contact your local Tricity Bendix Service Centre telephone LONDON & EAST ANGLIA MIDLANDS SOUTH EAST (M23) SOUTH WEST (M57) &...
-
Page 33: Guarantee Conditions
Standard guarantee conditions We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate. - Page 34 RE60 SS / RE60DC - 311530002...
- Page 36 This handbook is accurate at the date of printing, but will be superseded and should be disregarded if specifications or appearance are changed. TRICITY BENDIX,55 - 77 HIGH STREET, SLOUGH, BERKSHIRE, SL1 1DZ MODEL NO. RE60DC\SS ©...
