Summary of Contents for LG VK5320GHTNY

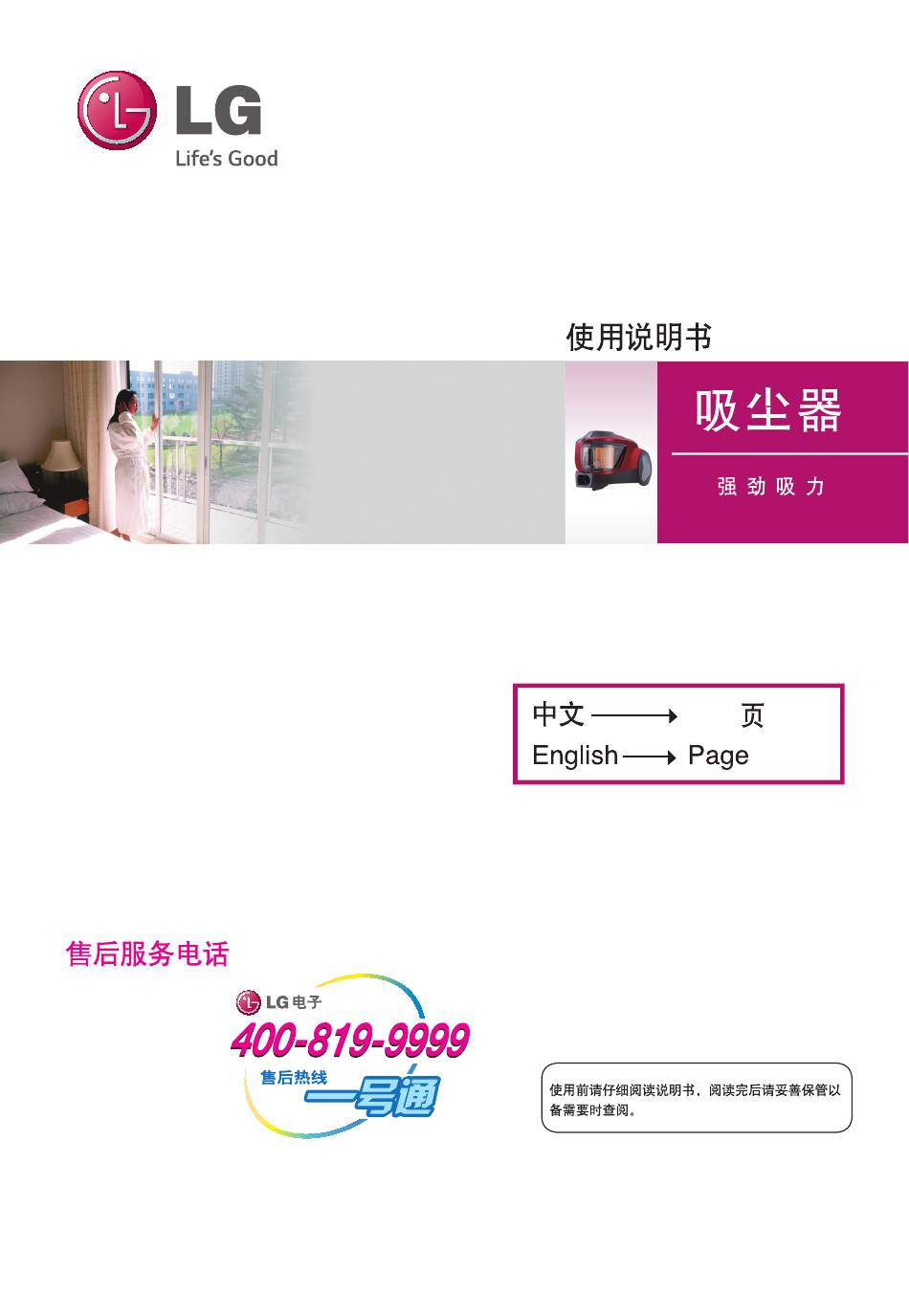

- Page 1 VK5320GHTNY 1-14 15-27...
- Page 2 8-10 VK5320GHTNY 220V~ 50Hz 1800W 2000W 5.2Kg 1.5L 282mm×435mm ×258mm GB17625.1-2012...
- Page 15 How to separate, clean the motor protection filter How to assemble the motor protection filter How to separate, clean and assemble exhaust filter Disassembling Cleansing Assembling If you have a problem 25~26 Packing List VK5320GHTNY 220V~ 50Hz 1800W 2000W 5.2Kg Dust Capacity: 1.5L 282mm×435mm ×258mm GB17625.1-2012...
- Page 18 Flexible Hose Control button Cord winding Telescopic tube Button Hard Floor Dusting Upholstery Brush Nozzle Nozzle...
- Page 19 Using and cleaning method of all the accessory nozzles Using Upholstery Nozzle & Dust Brush & Crevice Tool Using method Upholstery nozzle can be Dust brush can be used to Crevice tool can be used used to clean upholstery, clean the picture frame, to clean the gap of sofa mattresses, etc.
- Page 20 Using and cleaning the Sani Punch Nozzle Turn the button 2~3 times when the dust is filled in the dustbin while cleaning.(the dust can be cleaned up) Bottom plate Punch bar...
- Page 21 How to separate, clean and assemble the dust tank and the motor protection filter How to separate, clean the dust tank After turning off the appliance and unplug it, grasp Open the dust cover. the handle of the tank and then press the tank separation button.
- Page 22 How to separate, clean and assemble the dust tank and the motor protection filter Assemble the dust tank and the body of Push the front end of top cover till the locker Cleaner till the bottom locker clicks. clicks. How to separate, clean the motor protection filter Take out the motor protection filter from the appliance along the arrow direction.
- Page 23 How to separate, clean and assemble the dust tank and the motor protection filter How to assemble the motor protection filter Put the filter into the case. Cover the filter. Fix the assembled filter. Assemble the dust tank. Caution when you move the cleaner Tank handle Carrier handle Don’t grasp the tank handle when you are moving the vacuum cleaner.
- Page 24 How to separate, clean and assemble exhaust filter Disassembling The exhaust filter should be cleaned at least once half a year. Allow exhaust filter to dry in a shaded location for a dry. Button of the exhaust filter The exhaust filter Shake off the exhaust filter.
- Page 27 Crevice tool Hard Floor Nozzle Sani Punch...
- Page 28 MFL67854603...
