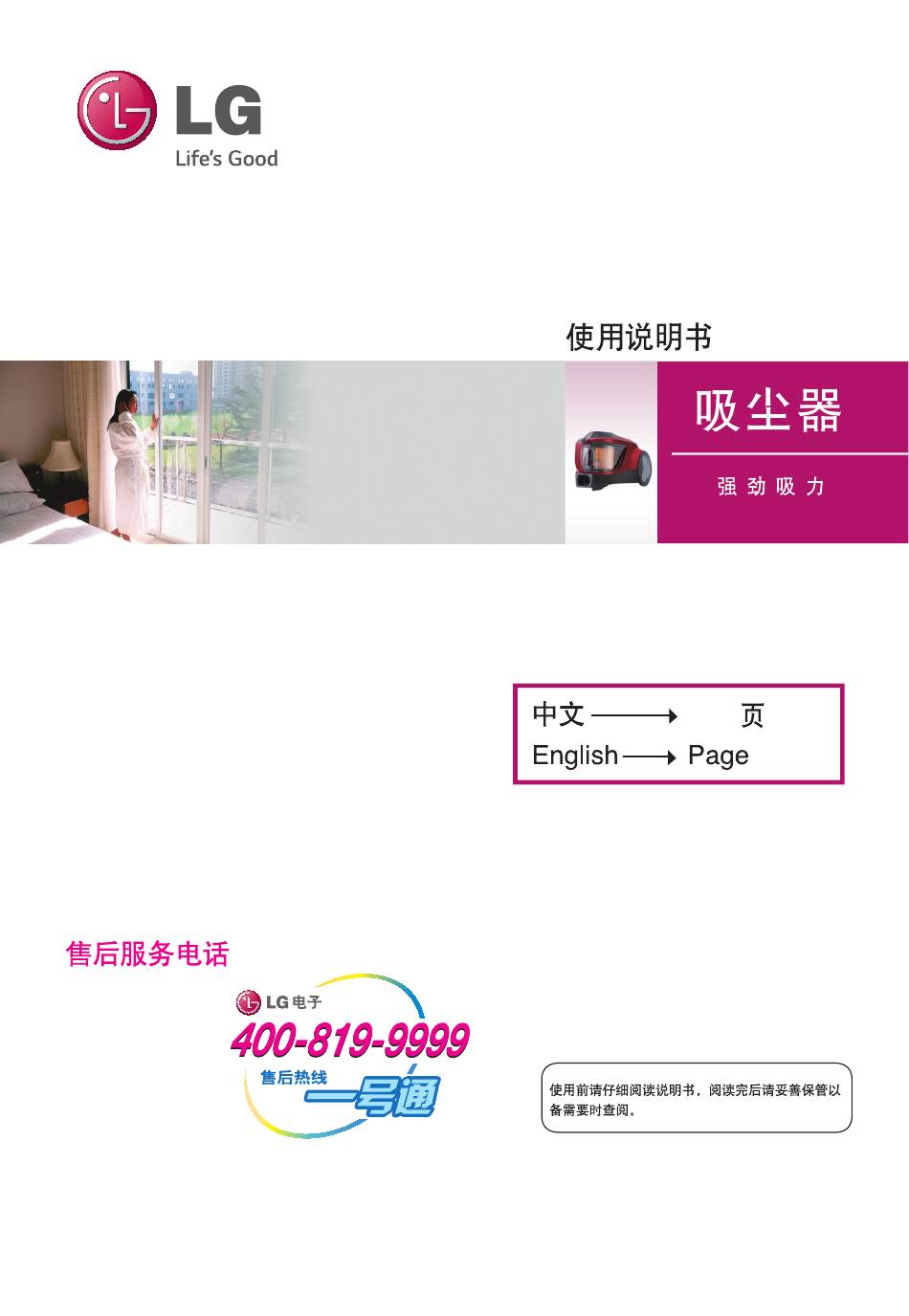

- Page 1 VK5320GHTMY 1-16 17-31...
- Page 2 10-12 VK5320GHTMY 220V~ 50Hz 1800W 2000W 5.2Kg 1.5L 282mm×435mm ×258mm GB17625.1-2012...
- Page 17 How to separate, clean the motor protection filter How to assemble the motor protection filter How to separate, clean and assemble exhaust filter Disassembling Cleansing Assembling If you have a problem 29~30 Packing List VK5320GHTMY 220V~ 50Hz 1800W 2000W 5.2Kg Dust Capacity: 1.5L 282mm×435mm ×258mm GB17625.1-2012...
- Page 20 Flexible Hose Control button Cord winding Telescopic tube Button Dusting Upholstery Brush Nozzle...
- Page 21 Using and cleaning method of all the accessory nozzles Using Upholstery Nozzle & Dust Brush & Crevice Tool Use it as shown in the diagram Dust brush can be used to clean the picture frame,furniture brim, book and other irregular surface. Upholstery nozzle can be used to clean upholstery,mattresses, etc.
- Page 22 Using and cleaning the Sani Punch Nozzle Turn the button 2~3 times when the dust is filled in the dustbin while cleaning.(the dust can be cleaned up) Bottom plate Punch bar...
- Page 23 Using the Mop and Mop Nozzle Using the Mop When using the mop nozzle, please dry it first. Always using special mop of LG. Attach the mop to the bottom of the nozzle with the white surface upturned. When drying the mop in washing machine, set it to the weakest mode.
- Page 24 Using the Mop and Mop Nozzle Using the Mop Disconnecting method 1.After cleaning press the treadle of mop board to separate the mop and mop board. Then you can take off the dirty mop. Cleaning method 1.After cleaning , if the suction inlet blocked by scraps of paper, toothpicks or other foreign matter, please open the transparent cover then clean the nozzle.
- Page 25 How to separate, clean and assemble the dust tank and the motor protection filter How to separate, clean the dust tank After turning off the appliance and unplug it, grasp Open the dust cover. the handle of the tank and then press the tank separation button.
- Page 26 How to separate, clean and assemble the dust tank and the motor protection filter Assemble the dust tank and the body of Push the front end of top cover till the locker Cleaner till the bottom locker clicks. clicks. How to separate, clean the motor protection filter Take out the motor protection filter from the appliance along the arrow direction.
- Page 27 How to separate, clean and assemble the dust tank and the motor protection filter How to assemble the motor protection filter Put the filter into the case. Cover the filter. Fix the assembled filter. Assemble the dust tank. Caution when you move the cleaner Tank handle Carrier handle Don’t grasp the tank handle when you are moving the vacuum cleaner.
- Page 28 How to separate, clean and assemble exhaust filter Disassembling The exhaust filter should be cleaned at least once half a year. Allow exhaust filter to dry in a shaded location for a dry. Button of the exhaust filter The exhaust filter Shake off the exhaust filter.
- Page 31 Crevice tool Sani Punch Mop Nozzle...
- Page 32 MFL67854602...
