SIGNET PRO RANGE TECHNICAL SPECIFICATION
Wall-Mount Model Numbers
PRO5/SW, PRO7/SW, PRO11/SW, PRO5/DW, PRO7/DW,
Free-Standing Model Numbers
PRO5/SD, PRO7/SD, PRO11/SD, PRO5/DD, PRO7/DD,
POWER
230V ∿ 50Hz (Free-standing model is supplied with IEC 320 fused mains lead; Wall-mount
Supply Voltage:
model is permanently connected to mains)
Power Consumption: 100W / 200W / 400W (model dependent)
INPUTS
Input impedance: 1k + or – input to ground.
Line In:
Sensitivity: -20dBU typical.
Input impedance: 1k + or – input to ground.
Microphone: Sensitivity: -42dBU typical.
Phantom power for electret microphones: 12V selectable (on/off).
Input impedance: >10k.
Outreach: Sensitivity: 0dBU typical.
Outreach power: 24V d.c. nom. is available via the amplifier's outreach connector (100mA max.)
Optical (model dependent): TOSLink digital receiver. Up to 24 bit, 96kHz sampling.
OUTPUTS
Type: True current mode. Loop output voltage: 14V.
Single Loop drive current @ 1 ohm: 4.75A (PRO5/SD, PRO5/SW); 7.5A (PRO7/SD, PRO7/SW); 11A
Loop 1 &
(PRO11/SD, PRO11/SW).
Loop 2 (model dependent):
Dual Loop drive current @ 1 ohm: 2 x 3.25A (PRO5/DD, PRO5/DW); 2 x 5A (PRO7/DD, PRO7/DW);
2 x 7.5A (PRO11/DD, PRO11/DW).
Line Out: 775mV output
Fault Relay: Single pole double throw (SPDT): NC, Common, NO.
Phase Shift (model dependent): 2 x 90 0 phase shifted. Selectable (on/off).
Up to 10dB / octave design counteracts frequency dependent absorption by metal in the
Metal Compensation:
installation over a bandwidth of approximately 5kHz.
COVERAGE
Maximum Coverage Area:
2
200m , i.e. rooms up to approx. 14m x 14m (PRO5/DD, PRO5/DW).
500m 2 , , i.e. rooms up to approx. 22m x 22m (PRO7/DD, PRO7/DW).
1000m 2 , i.e. rooms up to approx. 31m x 31m (PRO11/DD, PRO11/DW).
Loop impedance: 0.5 to 2 ohm.
PERFORMANCE
Frequency Response (-3dB): 100Hz to 5kHz; Distortion: Less than 1 % typical; Signal to Noise Ratio: Better than –65dB any
input; AGC Range (3dB change in output voltage current): 10dB. AGC ratio: 20:1.
SUPPLEMENTARY
Sensitivity Level Controls Line Input, Microphone, Phantom, Outreach, Optical (model dependent), Metal Comp, Loop
(lockable via display): Drive 1, Loop Drive 2 (model dependent), Phase Shift (model dependent), Brightness.
Display & Controls: 256 x 64 pixel OLED display with 4 membrane control buttons.
• Microphone (3-pin XLR Type - Free-standing model; 3-way pluggable connector - Wall-mount model).
• Line In (3-pin XLR Type - Free-standing model; 3-way connector - Wall-mount model).
• Loop (2 or 4 way binding post - Free-standing model; 2 or 4-way connector - Wall-mount model).
• Outreach (4-way pluggable connector).
Connectors: • Line Out (3-way pluggable connector).
• Fault Relay (3-way pluggable connector).
• Optical (model dependent).
• 230Va.c. connector (Mains lead supplied for Free-standing model; Fixed mains connection
for Wall-mount model).
Free-standing models: 67mm (H) x 218mm (W) x 280mm (D)
Overall Dims. (H x W x D):
Wall-mount models: 298mm (H) x 308mm (W) x 74mm (D)
Weight: Free-standing models: 2.38kg; Wall-mount models: 3.35kg
Panel Construction: Mild steel zintec, 1mm thick, black powder coated IP Rating (EN 60529): IP40
0 0
Operating Temperature: 0 C to 40 C
Manufacturer: SigNET AC Ltd, 6 Tower Road, Washington, Tyne & Wear NE37 2SH. www.signet-ac.co.uk.
E&OE. No responsibility can be accepted by the manufacturer or distributors of these power supplies for any misinterpretation of this instruction, or for the
compliance of the system as a whole. The manufacturers policy is one of continuous improvement and we reserve the right to make changes to product
specifications at our discretion and without prior notice.
16 of 16 SigNET PRO Range Instructions
PRO11/DW.
PRO11/DD.
Maximum Humidity: 95% non-condensing
Approved Document No. DAU0000105 Rev 2
SIGNET PRO RANGE HEARING LOOP AMPLIFIERS
Part Numbers:
PRO5/SD, PRO5/SW, PRO7/SD, PRO7/SW, PRO11/SD, PRO11/SW,
PRO5/DD, PRO5/DW, PRO7/DD, PRO7/DW, PRO11/DD, PRO11/DW

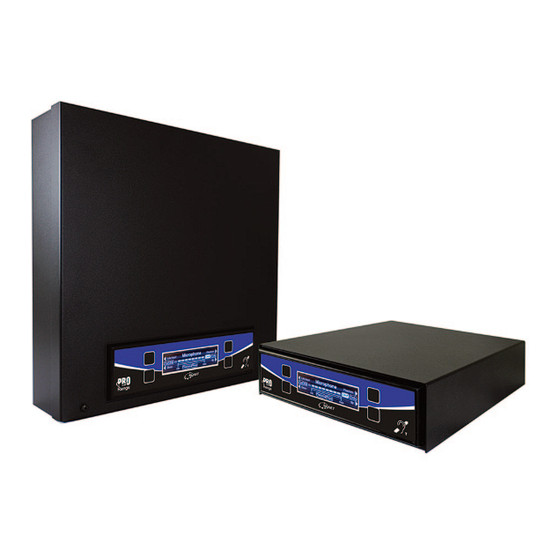

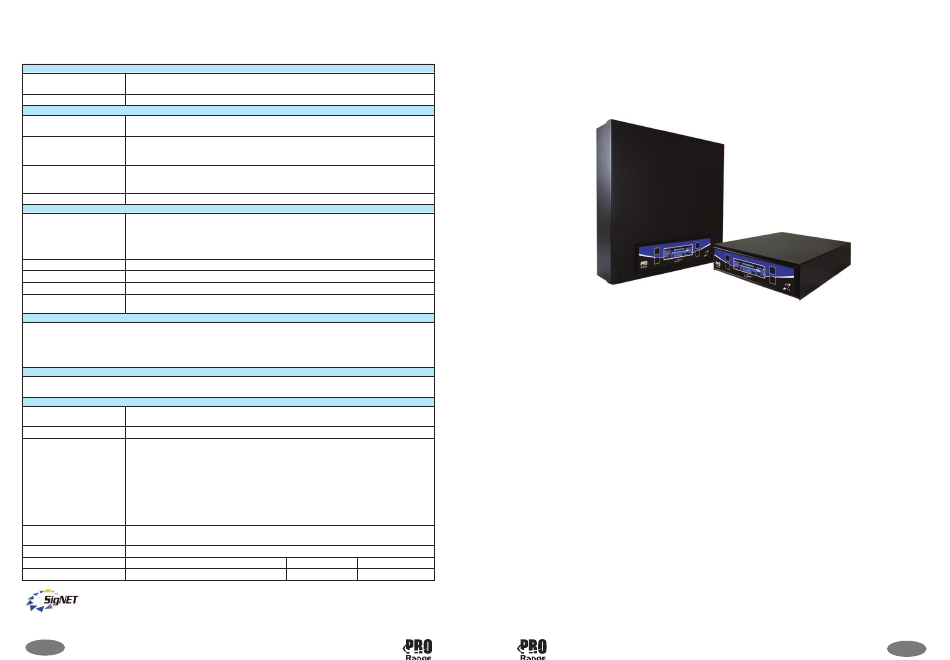

SigNET PRO
Wall-Mount
Model
INSTALLATION & OPERATOR INSTRUCTIONS
THIS EQUIPMENT MUST BE INSTALLED AND MAINTAINED BY A SUITABLY SKILLED
AND TECHNICALLY COMPETENT PERSON.
The SigNET PRO Range comprises of constant current, single and dual induction hearing loop
amplifiers, each with a graphical display. The dual loop amplifiers have a built-in phase shifter,
designed for 'phased array' induction loop systems. They may be free-standing, or wall-
mounted and are designed to cover areas up to 200m
