‡ SIGNET 2760 DryLoc™ pH/ORP Preamplifier
3-2760.090
3-2760.090 (A-3/04) English
SAFETY INSTRUCTIONS
1. Depressurize and vent system prior to installation or removal.
2. Confirm chemical compatibility before use.
3. Do not exceed maximum temperature/pressure specifications.
4. Wear safety goggles or faceshield during installation/service.
5. Do not alter product construction.
6. When using chemicals or solvents care should be taken and appropriate eye,
face, hand, body, and/or respiratory protection should be used.
Description
The +GF+ SIGNET 2760 pH/ORP Preamplifiers with DryLoc™ connectors are part of George Fischer Signet's growing arsenal of
sensors for industrial fluid measurement and control.
The 2760-1 and -2 Preampliers connects to three different families of pH and ORP electrodes to provide a stable and relaible signal
input to traditional +GF+ SIGNET instruments.
The 2760-3 and -4 models use the same package to link the same electrodes to third-party equipment that read a traditional millivolt
signal for pH measurement without temperature compensation or amplification.
Technical Data
General
Compatible Electrodes:
Response Time (includes response time of electrodes):
• pH:
• ORP:
• Temperature, t:
Electrical (2760-1, -2 Preamplifiers)
Accuracy:
Input Impedance, Z:
Supply Voltage:
Environmental
Enclosure Rating: NEMA 6P/IP68
with electrode and watertight conduit and/or
extension pipe connected
Wetted Materials:
Cable:
Maximum cable:
Shipping Weight:
Operating Temperature:
Storage Temperature:
Relative Humidity:
Standards and Approvals
• CE
• Manufactured under ISO 9001:2000 for Quality and ISO
14001:1996 for Environmental Management
+GF+ SIGNET DryLoc
pH and ORP Electrodes
<6 s for 95% of change
application dependent
w/2764, 2774 series: 20 s
w/2754 : 140 s
w/2756 196 s
±2 mV @ 25°C (77°F)
Ω
>10 11
6 to 10 VDC
CPVC
4.6m/15 ft., 3-cond shielded, 22AWG
122 m (400 ft.)
0.64 kg (1.41 lb)
0°C to 85°C (32°F to 185°F)
-20°C to 85°C (-4°F to 185°F)
0 to 95%, non-condensing
(without electrode connected)
Main Contents
Previous View

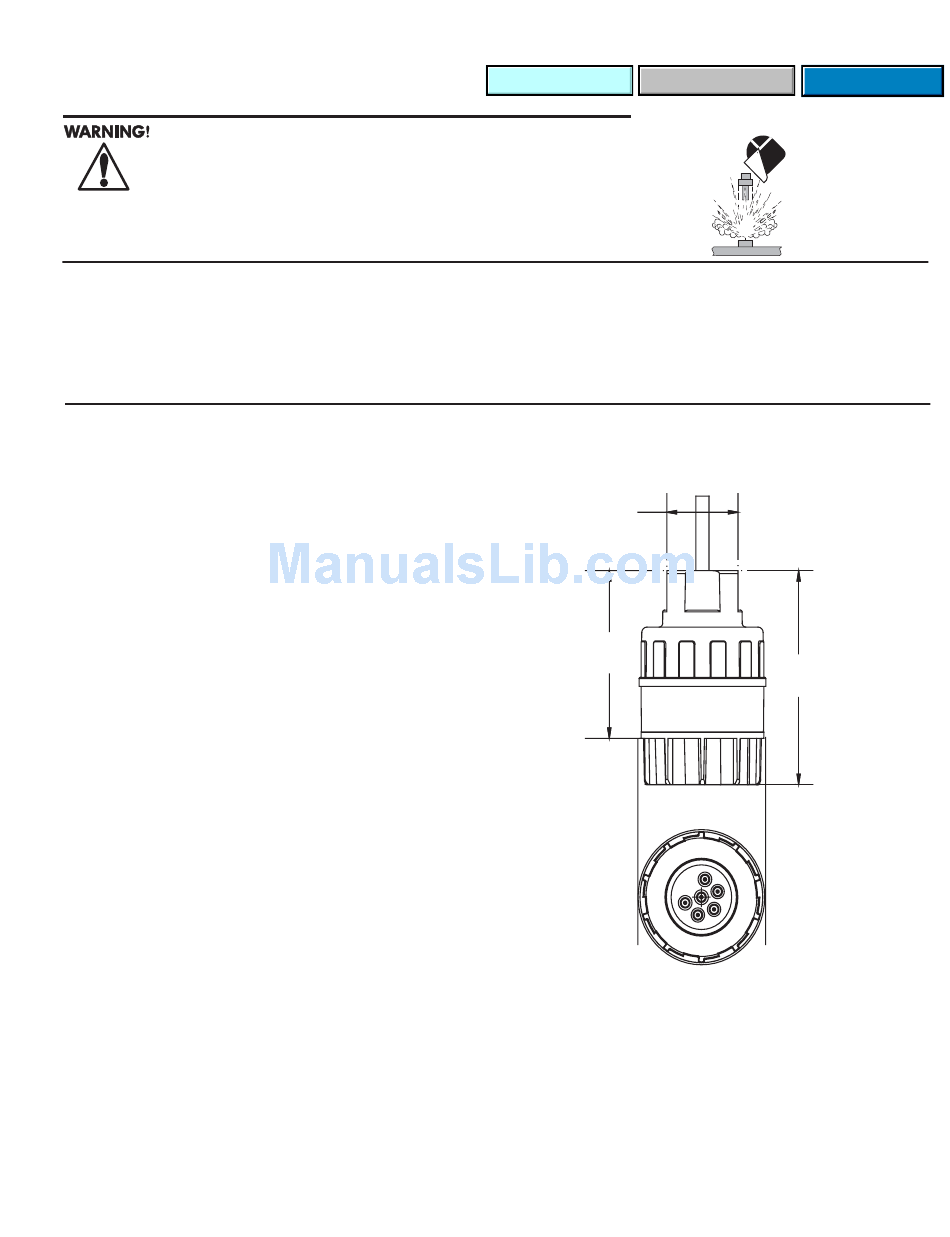

Dimensions
31.75 mm
(1.25 in.)
70.1 mm
(2.76 in.)
56.6mm
(2.23 in.)
Bottom View showing
DryLoc™ connectors
pH/ORP Menu
89.4 mm
(3.52 in.)
