USE

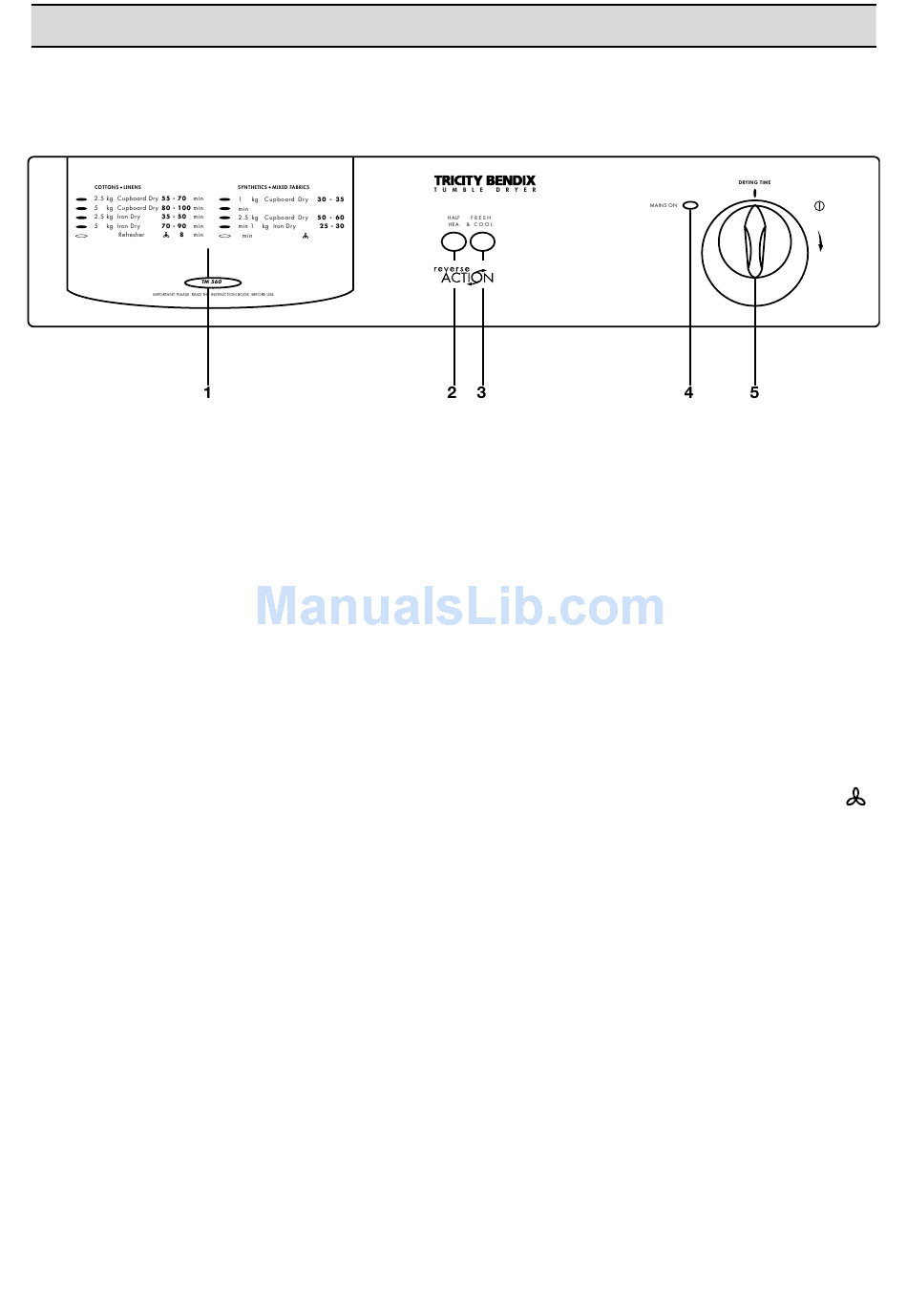

Control panel

USE OF CONTROLS
1 Programme Chart
This will help you to select the correct time for drying.
2 Half Heat Button
Press this button to reduce the temperature when dry-
ing particularly delicate cotton or linen items.
In this case you should select a longer drying time.
On the programmes for synthetics the temperature is
automatically reduced.
Therefore it is not necessary to depress this button.
3 Fresh & Cool Button
By depressing this button the heat is cut off. This is
particularly useful to freshen the laundry (e.g. to
remove a persistent odour of moth-balls).
4 Mains-On Light
This lights up when the machine starts operating and
goes out at the end of the programme.
5 Drying Time Selector Dial
The selector dial incorporates two drying cycles, one
of up to 120 minutes at a high temperature (dark
green section) for cotton and linen, and one of up to
80 minutes at a low temperature (light green section)
for synthetic fabrics.
To set the machine to the selected time, turn the dial
clockwise until the time you want coincides exactly
with the pointer.
NEVER attempt to turn the dial in an anticlockwise
direction.
When selecting the drying time, you should remember
that it includes a 8 minute cooling phase (position
on the dial).
This phase should not be shortened, stopped or
avoided, as this could cause skin burns or damages
to the laundry.
Additional drying
If at the end of the programme the laundry is still too
damp, set the dial for a further period of drying
(remembering to take into account the cooling period).
7
