Redback A 4116 Operating Manual

OVERVIEW

The Redback A 4116 stereo amplifier is super compact and ideally suited to smaller PA system installations.
Designed around the ST TDA7492 IC it offers virtual "destruction proof" operation even under sever misuse such as over
voltage, over temperature, over load and short circuit speaker line conditions. The unit will automatically shut down when
overloaded and will restore to normal operation when the fault condition is removed.
The A 4116 can be used as a stand alone/ bench mount amplifier or can be rack mounted when used in conjunction with
optional hardware (H 4990).

FEATURES

• 15W RMS Output into an 8Ω load • 1 Stereo RCA input • 1 Music input (3.5mm)
• 1 Line/Sub output • 4-16Ω output • 24V DC operation

CONNECTIONS

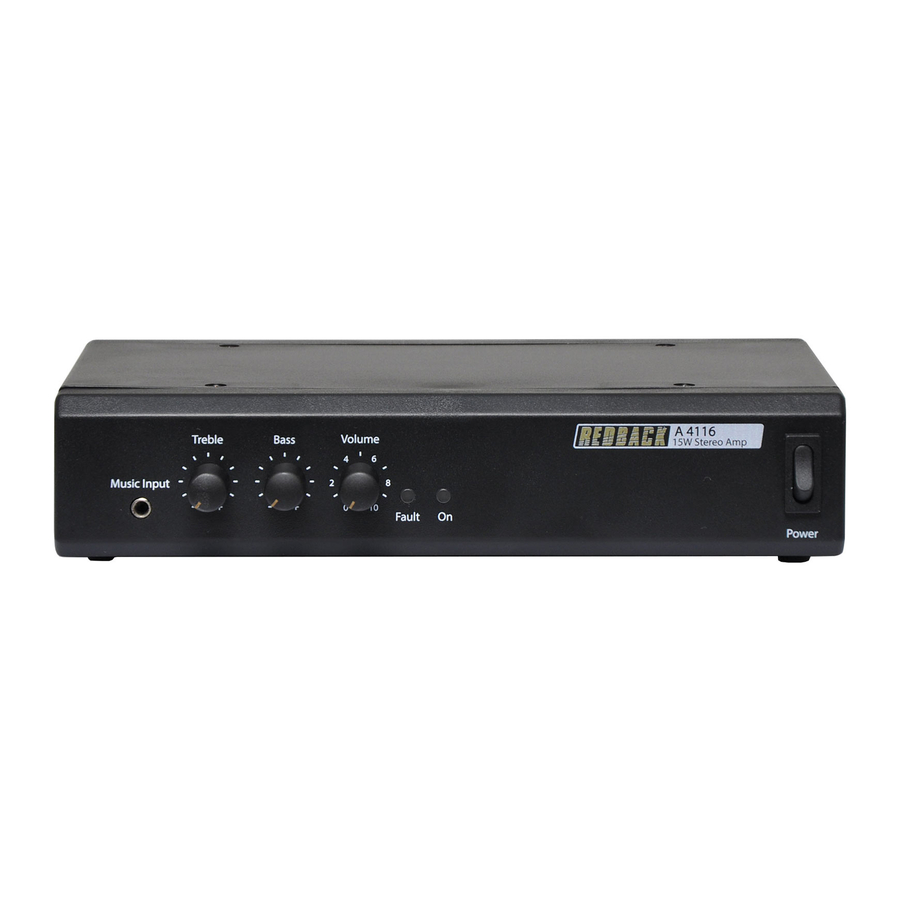

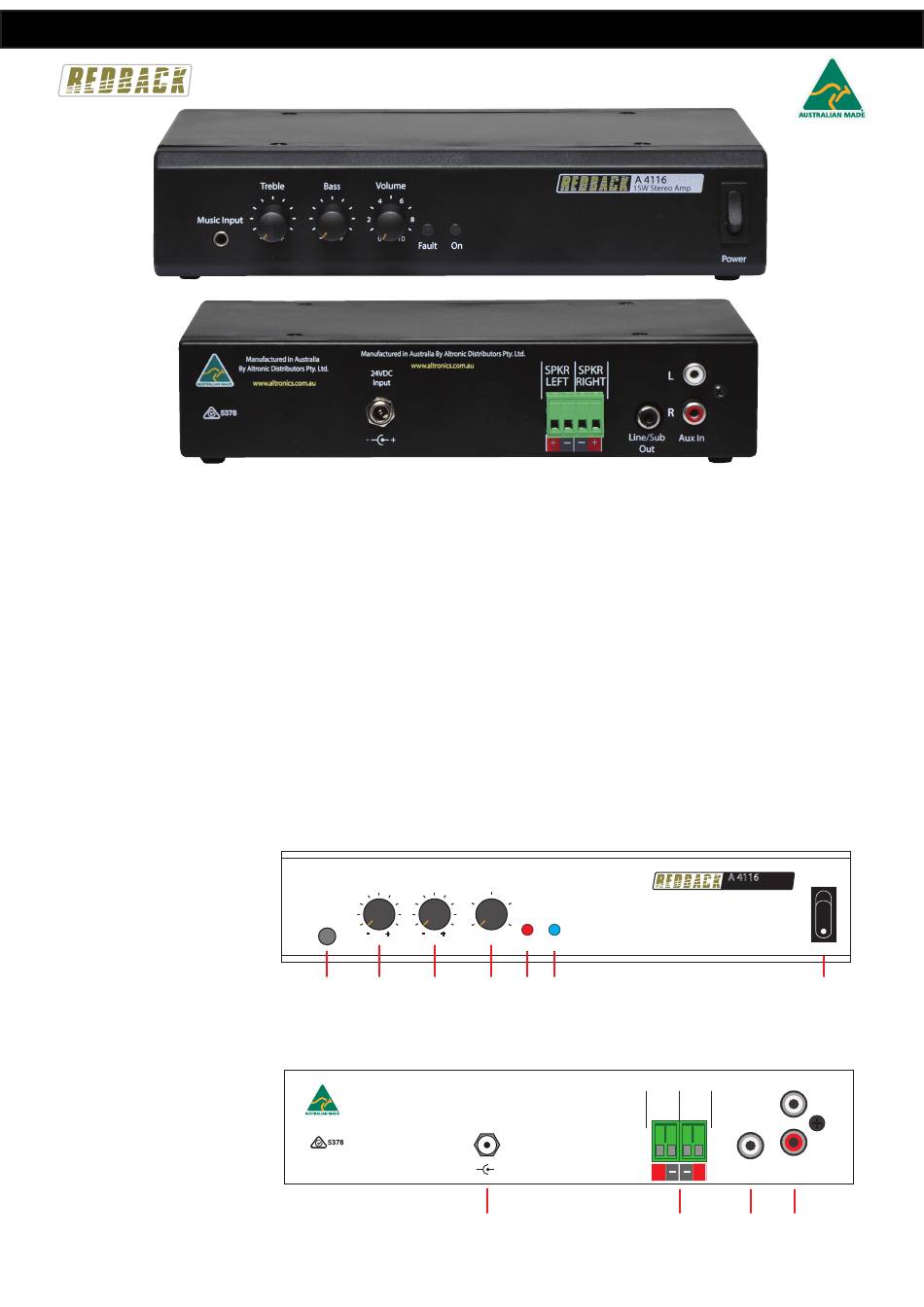

Figure 1: Front Panel Layout
1) 3.5mm Input
2) Treble Control
3) Bass Control
4) Volume Control
5) Fault Indicator
6) Power Indicator
7) Power Switch
Figure 2: Rear Panel Layout
1) 24V DC Power Input
2) Speaker Connection
3) Line/Sub Output
4) Auxilliary Input
Redback® A 4116 15W Stereo Amplifier
Treble Bass Volume
4
2
Music Input
- + - +
0
1 2 3
Manufactured in Australia
By Altronic Distributors Pty. Ltd.
24VDC
Input
www.altronics.com.au
-
Operating Manual
6
8
10
On
Fault
4 5 6
SPKR
LEFT
+ +
1
User manual revision number: 1.0 015/08/2019
