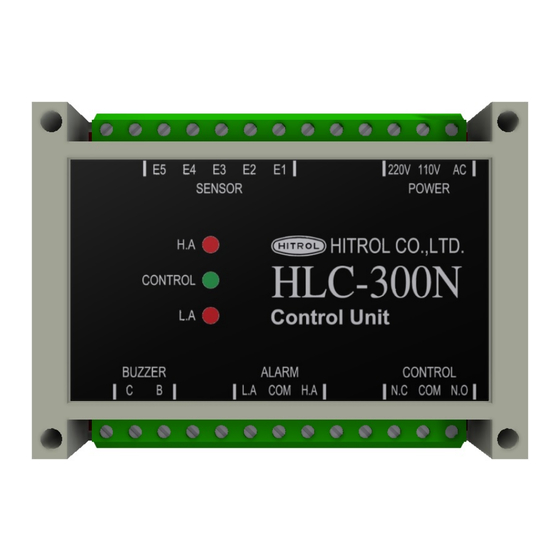

HITROL HLC-300N Instruction Manual

Level controller & alarm unit
Hide thumbs Also See for HLC-300N:
Table of Contents

Advertisement

Quick Links

Download this manual
HLC-300N
HITROL CO., LTD.
HEAD OFFICE.FACTORY.R&D INSTITUDE
HITROL CO.,LTD. 141, Palhakgol-gil, Jori-eup
Paju-si, Gyeonggi-do, Korea
TEL. : (00)+82-31-950-9700
FAX. : (00)+82-31-943-5600
www.hitrol.com
INSTRUCTION MANUAL
Level Controller & Alarm Unit
HLC-300N
Doc. no. : HLC300N_IM_Eng_Rev. 1
Issue date : 2020. 04
HITROL CO.,LTD.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HLC-300N and is the answer not in the manual?

Questions and answers

Related Manuals for HITROL HLC-300N

Summary of Contents for HITROL HLC-300N

  • Page 1 HLC-300N HITROL CO., LTD. HEAD OFFICE.FACTORY.R&D INSTITUDE HITROL CO.,LTD. 141, Palhakgol-gil, Jori-eup Paju-si, Gyeonggi-do, Korea TEL. : (00)+82-31-950-9700 FAX. : (00)+82-31-943-5600 www.hitrol.com INSTRUCTION MANUAL Level Controller & Alarm Unit HLC-300N Doc. no. : HLC300N_IM_Eng_Rev. 1 Issue date : 2020. 04...

  • Page 2: Table Of Contents

    HLC-300N Table of Contents Marking · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 7 Overview · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3 Warranty and Contact·...

  • Page 3: Overview

    HLC-300N Overview HLC-300N is a level control and alarm unit to be combined with a level switch (HE, HQ, HR Series) for storage tank, detecting of high and/or low level in the tank. Using the relay contact, it can be used for operating of automatic filling or discharging control and alarm, and can be installed inside the control panel.

  • Page 4: Dimension

    HLC-300N Dimension Unit : mm ※ Actual Product may have a tolerance slightly. Specification Model HLC-300N Mounting Panel Inside (DIN Rail or Bolting) Ambient Temperature -20℃ ~ +60℃ Power Source AC 110 / 220V @ 50/60Hz Standby Power consumption AC110V @ 1.14W / AC220V @ 1.1W Active Power Consumption AC110V @ 6.2W / AC220V @ 7W...

  • Page 5: Wiring

    HLC-300N Wiring ALARM (BUZZER) CONTROL ALARM (BUZER) Control & Alarm H. A DRAIN PUMP L. A Led Color Green Input Output H.A, COM (C, B) NO, COM NC, COM L.A, COM (C, B) Installation ■ When fixing with bolt, it is recommended to fasten the washer to prevent loosening.

  • Page 6: Safety And Environment

    HLC-300N ■ Precautions for Use Safety and Do not disconnect the cable during use. Environment Do not apply high impact to the product. ■ Wiring Precautions Wiring must be done to the terminal that matches the wiring position. (Please refer to the wiring method) ■...

  • Page 7: Marking

    You can request A/S at our website or by contacting our headquarters. ■ Headquarters ․ Factory ․ Laboratory Contact Number ADRESS: HITROL CO., LTD 141, Palhakgol-gil, Jori-eup, Paju-si, Gyeonggi-do, Korea T E L : 031-950-9700 (Headquarters & A/S) F A X : 031-943-5600 (Headquarters & A/S) INTERNET : http://www.hitrol.com...
