Sea Ray 290 Sundancer Specific Information Manual

Hide thumbs Also See for 290 Sundancer:
Table of Contents

Advertisement

Quick Links

Specific
Information
Manual
290 Sundancer
Manual Part Number: MRP 1902273

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 290 Sundancer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sea Ray 290 Sundancer

Summary of Contents for Sea Ray 290 Sundancer

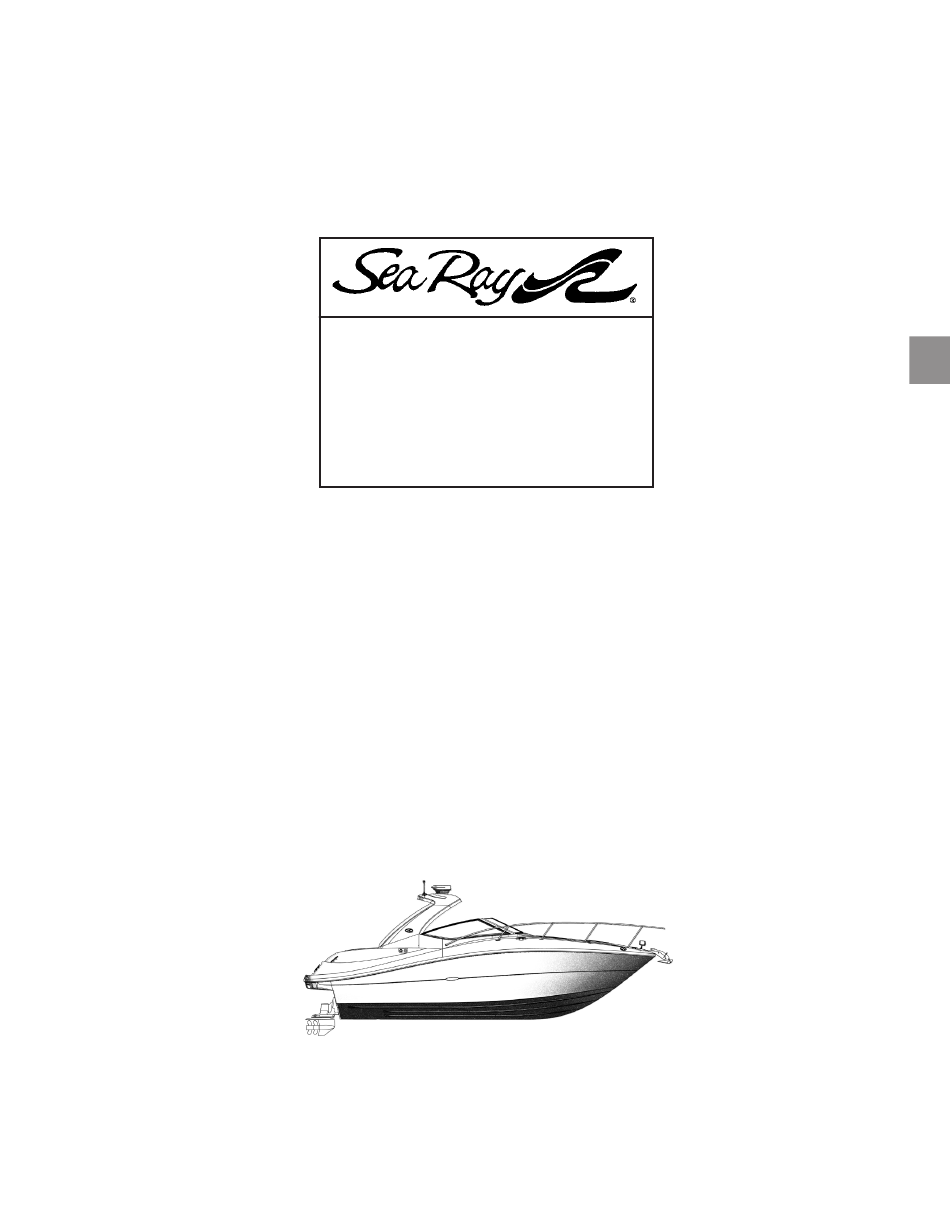

  • Page 1 Specific Information Manual 290 Sundancer Manual Part Number: MRP 1902273...

  • Page 3: Table Of Contents

    16. Canvas ..............15 17. Electrical Schematic ..........15 Information in this publication is based upon the latest product specifications available at printing. Sea Ray ® Boats, Inc. reserves the right to make changes at any time, without notice, in the colors, equipment, specifications, materials and prices of all models, or to discontinue models.
  • Page 4 THIS PAGE INTENTIONALLY LEFT BLANK 290 Sundancer Manual Part Number: MRP 1902273...

  • Page 5: Load Capacity

    WARNING Wear slip resistant footwear secured to your feet and Rear facing transom seats MUST NOT be used while hold on to rails or boat structure. engine is running or boat is moving. Manual Part Number: MRP 1902273 290 Sundancer...

  • Page 6: Safety Label Locations

    290 S UNDANCER WNERS ANUAL 3. S AFETY ABEL OCATIONS AFETY ABEL OCATIONS . 2.1) Manual Part Number: MRP 1902273 290 Sundancer...
  • Page 7 Get fresh air if anyone shows signs of carbon monoxide poisoning. Get fresh air if carbon monoxide detector alarm sounds. Carbon monoxide detector must be functioning at all times. MRP # 1812911 Manual Part Number: MRP 1902273 290 Sundancer...
  • Page 8 fish or fish parts, dishwa- MATERIALS THAT FLOAT and does not include drainage ter, and gray water. from toilets, urinals, hospitals, 12 TO 25 MILES and cargo spaces. PLASTICS LOCATED ON INSIDE OF WET BAR CABINET DOOR Manual Part Number: MRP 1902273 290 Sundancer...

  • Page 9: Basic Boat Dimensions And Clearances

    4,195 kg. Fuel Capacity ......... 125 gal. 473.2 liters Usable Fuel ........113 gal. 425.9 liters Water Capacity ......28 gal. 106.0 liters Holding Tank ........28 gal. 106.0 liters Dead Rise ........21° Manual Part Number: MRP 1902273 290 Sundancer...

  • Page 10: Function And Location Of Through-Hull Cutouts

    AC SYSTEM CABIN ENTRY GENERATOR DISCHARGE STEP DRAIN EXHAUST (OPT.) (OPT.) ENGINE AC SYSTEM INTAKE (OPT.) WATER ENGINE ARBOARD RAIN (OPT.) RAW WATER TRANSDUCER (Fig. 6.3) (OPT.) HEAD DISCHARGE GENERATOR (OPT) INTAKE (OPT) Manual Part Number: MRP 1902273 290 Sundancer...

  • Page 11: Helm, Gauge & Switch Layout

    SPEEDOMETER . 7.2) STBD 4-IN-1 PORT 4-IN-1 GAUGE GAUGE PORT SYSTEM STBD SYSTEM FUEL TACHOMETER TACHOMETER 4-IN-1 GAUGE WATER TEMP PRESSURE TRIM VOLT TARBOARD WITCH . 7.3) PORT SWITCH PANEL STARBOARD SWITCH PANEL Manual Part Number: MRP 1902273 290 Sundancer...
  • Page 12 SYSTEM VIEW (OPT) STBD SWITCH PAD CHART PLOTTER (OPT) SPOT LIGHT CONTROL (OPT) PORT SWITCH PAD VOLVO EVC CONTROL (W/ VOLVO OPT) STEREO REMOTE SMARTCRAFT AIR SENSOR 12V RECEPTACLE VHF RADIO HELM ACCESS DOOR Manual Part Number: MRP 1902273 290 Sundancer...

  • Page 13: General Layout

    FRESH WATER PORT CONVERSATION FILL SEATING (W/ STORAGE BELOW) WASTE WATER PUMPOUT FUEL FILL ENGINE ROOM HATCH AFT BENCH SEAT (W/ STORAGE BELOW) TRANSOM DOOR TRANSOM STORAGE PULL OUT SWIM LADDER SWIM PLATFORM Manual Part Number: MRP 1902273 290 Sundancer...
  • Page 14 TO SALON SEATING TV (OPTIONAL) SALON DINETTE TABLE FWD DINETTE TABLE SALON SOFA (W/ STORAGE BELOW) MICROWAVE STORAG3E 12V DC RECEPTACLE MDP PANEL CABIN ENTRY STEPS STOVE MID STATEROOM HEAD STORAGE MID STATEROOM TV (OPTIONAL) Manual Part Number: MRP 1902273 290 Sundancer...

  • Page 15: Cleats

    AVIGATION AND NCHOR IGHT WITCHES . 11.2) NAVIGATION ANCHOR LIGHT LIGHT SWITCH SWITCH BOW NAVIGATION STERN NAV. / LIGHT ANCHOR LIGHT BULB REPLACEMENT BULB REPLACEMENT BULB# GE2641L FUSE TYPE BULB 12V R 10W #12V10WPERKO Manual Part Number: MRP 1902273 290 Sundancer...

  • Page 16: Bilge Layout

    EMERGENCY HIGH WATER PUMP GENERATOR MUFFLER* FRESH WATER PUMP GENERATOR* WASTE VACUUM GENERATOR A/C INTAKE SEACOCK* BILGE BLOWERS WASTE DISCHARGE SEACOCK* POWER TRIM PUMP BATTERIES TRIM TABS PUMP MACERATOR* AUTOMATIC FIRE EXTINGUISHER *OPTIONAL EQUIPMENT Manual Part Number: MRP 1902273 290 Sundancer...

  • Page 17: Bilge Layout (Cont'd)

    EMERGENCY HIGH WATER PUMP GENERATOR MUFFLER* FRESH WATER PUMP GENERATOR* WASTE VACUUM GENERATOR A/C INTAKE SEACOCK* BILGE BLOWERS WASTE DISCHARGE SEACOCK* AUTOMATIC FIRE EXTINGUISHER BATTERIES TRIM TABS PUMP MACERATOR* POWER TRIM PUMPS *OPTIONAL EQUIPMENT Manual Part Number: MRP 1902273 290 Sundancer...

  • Page 18: Fire Extinguishing System

    The fresh water system on the 290DA consists of a ASOLINE YSTEM 28 gal. (106 liter) tank, 12v water pump shower – Hot The 290 Sundancer ® standard gasoline fuel system and cold water heater 120v (6 gal) with exchanger.

  • Page 19: Entertainment System

    ® on the boat’s electrical system yourself. Instead, we recommend that you take your boat to your authorized Sea Ray dealer for service. Sea Ray ® ® reserves the right to change or update the electrical system on any model at any time without notice to the consumer and is NOT obligated to make any updates to units built prior to changes.
  • Page 20 290 S UNDANCER UNDANCER LECTRICAL LECTRICAL CHEMATICS CHEMATICS DC W IRING IAGRAM DRAWING NO. 09-600 . 16.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 21 290 S UNDANCER LECTRICAL CHEMATICS DC W IRING IAGRAM DRAWING NO. 09-600 . 17.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 22 DC W IRING IAGRAM DRAWING NO. 08-600 . 18.1) DC W IRING IAGRAM DRAWING NO. 08-600 . 18.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 23 DC W IRING IAGRAM DRAWING NO. 09-600 . 19.1) DC W IRING IAGRAM DRAWING NO. 09-600 . 19.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 24 290 S UNDANCER LECTRICAL CHEMATICS DC W IRING IAGRAM DRAWING NO. 09-600 . 20.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 25 290 S UNDANCER LECTRICAL CHEMATICS DC W IRING IAGRAM DRAWING NO. 09-600 . 21.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 26 290 S UNDANCER LECTRICAL CHEMATICS DC W IRING IAGRAM OLVO DRAWING NO. 09-605 . 22.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 27 290 S UNDANCER LECTRICAL CHEMATICS DC W ABIN IRING IAGRAM DRAWING NO. 09-610 . 23.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 28 IRING IAGRAM DRAWING NO. 09-640 . 24.1) REMIUM TEREO YSTEM IRING IAGRAM DRAWING NO. 09-642 . 24.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 29 290 S UNDANCER LECTRICAL CHEMATICS MDP D IAGRAM DRAWING NO. 09-660 . 25.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 30 290 S UNDANCER LECTRICAL CHEMATICS MDP D IAGRAM DRAWING NO. 09-660 . 26.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 31 290 S UNDANCER LECTRICAL CHEMATICS MDP D (220) IAGRAM DRAWING NO. 09-662 . 27.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 32 290 S UNDANCER LECTRICAL CHEMATICS MDP D (220) IAGRAM DRAWING NO. 09-662 . 28.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 33 AC S YSTEM IAGRAM DRAWING NO. 09-672 . 29.1) AC S YSTEM IAGRAM DRAWING NO. 09-672 . 29.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 34 290 S UNDANCER LECTRICAL CHEMATICS MART RAFT YSTEM IRING IAGRAM DRAWING NO. 09-710 . 30.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 35 290 S UNDANCER LECTRICAL CHEMATICS MART RAFT YSTEM IRING IAGRAM DRAWING NO. 09-710 . 31.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 36 290 S UNDANCER LECTRICAL CHEMATICS MART RAFT YSTEM IRING IAGRAM DRAWING NO. 09-710 . 32.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 37 CHEMATICS ATELLITE TEREO IRING IAGRAM DRAWING NO. 09-715 . 33.1) 6000 ORTHSTAR DRAWING NO. 09-740 . 33.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 38 290 S UNDANCER LECTRICAL CHEMATICS NTERCONNECT IAGRAM DRAWING NO. 09-670 . 34.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 39 290 S UNDANCER LECTRICAL CHEMATICS OLVO YSTEMS IAGRAM DRAWING NO. 09-782 . 35.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 40 UNDANCER LECTRICAL CHEMATICS ILGE ARNESS DRAWING NO. 09-802 . 36.1) ILGE ARNESS DRAWING NO. 09-802 . 36.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 41 CHEMATICS ILGE ARNESS NSTALLATION DRAWING NO. 09-802 . 37.1) ILGE ARNESS NSTALLATION DRAWING NO. 09-802 . 37.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 42 UNDANCER LECTRICAL CHEMATICS ENERATOR ARNESS DRAWING NO. 09-810 . 38.1) ENERATOR ARNESS DRAWING NO. 09-810 . 38.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 43 DRAWING NO. 09-821 . 39.1) ABIN ARNESS DRAWING NO. 09-821 . 39.2) ABIN ARNESS DRAWING NO. 09-821 . 39.3) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 44 LECTRICAL CHEMATICS ABIN ARNESS DRAWING NO. 09-821 . 40.1) REMIER TEREO ARNESS DRAWING NO. 09-828 . 40.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 45 290 S UNDANCER LECTRICAL CHEMATICS POILER ARNESS DRAWING NO. 09-882 . 41.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 46 290 S UNDANCER LECTRICAL CHEMATICS THIS PAGE INTENTIONALLY LEFT BLANK 290 Sundancer Manual Part Number: MRP 1902273...
  • Page 47 Dimensions ..............5 Switch Layout ..............7 Electrical Schematics ..........15 Through-Hull Cutouts ..........6 Entertainment System ..........15 Water System ............14 Fire Extinguishing System .........14 Fuel System ...............14 Gauge Layout ..............8 General Layout ............9 Helm Layout..............8 290 Sundancer Index i Manual Part Number: MRP 1902273...
  • Page 48 THIS PAGE INTENTIONALLY LEFT BLANK 290 Sundancer Manual Part Number: MRP 1902273...
