Summary of Contents for DAESUNG MAREF DOCTOR LIFE Series
- Page 1 DL2002D Indication This manual is for user's safety and preventing any property-loss. Before using our device, please inevitably read this manual carefully.
- Page 2 Many thanks for using our device. For safe using our device ● Before using our device, please precisely read the manual. ● Keep this manual near to the device for easily reading it. ● This manual presents the details to be kept by users for preventing any danger or property-loss and for safe using the device.
-
Page 3: Table Of Contents
CONTENTS SAFETY PRINCIPLES 1) Electrical safety (4) 2) Safety for Body (5) 3) Safe use and maintenance of a device (6) 4) Safe use of cuff (7) 5) Cleaning and others (8) 1. NAEM OF PARTS-------------------------------------------------------------------------------------- 9 2. NAME AND EXPLANATION OF OPERATORS---------------------------------------------- 10 3. -
Page 4: Electrical Safety
1) Electrical Safety This device is for domestic using. Stop using the device in case of smelling during After checking your local voltage, please use a using the device. In this case, put off the electric device! power and pull out plug from socket. And then (Fire and electric shock possible) inform it to service center. -
Page 5: Safety For Body
2) Safety for Body Forbid child to use the device. Don't use air hose to nose, mouth and ears. In case of blowing air into cuff with wearing cuff by (Injuring possible) child, serious wound possible 경고 경고 Prohibit using the device in case of vein cancer, Prohibit using the device in case of artificial-heart deep thrombophlebitis, phlebothrombosis patient. -
Page 6: Safe Use And Maintenance Of A Device
3) Safe use and maintenance of a device Use the device indoors of 0 ~40 . Don't use the device in high humidity place. Keep the device under humidity of 60%. (Bathroom/sauna etc.) (If not, trouble/fire possible) (Fire, electric shock possible) 금지... -
Page 7: Safe Use Of Cuff
4) Safe use of cuff Don't use a cuff with accessories, watch etc. (Physical Except testing, don't blow air into cuff under damage of user’s skin and breakage of cuff possible) the condition of not wearing cuff on body (Damage, anti-endurance possible). 금지... -
Page 8: Cleaning And Others
5) Cleaning and Others When cleaning the device, don't use water, oil, When cleaning the device, don't use water, oil, benzene, alcohol, gasoline, chemicals etc. (If not so, benzene, alcohol, gasoline, chemicals etc. (If the life of the cuff will be very shorten) not so, the life of the cuff will be very shorten) Use dry towel. -
Page 9: Naem Of Parts

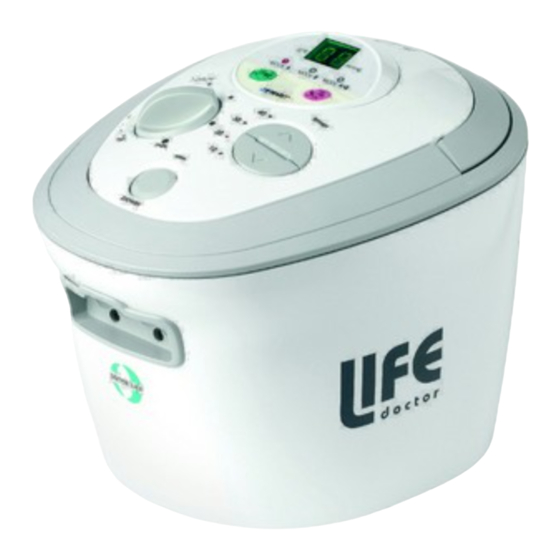

1. NAME OF PARTS A MAIN BODY Move mode selector Pressure Gauge Start/Stop Pressure knob Timer ON/OFF button Handle Air socket ACCESSORIES Cuff Jack 1-line hose for one cuff Hose jack 2-line hose for two cuffs Arm cuff One waist Two leg Hose plug (Separate) -
Page 10: Name And Explanation Of Operators
2. NAME AND EXPLANATION OF OPERATORS MOVE SELECTOR PRESSURE Selects 1 from 3 modes GAUGE according to patient’s state. Shows the set pressure on LCD PRESSURE KNOB Sets and control to MOVE INDICATOR the suitable pressure Indicates the set for user’s therapy move mode ON/OFF BUTTON Turn on and off power... -
Page 11: How To Use
4. HOW TO USE 1) Feature of a device 3 Move mode There are 3 Move modes. (Mode A, Mode B, Mode A+B) Pressure sensor The pressure is kept regularly to the set point of pressure by the perception of pressure sensor regardless of the size of user’s body. -
Page 12: How To Set Pressure
How to set pressure Pressure range: 10~180mmHg (Unit: 10mmHg) ±20mmHg Suitable pressure setting is 60mmHg~120mmHg. Please read the pressure to the indicated pressure X10mmHg. EX) When the set pressure is 11, read the pressure to 11X10mmHg=110mmHg! Pressure gauge To lower pressure To increase pressure pressure pressure... -
Page 13: How To Set Move Mode
5) How to set move mode There are three move modes. We recommend suitable mode to mode A+B. If pressing button, the move mode moves in order of mode A, mode B, mode A+B. Please select the suitable mode as referring to the below table. MODE A MODE B MODE A+B... -
Page 14: How To Connect Four Hose Jacks And A Cuff
How to connect 4 hose jacks to a cuff Put 4 hose jacks to 4 caps of the same color on cuff! The effect of therapy will drop if the order of putting is not right. Please check definitely the order of pressurization is applied from foot→calf→knee→thigh in turn. 8) How to use one leg cuff - As side picture, wear a leg cuff to user’s leg and put 1-line hose plug perfectly to air socket of a main body. -
Page 15: How To Use An Arm Cuff And A Leg Cuff Simultaneously
How to use an arm and a leg cuff simultaneously - As side picture, wear an arm cuff and a leg cuff to each user’s arm and leg and put 2-line hose plug perfectly to air socket of a main body. If not so, air can leak from air socket. -
Page 16: How To Start/Stop The Operation Of Device
13) How to start/stop the operation of device Power up and set the pressure 60mmHg), Timer(10분), Move mode(A+B) and then press the Start/Stop button to start the operation and press again Start/Stop button to stop operating a device. (NOTICE) If stop a device by pressing a power on/off button, as wind in each chamber keeps without discharge from a cuff, user should stop a device with a timer knob. -
Page 17: Before Thinking Of Something Wrong
5. BEFORE THINKING OF SOMETHING WRONG Operating condition Checking points -Plug correctly inserted into outlet? -Correct the voltage of product with your local No electric power voltage? -Fuse short? Power on but not-operating -Pull out power plug and reinsert it into outlet. -Horizontally installed? Noisy during operating -Any material on the device? -
Page 18: Warranty
Warranty Much appreciated on using our device. We, Daesung Maref are doing our best to improve the quality of our products. We will do our best effort to be a good companion of users. * In case of followings, we can not repair our device gratuitously even though warranty period: Disorder happened by strong impact. -
Page 19: Indications For General Home Case Users
DETAIL MEDICAL INDICAITO Indications for home care Lymph edema Chronic disease by the venous cause Fat dissolution Rheumatoid arthritis Improvement of intestines, dissolution Constipation Benumbed feet and hands Settlement of stress Disease by interruption in blood circulation Effect of exercise The old and the weak, fatigue, bore dome, insomnia Person who want to be elastic skin and a healthier body Medical Indications...
