Draeger Infinity Acute Care System Instructions For Use Manual

Monitoring accessories software vg6.n
Hide thumbs
Table of Contents

Advertisement

Quick Links

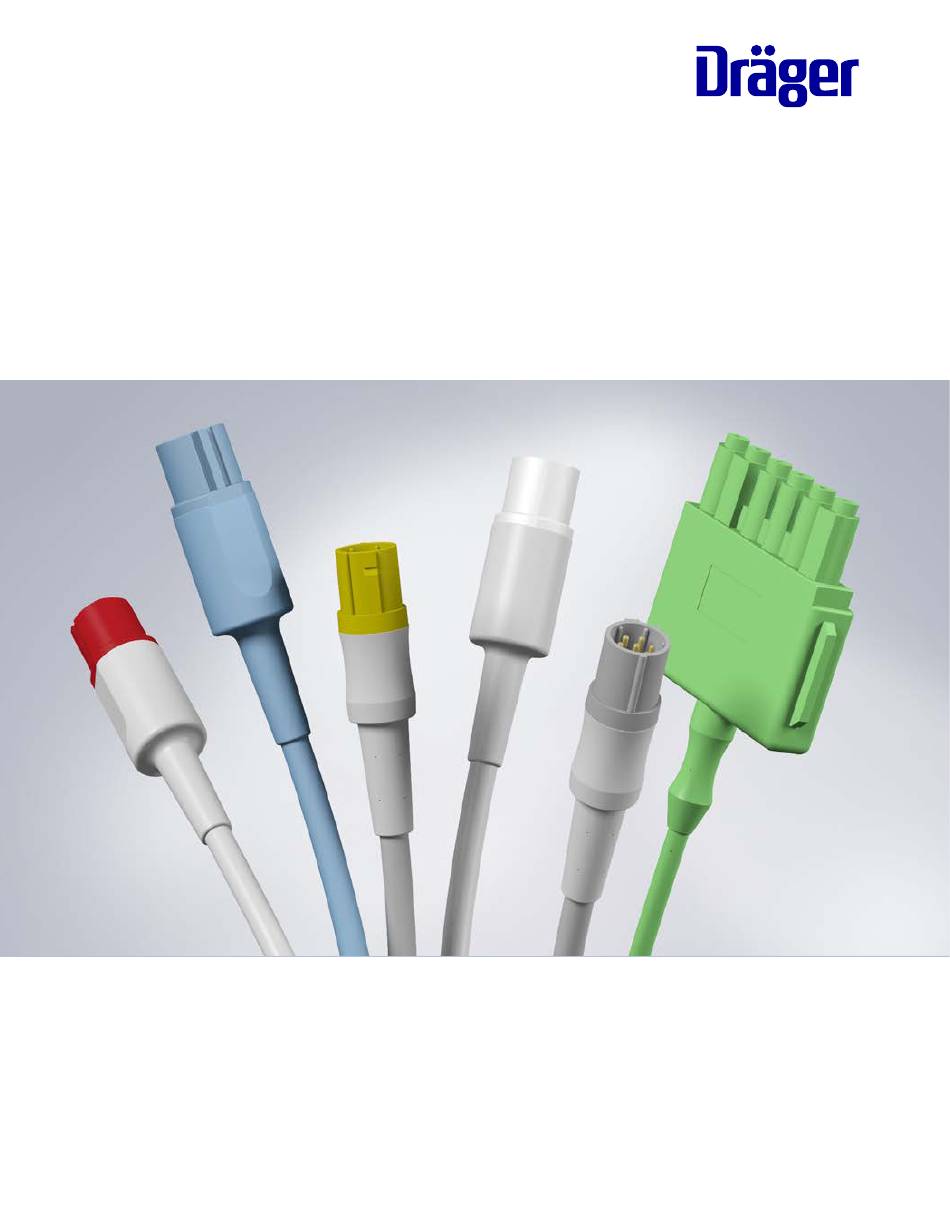

Instructions for use
Infinity Acute Care System
WARNING
To properly use accessories, read
and comply with all relevant instruc-
tions for use.
Monitoring accessories
Software VG6.n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinity Acute Care System and is the answer not in the manual?

Questions and answers

Related Manuals for Draeger Infinity Acute Care System

Summary of Contents for Draeger Infinity Acute Care System

  • Page 1 Instructions for use Infinity Acute Care System Monitoring accessories WARNING To properly use accessories, read Software VG6.n and comply with all relevant instruc- tions for use.

  • Page 2: Working With These Instructions For Use

    – Dashes indicate the listing of data, options, or objects. (A) Letters in parentheses refer to elements in the related illustration. A Letters in illustrations denote elements referred to in the text. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 3: General Notes For Iacs

    Oridion Medical 1987 Ltd. are trademarks of Dräger. ® – rainbow ® – Masimo ® ® – Masimo (Signal Extraction Technology) are registered trademarks of Masimo Corporation. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 4 NOTE A NOTE provides additional information intended to avoid inconveniences during operation. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 5: Table Of Contents

    MCable – Analog/Sync ....53 Scio monitoring......54 Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 6 This page intentionally left blank. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 7: For Your Safety And That Of Your Patients

    Connected devices ..... . Installing accessories ....Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 8 Do not use sterile-packaged accessories if the bels or appearing in the Instructions for use packaging has been opened, is damaged or if for the Infinity Acute Care System (IACS) ap- there are other signs of non-sterility. Single-use plications. accessories must not be reused, reprocessed, or resterilized.
  • Page 9 The accessories are not available individually. Only one copy of the instructions for use is includ- ed in the bulk package and must therefore be kept in a location accessible for users. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 10 This page intentionally left blank. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 11: List Of Accessories

    ......40 Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 12 Scio modules ......54 Instructions for Use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 13: Overview

    List of accessories Infinity Acute Care System accessories overview The following diagram is an overview of the accessories available with the Infinity Acute Care System. MPod – Quad Hemo MCable – Dual Hemo Cardiac Output Hemo Temp/Aux NIBP Masimo rainbow SET...
  • Page 14 Mainstream CO & Analog/Sync Analog & Sync Temp Microstream CO Pediatric Adult Analog/Sync ECG – reusable ECG – MonoLead ECG – single-use ECG – neo NIBP Adult/Child Neonatal Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 15 List of accessories Scio monitoring Scio Four Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 16 – "Cardiac (C.O.) output monitoring" on page 46 – "CO monitoring - Microstream" on page 48 – "Temperature monitoring" on page 50 – "MCable – Analog/Sync" on page 53 – "Scio monitoring" on page 54 Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 17: General Iacs Accessories

    Ethernet network cable, 4726399 4.9 m (16.1 ft) Ethernet cables, 2.4 m (7.9 ft) 4726381 Ethernet cables, 1.2 m (3.9 ft) 4726373 Nurse call cable 8417370 Export protocol cable MS22948 Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 18: Device Interface Kits

    Universal set, 2 x 5 m (6.5 x 16.4 ft) G26455 Universal set, 2 x 8 m (6.5 x 26.25 ft) G26456 IACS wall box assembly G26740 IACS ceiling connection set G25955 Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 19: Iacs / M540 Options

    MS16266 Full arrhythmia MS22225 Multi IBP MS20504 12-lead ECG MS20508 12 channels MS20505 16 channels MS20506 Web-enabled layouts MS20511 Web-enabled tabs MS20512 View editor MS20515 Physiological calculations MS20516 Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 20: Ecg Monitoring - Reusable Leadsets

    ECG 4-lead grabber sets. WARNING To reduce the hazard of burns during electro- surgery, 4-lead extension cables are not sup- ported for use in electrosurgical environ- ments. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 21 IEC2 (AHA/US), 1 m (3.3 ft) G ECG grabber 4-lead, MP03407 MS22365 IEC1 (Europe), 1 m (3.3 ft) ECG grabber 4-lead, MP03408 MS22364 IEC2 (AHA/US) 1 m (3.3 ft) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 22: Ecg Monitoring - Single-Patient Use Leadsets

    ECG 4-lead grabber sets. WARNING To reduce the hazard of burns during electro- surgery, 4-lead extension cables are not sup- ported for use in electrosurgical environ- ments. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 23 1 m / 1.5 m (3.3 ft / 4.9 ft) ECG grabber 4-lead, IEC1 MP03120 (Europe), 1 m (3.3 ft) ECG grabber 4-lead, MP03121 IEC2 (AHA/US), 1 m (3.3 ft) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 24: Ecg Monitoring - Monolead

    3.7 m (12.1 ft) long Monoleads MS20475 and MS20476. WARNING To reduce the hazard of burns during electro- surgery, 4-lead extension cables are not sup- ported for use in electrosurgical environ- ments. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 25: Monoleads

    ECG MonoLead 4-lead, MS14694 IEC2 (AHA/US),1.7 m (5.6 ft) ECG MonoLead 4-lead, IEC1 MS20476 (Europe), 3.7 m (12.1 ft) ECG MonoLead 4-lead, MS20475 IEC2 (AHA/US), 3.7 m (12.1 ft) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 26: Ecg Monitoring - Neonatal

    ECG extension cable (MS16256). Part Part No. ECG neonatal 3-lead adapter MS25951 cable, 2 m (6.5 ft), single-pin ECG electrode KittyKat 5195024 300 pieces ECG 4-lead spacer, 10 pieces MS22832 Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 27: Invasive Blood Pressure (Ibp) With Hemo2 Pod Or Hemo4 Pod

    Part No. Hemo pod adapter, 10-pin 3375958 Hemo pod adapter, MS23598 SensoNor, 7-pin Hemo pod adapter, 5196980 Baxter-Edwards Hemo pod adapter, 5196998 Abbott-Medex(Transtar) Hemo pod adapter, 3375941 Argon/BD Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 28: Ibp Monitoring With Mpod - Quadhemo Or Mcable - Dual Hemo

    MPod – QuadHemo (not necessary for the MCable – Dual Hemo). Transducer adapter cables Part Part No. Abbott-Medex (Transtar) MS22535 Baxter-Edwards MS22147 Argon/BD MS22148 Utah Medical MS22534 Dräger 7-pin MS22533 Dräger 10-pin MS22532 Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 29: Non-Invasive Blood Pressure (Nibp) Monitoring - Dräger Connectors

    Large adult arm cuff, L+ MP00919 31 to 55 cm (12 to 22 in) Large adult thigh cuff, XL MP00921 38 to 50 cm (15 to 20 in) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 30: Single-Patient Use Adult/Pediatric Blood Pressure Cuffs

    Adult arm cuff, L+, MP00932 31 to 55 cm (12 to 22 in) 10 pieces Adult thigh cuff, XL, MP00934 38 to 50 cm (15 to 20 in) 10 pieces Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 31: Non-Invasive Blood Pressure (Nibp) Monitoring - Neonatal

    5.8 to 10.9 cm (2.3 to 4.3 in) Neonatal cuff #4 2870215 7.1 to 13.1 cm (2.8 to 5.1 in) Neonatal cuff #5 2870173 8.3 to 15.0 cm (3.2 to 6 in) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 32: (Rainbow Sensors)

    Masimo rainbow SET intermediate cables Part No. Part No. Part (non-US) (US) rainbow cable MP02974 MP03052 RC-4, 1.2 m (4 ft) rainbow cable MP02975 MP03053 RC-12, 3.6 m (12 ft) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 33: Masimo Rainbow Set Resposable Sensors

    MP03202 MP03063 DCI, adult ReSposable R2- rainbow sensor MP02972 MP03065 DCIP, pediatric NOTE NOTE PVI works only with Masimo rainbow SET. PVI works only with Masimo rainbow SET. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 34: Spo2 Monitoring - Masimo Rainbow Set (M- Lncs)

    Masimo rainbow SET intermediate cables Part No. Part No. Part (non-US) (US) rainbow cable RC-4, MP02974 MP03052 1.2 m (4 ft) rainbow cable RC- MP02975 MP03053 12, 3.6 m (12 ft) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 35: Masimo Reusable M-Lncs Sensors

    M–LNCS, DBI, adult NOTE NOTE PVI works only with Masimo rainbow SET. PVI works only with Masimo rainbow SET. Masimo does not make any claims regarding motion. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 36: Masimo Single-Patient Use M-Lncs Trauma

    Masimo M–LNCS MP03205 MP03077 trauma sensor, in- fant/pediatric Masimo M–LNCS MP03204 MP03076 trauma sensor, neonatal CAUTION With trauma sensors, the sensor-off detection performance may be compromised. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 37: Spo2 Monitoring - Masimo Rainbow Set

    MP02991 MP03030 LNC-4 cable, 1.2 m (4 ft) Masimo red MP02992 MP03031 LNC-10 cable, 3 m (10 ft) Masimo red MP03196 MP03032 LNC-14 cable, 4.3 m (14 ft) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 38: Masimo Single-Patient Use Lncs Sensors

    TC-I adult ear MP00788 MP03021 YI adult/pediatric/ MP00789 MP03023 infant/neonatal multi-site TF-I adult forehead MP00799 MP03022 Masimo LNCS-DBI, MP02993 MP03024 adult NOTE Masimo does not make any claims regarding motion. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 39: Spo2 Monitoring - Masimo Set (Lncs)

    MP00790 MP03011 20 pieces Inf/Inf-3, infant, MP00791 MP03013 20 pieces Neo/Neo-3, neona- MP00792 MP03014 tal, 20 pieces NeoPt/NeoPt-3, MP00794 MP03015 preterm, 20 pieces Pdtx, pediatric, MP00793 MP03012 20 pieces Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 40: Masimo Reusable Lncs Sensors

    Masimo LNCS-DBI, MP02993 MP03024 fant/pediatric adult NOTE Masimo does not make any claims regarding CAUTION motion. With trauma sensors, the sensor-off detection performance may be compromised. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 41: Spo2 Monitoring - Masimo Set (M-Lncs)

    (US) Masimo MP02988 MP03086 M–LNC-4 cable 1.2 m (4 ft) Masimo MP02989 MP03087 M–LNC-10 cable 3 m (10 ft) Masimo MP03208 MP03088 M–LNC-14 cable 4.3 m (14 ft) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 42: Masimo Single-Patient Use M-Lncs Sensors

    MP02986 MP03079 sample pack NOTE PVI works only with Masimo rainbow SET. NOTE Masimo does not make any claims regarding PVI works only with Masimo rainbow SET. motion. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 43: Masimo Spo Accessories

    Ma- 7496891 MP03049 simo YI (12 pieces) Headband for MP03197 MP03050 LNOP/LNCS TF-I Adhesive pad MP03198 MP03051 LNOP/LNCS TF-I Masimo rainbow sensor MP03203 MP03070 shield Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 44: Spo2 Monitoring - Nellcor Oximax

    C OxiMax MaxA, 46 cm (18 in), MX50065 24 pieces OxiMax MaxAL, 91 cm (36 in), MX50071 24 pieces OxiMax MaxI, infant, 24 pieces MX50067 OxiMax MaxN, neo/adult, MX50068 24 pieces Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 45: Nellcor Reusable Sensor

    Max-Fast, 24 pieces OxiBand Oxi-P/I, ped/inf, 2170221 100 pieces Nellcor Oxiband wrap A/N, 100 8201012 pieces Nellcor reusable sensor Part Part No. D Durasensor DS100A, adult, finger 7262764 Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 46: Cardiac (C.o.) Output Monitoring

    Cardiac output kits (not shown) Part Part No. Cardiac output kit, Baxter 7265155 Cardiac output kit, Argon/BD 7265163 NOTE Kit includes intermediate cable, catheter cable, and thermistor cable. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 47: Co Monitoring - Mainstream

    Airway adapter main, pediatric 6870280 Additional accessories (not shown) Part Part No. Calibration set 8412710 test gas cylinder 6850435 Parking holder for CO sensor 8416352 Test filter 6870281 Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 48: Co Monitoring - Microstream

    12 h, 25 pcs etCO2 Airway adapter with 7869550 sample line, neonatal/pediatric, max. 72 h, 25 pcs etCO2 Airway adapter with 7869543 sample line, adult/pediatric, max. 72 h, 25 pcs Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 49: Sample Lines For Non-Intubated Patients

    25 pcs ® MS26188 Smart Capnoline Plus O sal and mouth sample line, adult/intermediate; recommend- ed for procedural sedation, sleep laboratory data, EMS and ED, 8 h, 25 pcs Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 50: Temperature Monitoring

    3 m (9.8 ft) Pediatric/neonatal single-patient use Part Part No. Skin temperature sensor, MP00997 pediatric, 1.6 m (5.2 ft) Skin temperature sensor, MP00998 pediatric, 3 m (9.8 ft) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 51: Temperature Cables

    Part No. Temperature sensor, adult, 4329889 1.5 m (4.9 ft) Temperature sensor, adult, 5204644 3 m (9.8 ft) Core probe covers, 20 cm, 7014616 10 pieces (contains latex) Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 52 Temperature core probes can be used during electrosurgery and in esophageal and rectal applications. NOTE Temperature sensors with 7-pin connectors are compatible with Hemo4 pod, Hemo2 pod, MPod – QuadHemo (see page 27). Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 53: Mcable - Analog/Sync

    (16.4 ft) QRS sync output cable, 3 m 4314667 (9.8 ft) NOTE The y-cable allows simultaneous use of the MCable - Mainstream CO2 and MCable – An- alog/Sync. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...

  • Page 54: Scio Monitoring

    Scio Four 6871804 Scio Four plus 6871802 Scio Four Oxi 6871803 Scio Four Oxi plus 6871801 NOTE See the Scio Four Modules supplement for additional accessories. Scio Four Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 55 This page intentionally left blank. Instructions for use – Infinity Acute Care System – Monitoring Accessories VG6.n...
  • Page 56 These instructions for use only apply to Infinity Acute Care System – Monitoring Ac- cessories VG6.n with the Serial No.: If no Serial No. has been filled in by Dräger, these Instructions for Use are provided for gen- eral information only and are not intended for use with any specific machine or unit.
