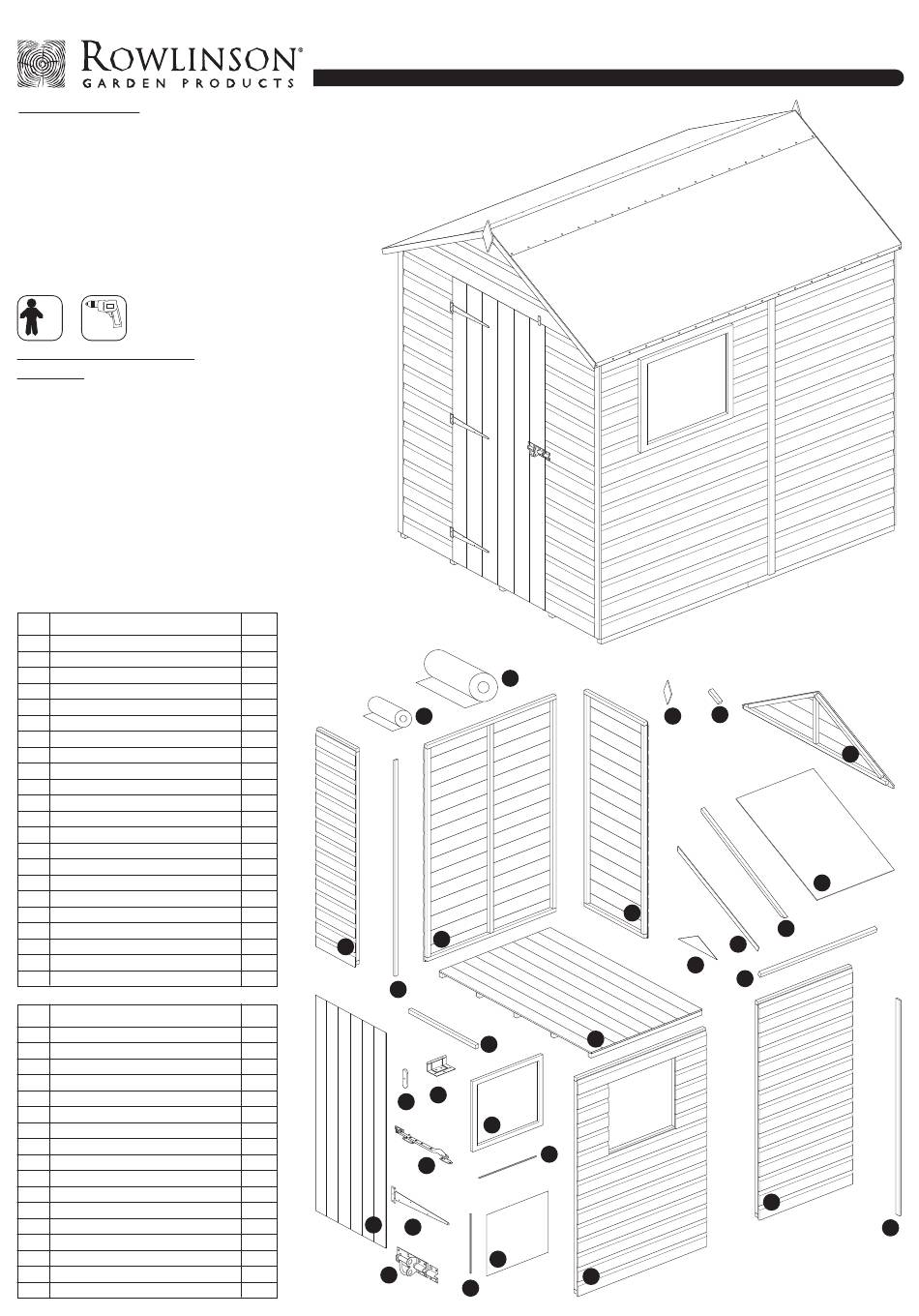

Rowlinson Premiere Shiplap Modular Shed Assembly Instructions

Before assembly

•
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than two people.
•
Never attempt to erect the assembly in
high winds.
•
Drill components where indicated.
x 2
Drill
Recommended tools for
assembly
•
Cross head screw driver
•
10mm spanner
•
Hammer
•
Sharp knife
•
Drill
•
4mm diameter drill bit
•
6mm diameter drill bit
•
Spirit level
•
Silicon sealant
•
Step ladder
No.

Components

1 Floor panel
2 Large plain panel
(Width 1174mm)
3 Window panel
(Width 1174mm)
4 Medium plain panel
(Width 850mm)
5 Small plain panel
(Width 600mm)
6 Front panel
(Width 390mm)
7 Apex panel
8 Door header rail
(29 x 29 x 670mm)
9 Roof rafter
10 Roof panels
11 Felt battens
(29 x 29 x 1057mm)
12 Felt batten block
13 Door frame coverstrip
(29 x 12 x 1685mm)
14 Door
15 Roofing felt
(5m)
16 Roofing ridge felt
(2.5m)
17 Window frame
18 Window perspex
(515x560mm)
19 Window beading
(560mm)
20 Window beading
(475mm)
21 Coverstrips
(48x12x1710mm)
22 Bargeboard
No.

Fixing kit

23 Roof gussets
24 Finial
25 T-hinge
(254mm)
26 Padbolt
27 Turn buttlon
28 Cabinet hinges
29 Window Stay
30 50mm coachbolts
31 6mm washers
32 6mm nuts
33 50mm screws
34 38mm screws
35 25mm screws
36 65mm nails
37 30mm nails
38 20mm nails
39 10mm felt nails
2.1 x 1.5 (7' x 5') Premiere Shiplap
Modular Shed
Assembly Instructions
Qty.
2
1
1
3
1
16
2
2
1
8
6
4
4
2
1
1
1
1
1
2
2
6
7
4
13
Qty.
4
2
3
1
1
27
2
1
4
4
4
35
16
48 14
25
14
113
12
26
112
15
2
1
8
28
17
19
30
18
3
20
English SS196C
12
24
5
9
22
23
11
4
7
10
21
