IMPORTANT SAFETY INFORMATION
Adult assembly is required. Checks and
maintenance needs to be carried out on the
main parts (fixings etc.) at regular intervals.
If these checks are not carried out the
product could become unsafe.
Before assembly
•
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than two people.
•
Never attempt to erect the assembly in
high winds.
•
Drill components where indicated.
x 2
Drill
Recommended tools for assembly
•
Cross head screw driver
•
Hammer
•
Sharp knife
•
Drill with 3mm diameter drill bit
•
Spirit level
•
Tape measure
•
Silicon sealant
•
Step ladder
No.
Components
1
Floor panel
2
Window side panel
(width = 880mm)
3
Plain side panel
(width = 880mm)
4
Front window panel
(width = 875mm)
5
Back panel
(width = 1174mm)
6
Door
7
Left front/right rear apex panel
8
Right front/left rear apex panel
9
Roof purlin
10
Roof panel
11
Felt battens
12
Batten blocks
13
Coverstrips
(40x12x1235mm)
14
Back panel coverstrips
(40x12x1765mm)
15
Front apex coverstrips
(40x12x525mm)
16
Styrene glazing
(477x397mm)
17
Horizontal window beading
18
Vertical window beading
(382mm)
19
Front shaped bargeboards
20
Back plain bargeboards
21
Roofing felt roll
(5m)
22
Roofing felt roll
(2.5m)
23
Door hinge
No.
Fixing Kit
24
Finial
25 Catch mounting block
(29x29x100mm)
26 Roller catch kit
27
Door handle
28 50mm screws
29 35mm screws
30 25mm screws
31 19mm black round head screws
32 10mm round head screws
33 35mm nails
34 20mm nails
35 10mm felt nails

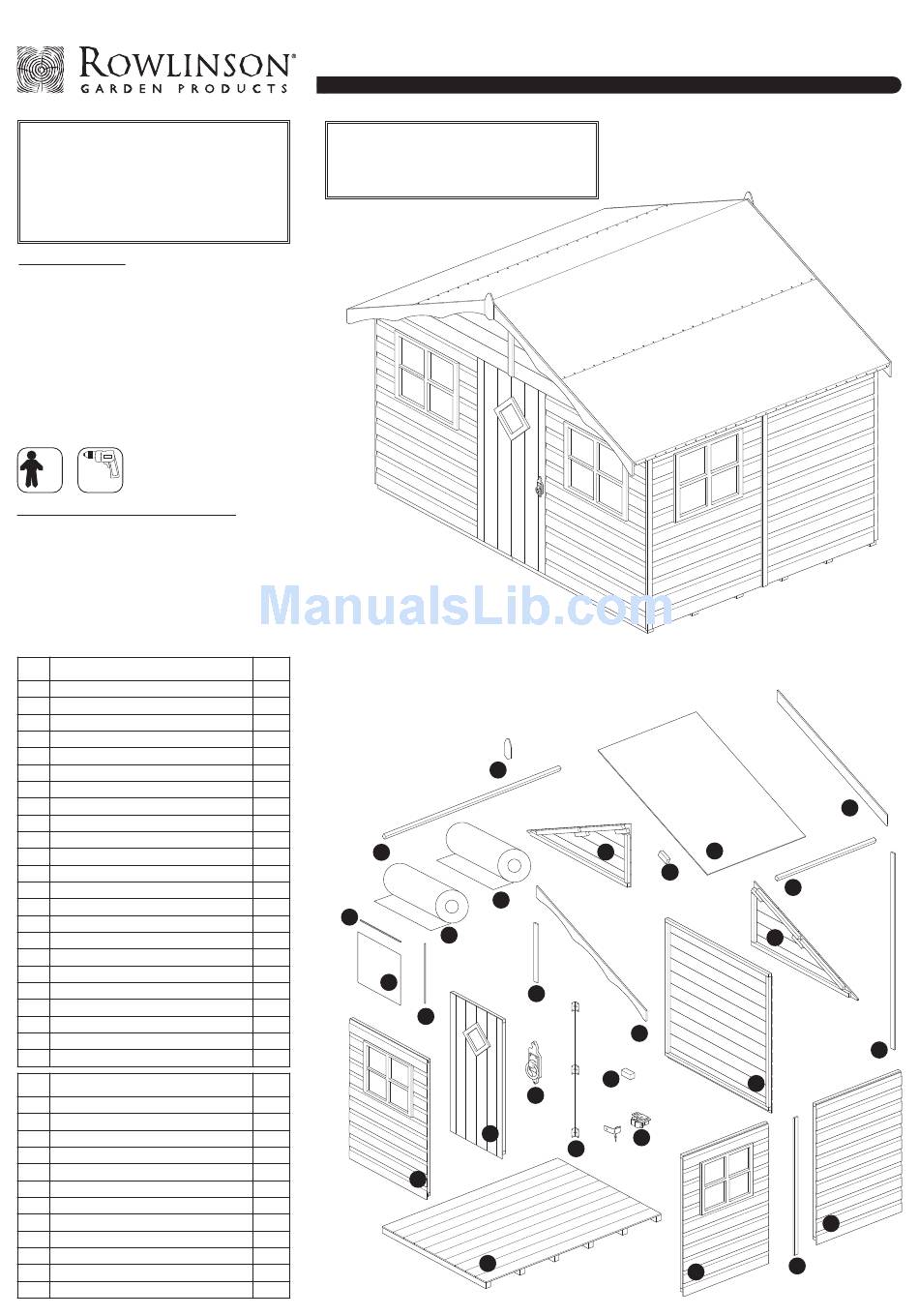

Playaway Lodge
Assembly Instructions
Not suitable for children under 36 months
due to small parts and sharp points.
Qty.
2
2
2
2
2
1
2
2
4
4
4
12
6
1
17
1
4
8
(479mm)
8
2
2
1
1
1
Qty.
2
1
1
1
55
36
18
4
4
94
48
118
WARNING
24
9
21
22
16
15
18
27
6
4
1
10
8
12
19
25
26
23
2
English SS287
20
11
7
14
5
3
13
Advertisement
Related Manuals for Rowlinson SS287
Summary of Contents for Rowlinson SS287
- Page 1 Playaway Lodge English SS287 Assembly Instructions IMPORTANT SAFETY INFORMATION WARNING Adult assembly is required. Checks and Not suitable for children under 36 months maintenance needs to be carried out on the due to small parts and sharp points. main parts (fixings etc.) at regular intervals.
- Page 2 1. Laying the floor section Prepare a level area for the playhouse to sit. Attach three wooden or similar bearers of size 50 x 50 x 1810mm (not supplied in kit) to each floor section. To "VALIDATE" the guarantee, this item should be erected on 50mm x 50mm treated wooden or similar bearers (These are not supplied with the kit.) Ground contact must be avoided.
- Page 3 4. Door fitting Open the hinge flat and position it on the left side of the door as show, secure in place using 9 x 25mm screws. Position the door in the door way, adjust the height of the door so it will be able to open and close freely. When in place secure hinge to the door frame using 9 x 25mm screws. 25mm 25mm Important...
- Page 4 7. Roofing felt Cut the 5m roll of roofing felt into two equal lengths. Place a length over one side of the roof. At the front and along the lower edge of the roof leave an overhang of felt of at least 45mm. Fold down the felt along the lower edge and secure to the felt batten using 20 x10mm felt nails evenly spaced. Tension the felt over the roof and secure along the upper edge using 5 x 10mm felt nails.
- Page 5 ROWLINSON GARDEN PRODUCTS LIMITED components shown and are only correct at time of Green Lane printing. We reserve the right to change the Wardle Nr.Nantwich specification of our products without prior notice. Cheshire CW5 6BN 2012 © Rowlinson Garden Products Ltd...
