Rowlinson Large Chicken Coop Assembly Instructions

6. Nest box

Align the back and side panels of the nest box and secure using 4 x 60mm screws. Position the top bar as shown in the di-
agram, ensure the turn buttons are facing out from the nest box. Secure the top bar using 6 x 60mm screws as shown. At-
tach the nest box floor to the bottom of the wall panels using 8 x 30mm screws.

Important note

Ensure correct
orientation of the
turn buttons
60mm

7. Fitting the nest box

Slide the nest box dividers into the slots in the box. Hook the bottom of the nest box over the frame of the side panel pivot
the nest box upright and reach inside to turn the turn buttons that hold it in place. Place the nest box lid on top of the nest box.
Slot the nest box lid weather strip into the side panel on top of the lid and secure the strip to the lid using 3 x 25mm screws.
Place nest box lid on
top of the nest box. En-
sure the correct orien-
tation of the roof slats
to allow water to run
off the building.

Important information

As timber is a natural material, there are certain weather conditions that may affect the materials properties. In times of excessive dry
spells the material may lose some of its internal moisture causing a certain degree of shrinkage on a panel and in periods of excessive rain
there will be a certain amount of swelling throughout the wooden panels. This process can not be avoided. If you have problems with
certain boards shrinking in dry spells try to decrease the amount of direct sunlight on the building or the amount of air passing over the
building. During hot spells spray water directly onto the panels with the aid of a garden hose.
If in doubt of any aspect regarding the assembly, use or safety of your Chicken Coop please contact us:
Help Line: (Normal Office Hours) 01829 261 121
Email: support@rowgar.co.uk
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
www.rowgar.co.uk
60mm
60mm
Turn buttons
25mm
Slot the nest box weather strip
into the side panel on top of the
lid and secure the strip to the lid
using 3 x 25mm screws.
We constantly improve the quality of our products, occasionally the
components may differ from the components shown and are only
correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2016 © Rowlinson Garden Products Ltd

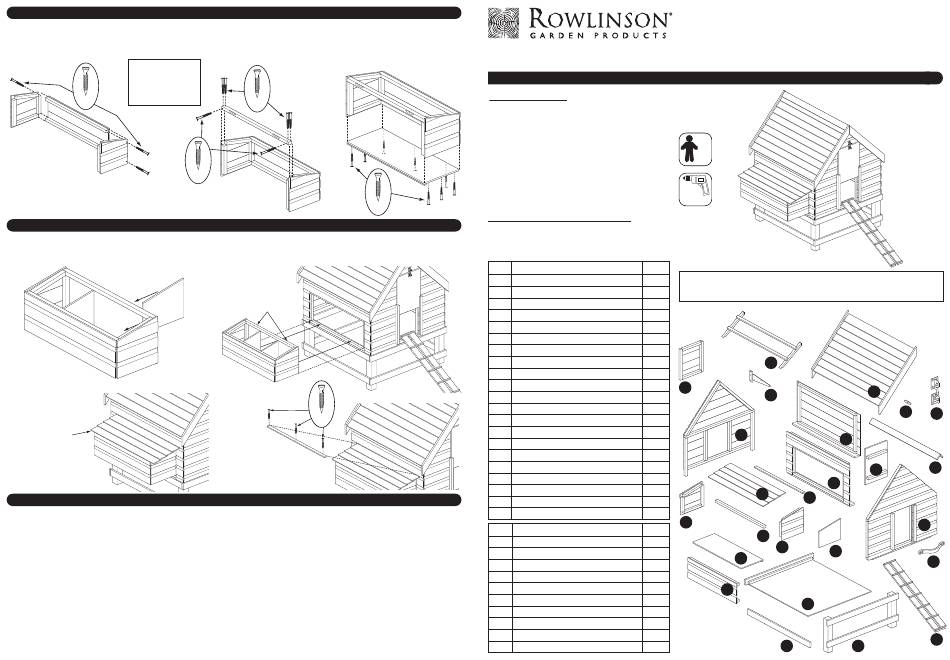

Large Chicken Coop
Assembly Instructions

Before assembly

• We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step by
step guide. The instruction sheet is only
a guide to the assembly.
Certain items may not be shown to scale.
• Check all components prior to assembly
• This product should be assembled
by no less than two people
• Drill all components where indicated
30mm

Recommended tools for assembly

• Cross head screw driver
• Drill
• 2mm drill bit
No. Components
1 Front/back base frame
2 Side base frame
3 Plain side panel
4 Nest box side panel
5 Front apex panel
6 Front door
7 Back apex panel
8 Back door
9 Perch
10 Roof panel
11 Roof ridge
12 Floor
13 Ramp
14 Nest box left side panel
15 Nest box right side panel
16 Nest box back panel
17 Nest box top bar
18 Nest box floor
19 Nest box dividers
20 Nest box lid
21 Nest box lid weather strip
No. Fixing kit
22 Hinges
23 Handles
24 Hook & eye
25 Turn buttons
26 80mm screws
27 60mm screws
28 50mm screws
29 30mm screws
30 25mm screws
31 12mm screws
x 2
Drill
Qty.
Biocidal Products Regulation EU 528/2012
2
Permawood ACQ1900 treated wood is a treated article that incorporates biocidal products: copper hydroxide
and Benzalkoniumchloride. They protect wood against fungal decay /rot/ and insect attack.Keep away from
4
(75x20x1090mm)
food, drink and animal feeding stuffs. Avoid breathing dust when cutting treated wood.
1
1
1
(sliding door)
1
1
(hinged door)
1
1
2
8
1
1
1
1
7
1
1
1
1
2
1
1
14
Qty.
2
3
18
1
3
8
16
10
32
8
30
8
English SS217E
