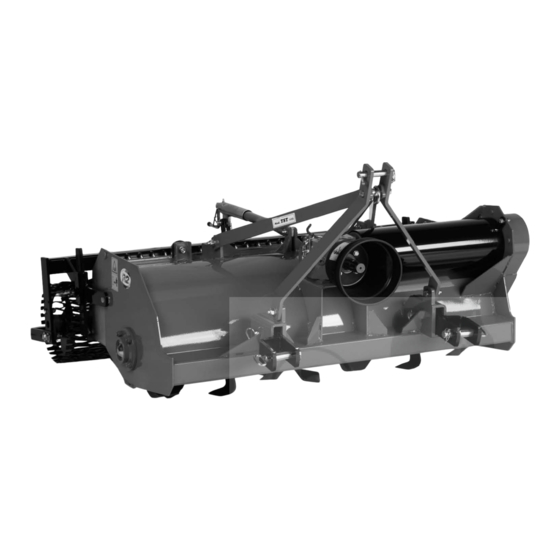

- Page 1 ENGLISH Stoneburier Mod. TST - TSThi Instructions and maintenance manual (Translation of the original instructions)
-
Page 2: Table Of Contents
Index Pag. Introduction..........................3 Machine identification………………………………………………………………………………... 3 Description of the machine and its proper use.…………………………………………………… 4 Technical specifications and dimensions................. Handling and transportation of the machine………………………………………………………. 5 Accident prevention........................6 Components assembly and coupling of the working equipment………………………………... 7 Cardan shaft connection…………………………………………………………………………….. Preparation for use………………….................. -
Page 3: Introduction
1 - Machine identification Each R2 machine has a CE plate with the main details of the R2 company and of the machines. The plate is positioned on the lateral upper part of the machine. -
Page 4: Description Of The Machine And Its Proper Use
-The respect of the rules of use and maintenance established by the manufacturer and gathered in this manual. -the exclusive use of spare parts and original R2 accessories The machine must be used, maintained and repaired only by competent staff. -
Page 5: Technical Specifications And Dimensions
3 - Technical specifications and dimensions (*note 2 mod. hi) Model TST100 TST113 TST130 TST 150 Milling width (Fig. 3 – Ref. A) 100 cm 113 cm 130 cm 150 CM Levelling width (Fig. 3 – Ref. B) 100 cm 113 cm 130 cm 150 CM... -
Page 6: Accident Prevention
15. In case the machine blocks, before making any reparations, turn off the tractor engine and remove the key 16. Always read the tractor instruction booklet before fitting and using the R2 machine. Do not remove or evade the security systems of the tractor; before start working, be sure that the security systems of the tractor work correctly;... -
Page 7: Components Assembly And Coupling Of The Working Equipment
6 – Components assembly and tractor coupling. (*note 5 mod. hi) The assembly must be made on a steady surface or on an homogeneous level floor. During the assembly wear leather gloves and accident-prevention shoes. If pneumatic wrenches are used, wear the ear protections 6.1 Assembly of the three-point linkage frame. -
Page 8: Cardan Shaft Connection
6.3 – Cardan shaft connection Once the machine has been connected to the tractor, verify the exact length of the cardan shaft. For a safety function of the cardan shaft, it is very important to check that in the different working positions the drive hoses fit in half of their length and never less than 1/3 of their length (Fig.7);... -
Page 9: Preparation For Use
7 - Preparation for use Before using the machine it is necessary to perform the following controls with the tractor and the key off: - Check the bolts tightening and that all the elements are in perfect conditions. - Check that the security signs are present and legible. 8 - Working depth adjustment (*note 6 mod. -
Page 10: Machine Use
10 – Machine use (*note 7 mod. hi) 10.1 – Soil working Once you have made the adjustments, it is possible to operate the tractor; the PTO will determinate the hoes rotation . Pressing the forward, the working soil will start. The operator’s position is at the driver’s tractor seat It is important to remember that while driving you should not make any turning maneuvers (the hoes are inserted into the ground) but only small corrections of direction. -
Page 11: Maintenance
11 - Maintenance (*note 8 mod. hi) Operations to be carried out in order to maintain the machine in good working conditions: - Before using the machine: 1. Check the screws tightening of the three-point linkage frame and the good state of repair of the pins and the safety pins of the connection arms. -
Page 12: Hoes Replacement
12 - Hoes replacement The hoes replacement must be made disassembling the roller group and the lateral protections and placing the machine on the back side so that the hoes are parallel to the ground. Place the machine on a stable and safe plane. The hoes are important in the STONEBURIER TST-TSThi because the depth of the stones burying depends on the hoes length. -
Page 13: End Of Work And Storage Of The Machine
13 - End of work and machine storage If the STONEBURIER mod. TST-TSThi must remain unused for a long period, it is necessary to perform the following steps: 1. Wash thoroughly the machine and then dry it. WARNING: do not clean the double joint with clutch with a polishing machine. -
Page 14: Specific References For The Hydraulic Machines
NOTE: the following data which concerns to the engine specifications are given by the manufacturer of the hydaulic motor; for the specifications of the engine application to the R2 machine look at the previous table and to the considerations of the following notes Valore (Funz. - Page 15 When the Mill Grader R2 is disconnected from the tractor , it is recommended to place the protective taps on the pipe fittings. When the Mill Grader R2 is connected to the tractor, the caps remain attached through a ring to the hoses, so that they can be repositioned next time.
- Page 16 (*note 5 mod. hi) In this type of machines the tractor connection is supplied by the reseller. Address to the reseller for the assembly connection instructions of the Stoneburier R2-Tractor. Fig. 21 Hydraulic circuit connection A – G1/2” main ports thread depth 15 B –...
- Page 17 (*note 6 mod. hi) Adjust the working depth using the screw crank (*note 7 mod. hi) (*nota 8 mod. hi) General rules for the hydraulic motor use: Working oil temperatures in the hydraulic system should be kept between +30°C and +60°C. The anti-wear and lubrication properties of the oil are greatly reduced at higer temperatures.
-
Page 18: Guarantee And Certification
- When the equipment is not used in accordance with the manual instructions. - When the equipment has been used incorrectly. The R2 Company reserves the right to modify the data in this manual whenever this is considered necessary for technical or commercial improvements regarding the product itself. - Page 19 NOTE...
