INSTALLATION MANUAL
CFE-Plus MY 01-04
Harness

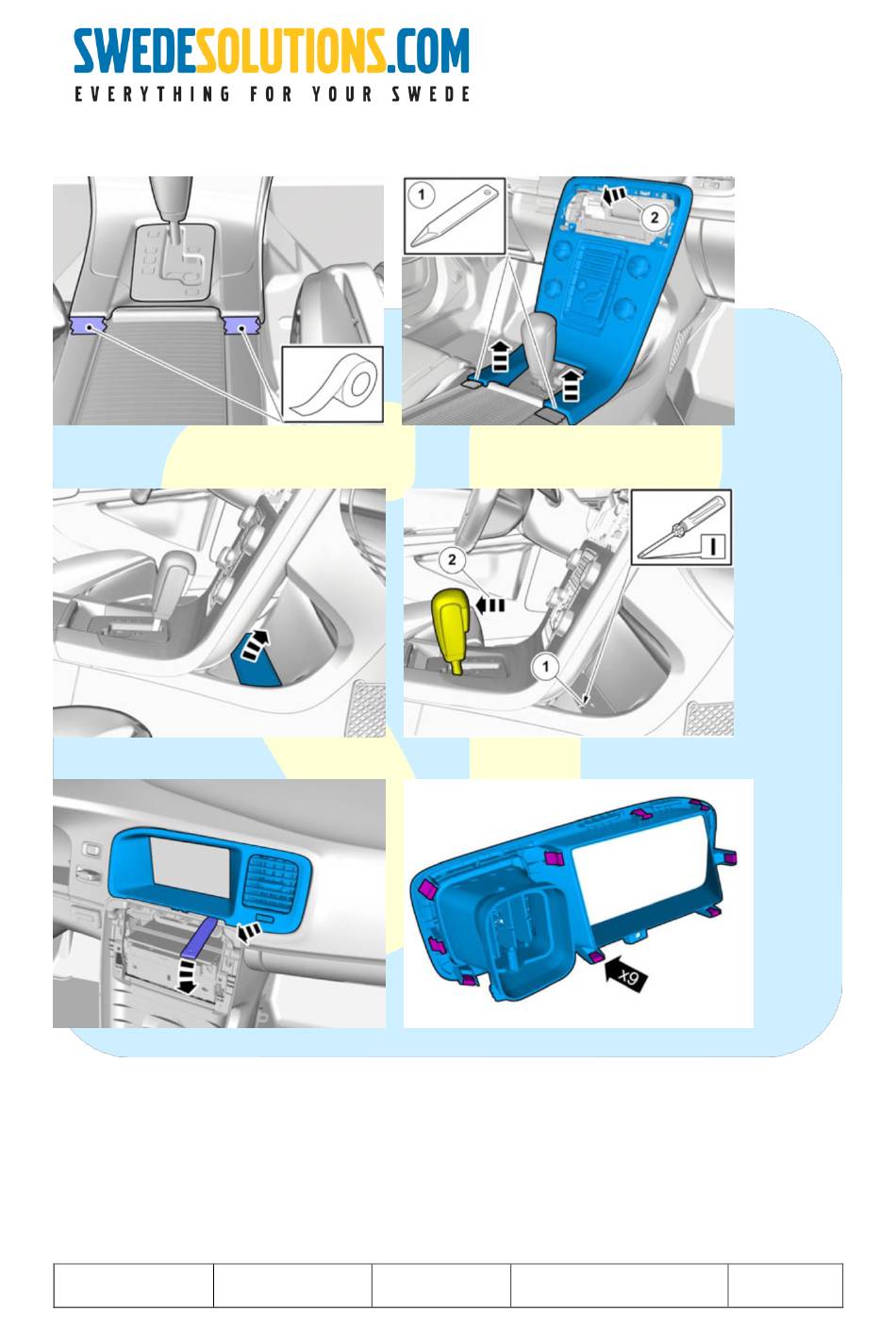

Step4: Apply tape to avoid scratches and remove the central console.
Step 4A : in case you can't get the console removed (Automatic gearbox) without shifting the gear lever to D, unlock the
gear shifter (do not put ignition in position 2 now since several connectors are disconnected!) :
Step 5: (For cars without Sensus Connect only!) remove the cover.
Step 6: (For cars without Sensus Connect only!) remove the screws and tilt the screen forward. Connect the harness(es)
supplied with the set (or bought separately) to the BROWN and/or GREEN connector.
Generally : Reverse camera goes to BROWN connector, front camera or any other additional video usage goes to GREEN
connector. In case a connector is already taken (used), just remove the installed connector. (In such case some pre-wiring is
available in the car, but for this installation it will not be used!)
