Matsuko Switch Box Installation And Operating Manual page 4

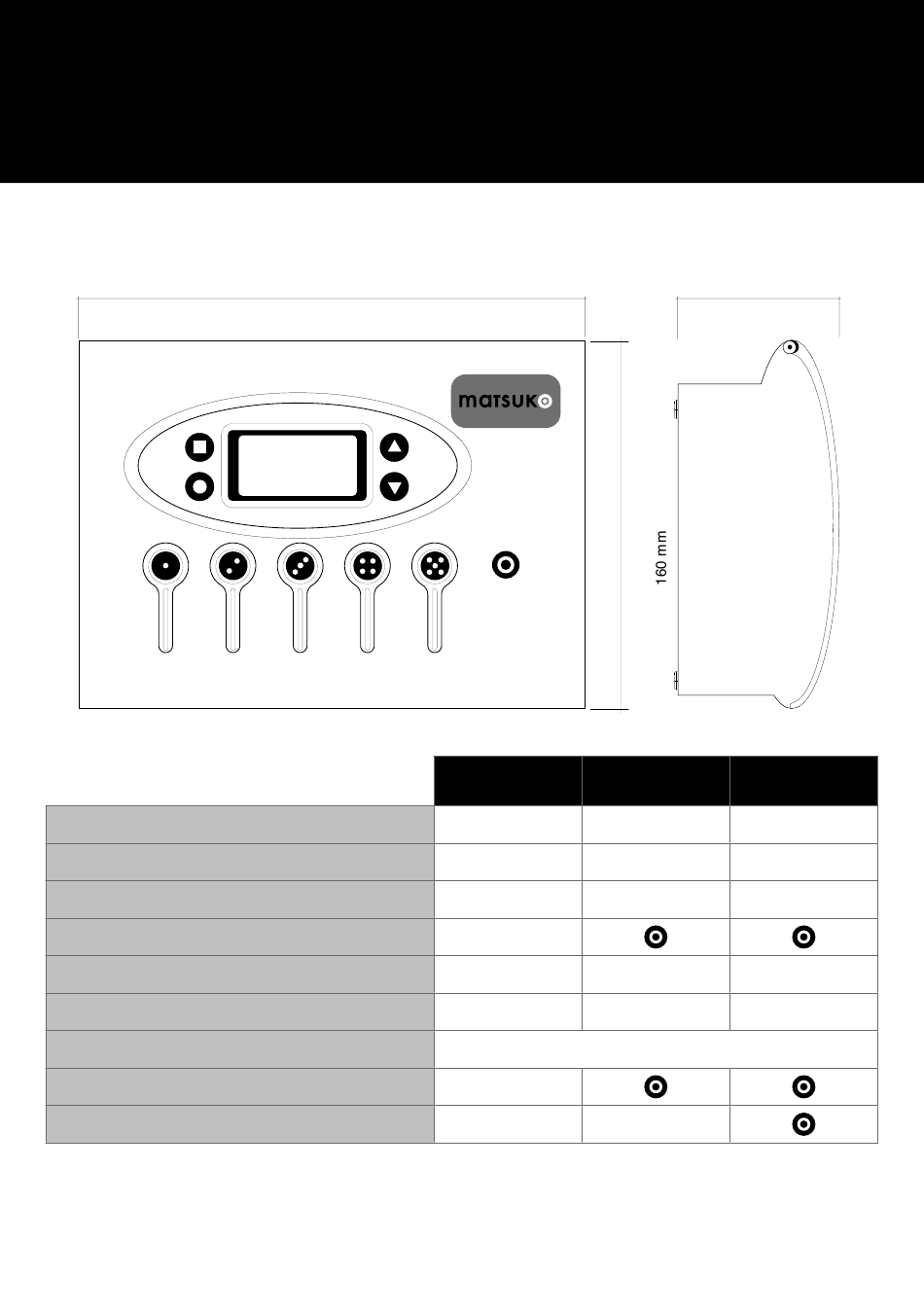

DIMENSIONS
Output
Max. Power Per Line*
Max. Total Output
Programmable
Number of Lines
Model Number
Internal Fuses
Double Layer Capacitor**
Pump Guard + Power consumption
* 1500 Watts per line when installed into the mains household electrical wiring using appropriate cable.
** A double layer capacitor stores electrical energy to remember your programs in case of a power cut for at least 24 hrs
when fully charged. The Matsuko double layer capacitors need minimum 48 hours to be fully charged.
Page 4
226 mm
Switch
Box
220/240 V
1500 W
3000 W
5 Lines
Switch Box
Switch Box
Timer
220/240 V
1500 W
3000 W
–
5 Lines
Switch Box Timer
6.3A G-Fuse 5 mm x 20 mm
–
– –
70 mm
Switch Box
Timer + PG
220/240 V
1500 W
3000 W
5 Lines
Switch Box Timer + PG
