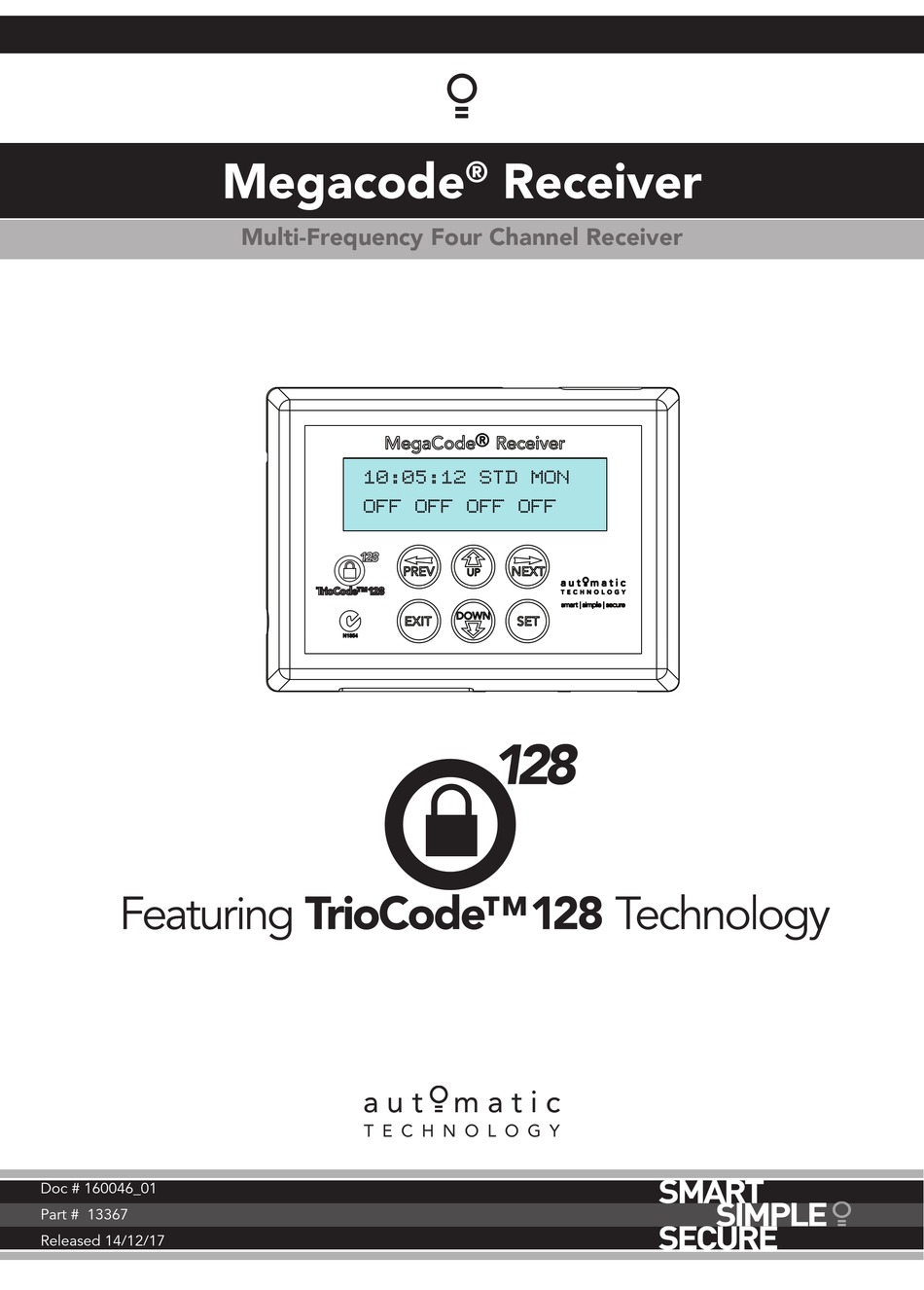

- Page 1 Megacode Receiver ® Multi-Frequency Four Channel Receiver 10:05:12 STD MON OFF OFF OFF OFF Doc # 160046_01 Part # 13367 Released 14/12/17...
- Page 2 Automatic Technology Australia Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an Automatic Technology Australia Pty Ltd Garage Door Opener.
-
Page 3: Table Of Contents
Megacode Receiver ® Multi-Frequency Four Channel Receiver Contents 1. Features 2. Operating Controls 3. Installation 4. Coding Transmitter 4.1 Coding Transmitter Button 4.2 Selecting Function Of The Button 4.3 Returning To Main Screen 5. Remotely Coding Transmitters 5.1 Selecting The Function To Be Coded 5.2 Activate Remote Code Set Mode 5.3 Removing the Battery From the Transmitter 6. -
Page 4: Features
1. Features Thank you for purchasing the Automatic Technology MegaCode Receiver. Designed by our renowned ® engineers to suit garage doors and gate openers, the MegaCode Receiver will provide years of smart, ® simple & secure convenience to your home. - Page 5 Transmitter Management Flexibility Whenever a large number of transmitters are used, managing those transmitters effectively is of great importance. The MegaCode Receiver provides many features ® which enhance transmitter management. Transmitters can be listed by store location, group number, serial number or I.D label. Tools are available which allow transmitters to be Replaced, Deleted and Edited.
-
Page 6: Operating Controls
Antenna connector Clock Battery Prog Input is used to connect the Automatic Technology Handheld Programmer for editing control and receiver functions, accessing diagnostic tools, and activating special features and operating modes. MegaCode Receiver Installation Instructions ®... -
Page 7: Installation
3. Installation 3.1 Receiver Supply The MegaCode receiver is designed to be powered from ® 12V - 24VAC/DC. A suitable 12VDC plug pack also can be used to power up the MegaCode receiver. ® MEGA CODE RM01 Firmware 1.10 Fig 3.1 3.2 Wiring Outputs Each output is able to switch up to 40VDC @ 100mA. -
Page 8: Coding Transmitter
4. Coding Transmitter The MegaCode receiver can store up to five hundred and eleven ID/SN display indicator ® I.D label/Serial number (511) transmitters in its memory. Each transmitter can be allocated Store number an alpha-numeric ID label up to eleven (11) characters in length and each button can be assigned to any channel. -
Page 9: Remotely Coding Transmitters
5. Remotely Coding Transmitters If a TrioCode™128 transmitter is already coded into the MegaCode ® receiver, additional TrioCode™128 transmitters can be coded without being in direct contact with the MegaCode receiver. ® PRESS Existing NOTE: Only the function of the existing transmitter button can be transmitter Fig 5.1 assigned to new transmitter. -
Page 10: Time Clock
6. Time Clock The MegaCode ® receiver provides a programmable Time Clock which can be used to control its outputs on a timed basis at various times of the week. This section details the Time Clock operation and configuration. MENU 7 Time Clock 6.1 Time Clock Operation Fig 6.1... -
Page 11: Specifications
7. Specifications Technical Specifications Power supply 12 - 24V AC/DC Number of Outputs Four (4) Continuous Load Current per Output 100mA @ 40 VDC Transmitter Type TrioCode 128 or Tri-Tran type Receiver code storage capacity 511 x 4 button Transmitter Codes 8. -
Page 12: Appendix
9. Appendix A - Receiver Menu Structure OPERATIONAL BUTTONS: NOTE: The System will automatically return to the main screen after 1. Press PREV/NEXT buttons move to Left/Right. 30 secs if a menu screen is displayed and no buttons are pressed. 2. - Page 13 Appendix A - Receiver Menu Structure Parameter Default Unit Menu Section Menu 4 - Output Three Setup OUTPUT PULSE TIME: This parameter sets the duration of the output pulse 99.9 Sec. Appendix B time. The output pulse time is used only for pulse functions. PULSE TIME UNITS: This parameter sets the units used for the ouput time Sec, Min, Appendix B...
- Page 14 ACTIVITY REPORTS ID: This parameter sets the ID of the controller that Appendix B is sent with the activity report. Contact Automatic Technology for more details. VACATION MODE: Vacation mode can be turned on or off using this Appendix B parameter.
-
Page 15: B - Viewing And Editing Parameters
Appendix B - Viewing and Editing Parameters This section illustrates how to locate, view and adjust parameters. View Mode (No cursor) Parameter name Locating parameters Parameter number in list Refer to Appendix A for Consile Menu Structure. Locate the required parameter and note the MENU number. -
Page 16: C - Diagnostic Tools
Appendix C - Diagnostic Tools The receiver provides several diagnostic tools from within the Diagnostics Menu (Menu 8). This section details the function of each tool and its use. MENU 8 Diagnostics Fig C.1 Navigating To Diagnostics Menu a. Press PREV to navigate to Menu 8 (Fig. -
Page 17: D - Memory Tools
Appendix D - Memory Tools Menu 9.0 Memory Tools (Fig E.8) The Memory Tools accessed from within Menu 9 used to clear the transmitters codes from the openers memory and clear the controller’s memory. Once selected, the PREV or MENU 9 NEXT buttons can be used to view the Memory Tool options. -
Page 18: E - Transmitter Editing
Appendix E - Transmitter Editing Navigating To “Edit Transmitter” Menu a. Press NEXT to navigate to Menu 1 (Fig. E.1) b. Press SET to enter the transmitter edit procedure. c. Press NEXT to enter transmitter list and edit mode. MENU 1 Code Transmitter Fig E.1 Editing Button Function Field... -
Page 19: F - Transmitter Managment
Appendix F - Transmitter Managment Transmitter Listing Facility The MegaCode ® provides a transmitter listing facility which enables the User to find a transmitter location within memory. Once located MENU 1 a stored transmitter can be replaced, deleted, edited, copied or, if Code Transmitter Fig F.1 the location is empty, a new transmitter can be coded. -
Page 20: Warranty And Exclusion Of Liability
