CRX Series Stand Alone Receiver Instructions
CRX Series Stand Alone Receiver Instructions
Thank you for purchasing the ATA CRX Series SecuraCode
Stand Alone Receiver. Familiarise yourself with the following
instructions prior to commencing set up. Store this information
in a safe place for future reference.

OPERATION

The CRX series receivers have relays on board which provide
normally open or normally closed contact for controlling
virtually any electronic device. The relays can be programmed
to any of three modes - pulse, hold or timer. One or both relays
can be programmed with any of the three modes.

SETTING RELAY OPERATING MODES

Pulse Mode - Relay contact is active whilst transmitter buton is
pressed.
Hold Mode - Relay changes state at each press of transmtter
button. Hold, Release, Hold, etc. (like an on/off switch).
Timer Mode - Relay will remain active for the programmed
duration.
Note: Timer mode is selectable only with the ATA Programmer.
Refer to the Programmer's manual for instructions on setting
Timer mode.
RELAY-1 Pulse Mode - Bridge the two pins on JP1 jumper.
RELAY-1 Hold Mode - Remove JP1 jumper or do not bridge
the two pins.
RELAY-2 Pulse Mode - Bridge the two pins on JP2 jumper.
RELAY-2 Hold Mode - Remove JP2 jumper or do not bridge
the two pins.

UNIVERSAL PROGRAMMER

An ATA Universal Programmer can be used to program modes
and store transmitter codes from the receiver. For more details
please contact ATA.

STORING TRANSMITTER CODE

Make sure to install the battery in the transmitter correctly.
1. Press and hold SW1 (for Relay 1) or SW2 (for Relay 2) on
the receiver board.
2. Press the transmitter button you would like to use to control
the device for two seconds.
3. Release the transmitter button and pause for two seconds.
Press the same button again for two seconds.
4. Release SW button.
5. Press the transmitter button to test operation.
Note: To remove a single transmitter's code from the receiver
memory repeat steps 1-5 above .

DELETING ALL STORED TRANSMITTER CODES

1. Turn the power off to the receiver.
2. Press and hold SW1 button.
3. While holding SW1 turn power on again. After 15 seconds
the Coding LED will illuminate to indicate that the
receivers memory has been cleared.
4. Release SW1. All the stored codes should now be
deleted. Confirm this by pressing the transmitters
previously used to operate the device. There should be no
response.
®

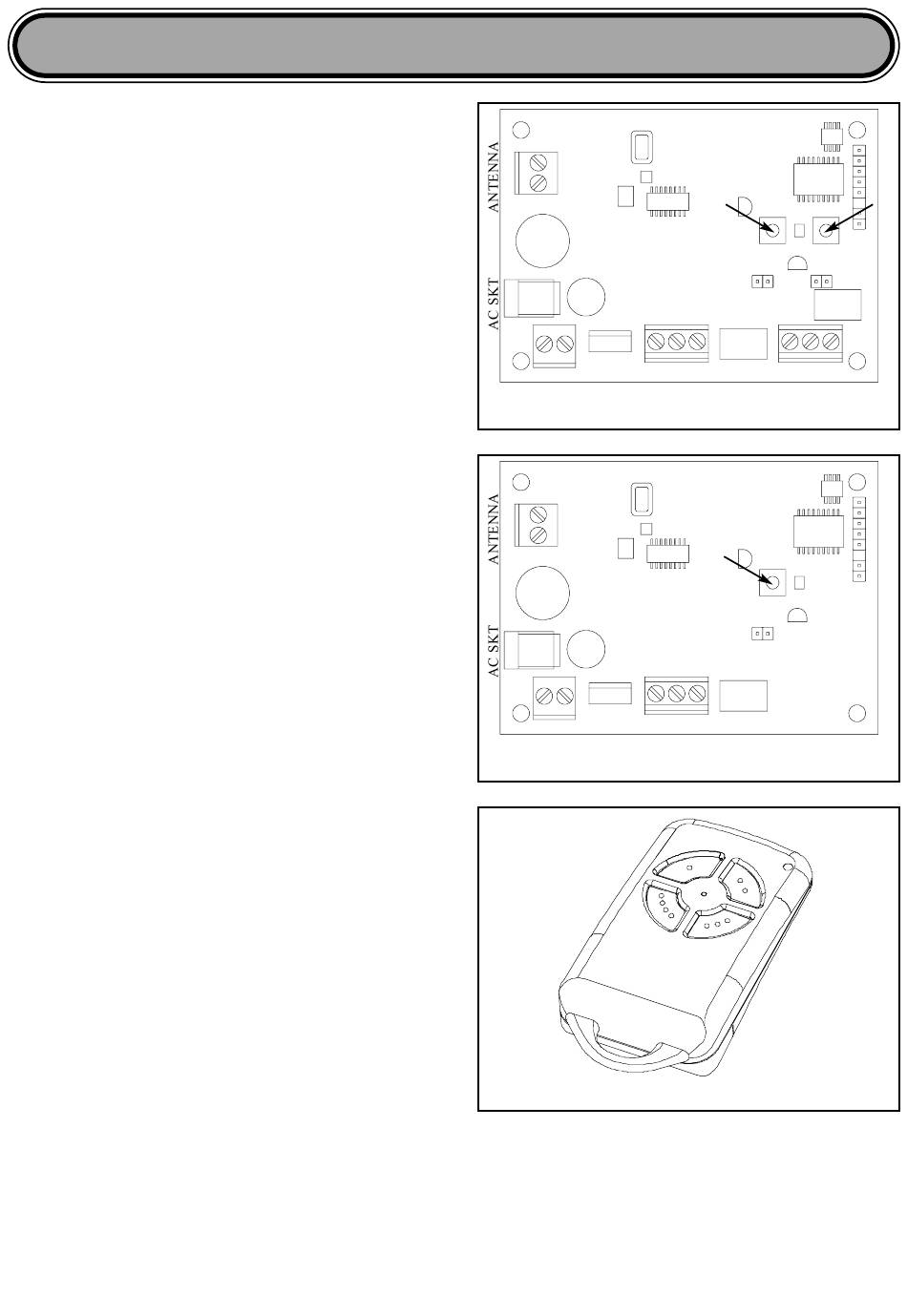

PWR SKT
CRX-2 Stand Alone Receiver
PWR SKT
CRX-1 Stand Alone Receiver
PTX-4 SecuraCode
LED
SW1
JP1
JP2
RELAY 1 SKT
RELAY 2 SKT
LED
SW1
JP1
RELAY 1 SKT
Keyring Transmitter
®
SW2
