Room & Board Fort Bunk Bed Assembly Instructions

The Fort Bunk Bed Assembly Instructions

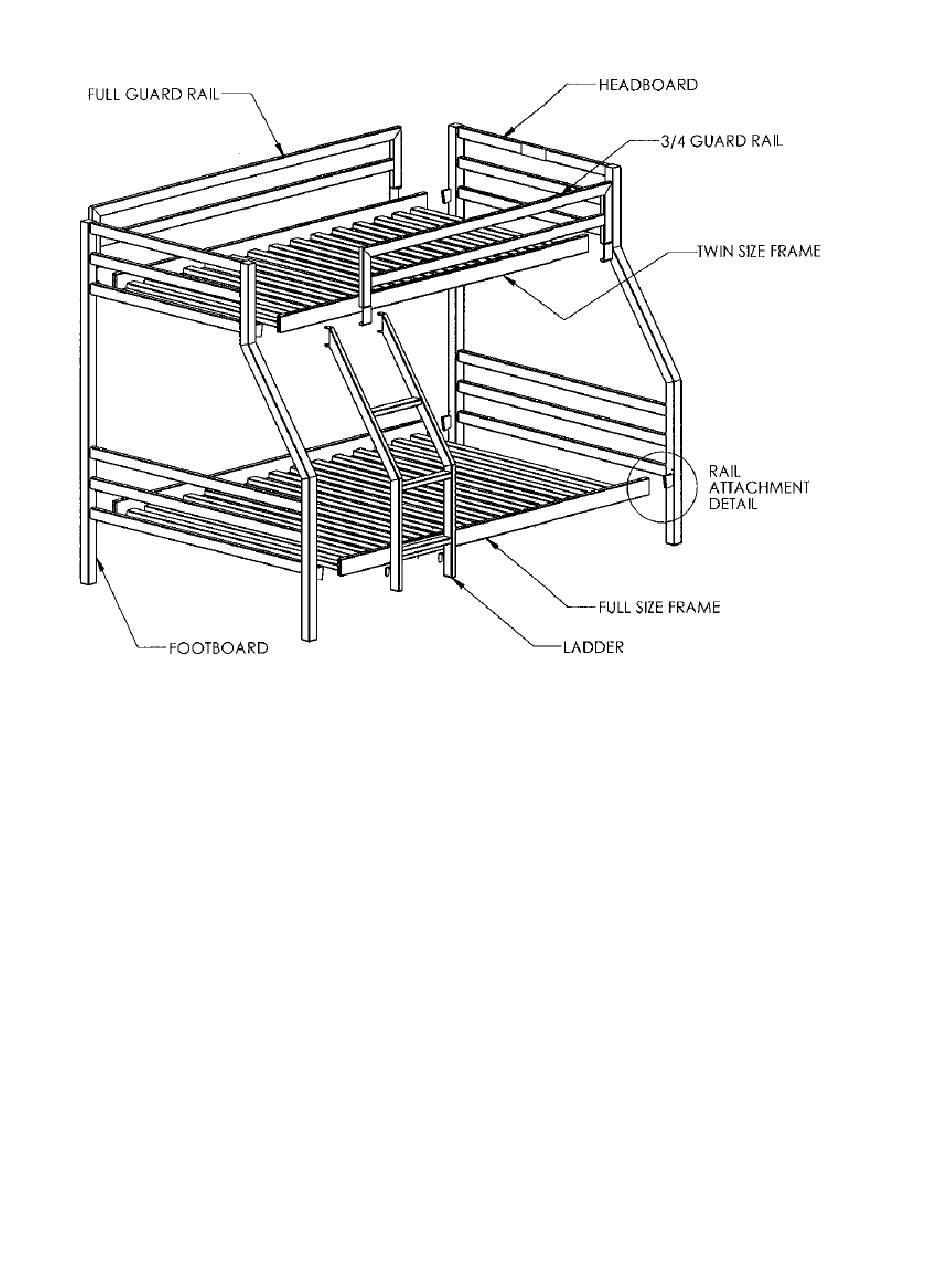

List of Parts:

1 – Headboard

1 - Footboard

1 - Full Size Frame

1 – Twin Size Frame

1- Full guard rail with 2 screw/nut assemblies attached

1- 3/4 guard rail with 2 screw/nut assemblies attached

1- Ladder with 2 screw/nut assemblies attached

6 screw/nut assemblies attached to appropriate component

Each screw/nut assembly includes:

1 Nut – 3/8" Sq. 3" long

2 Screws 10-24 x 1/2"

#10 x 3/4" Self-drilling screws

Phillips screwdriver

Table of Contents

Do you have a question about the Fort Bunk Bed and is the answer not in the manual?

Page 1 The Fort Bunk Bed Assembly Instructions List of Parts: 1 – Headboard 1 - Footboard 1 - Full Size Frame 1 – Twin Size Frame 1- Full guard rail with 2 screw/nut assemblies attached 1- 3/4 guard rail with 2 screw/nut assemblies attached...
Page 2 People required: 2 People are required for assembly. You need a person on each side of the bed during assembly. The 2 people will be required to lift 100 lbs to a height of 55” and hold long enough to slide the rails of the twin rail/slat combination piece over the pockets on the bed ends.
Page 3 end, put the long square nut in between the holes of both C brackets, insert the screws through the C bracket holes (top and bottom) and screw them into the long square nut. Tighten screws with screwdriver. 8. On the same side as the ladder, the 3/4 guard rail should be attached to the end of the bunk without the ladder.
