Imported From Wisconsin - USA
www.kodiakequip.com
1711 South Street
Racine, WI 53404 (USA)
262-833-4025 | (855) 965-0011
© 2020 RPS Corporation
®

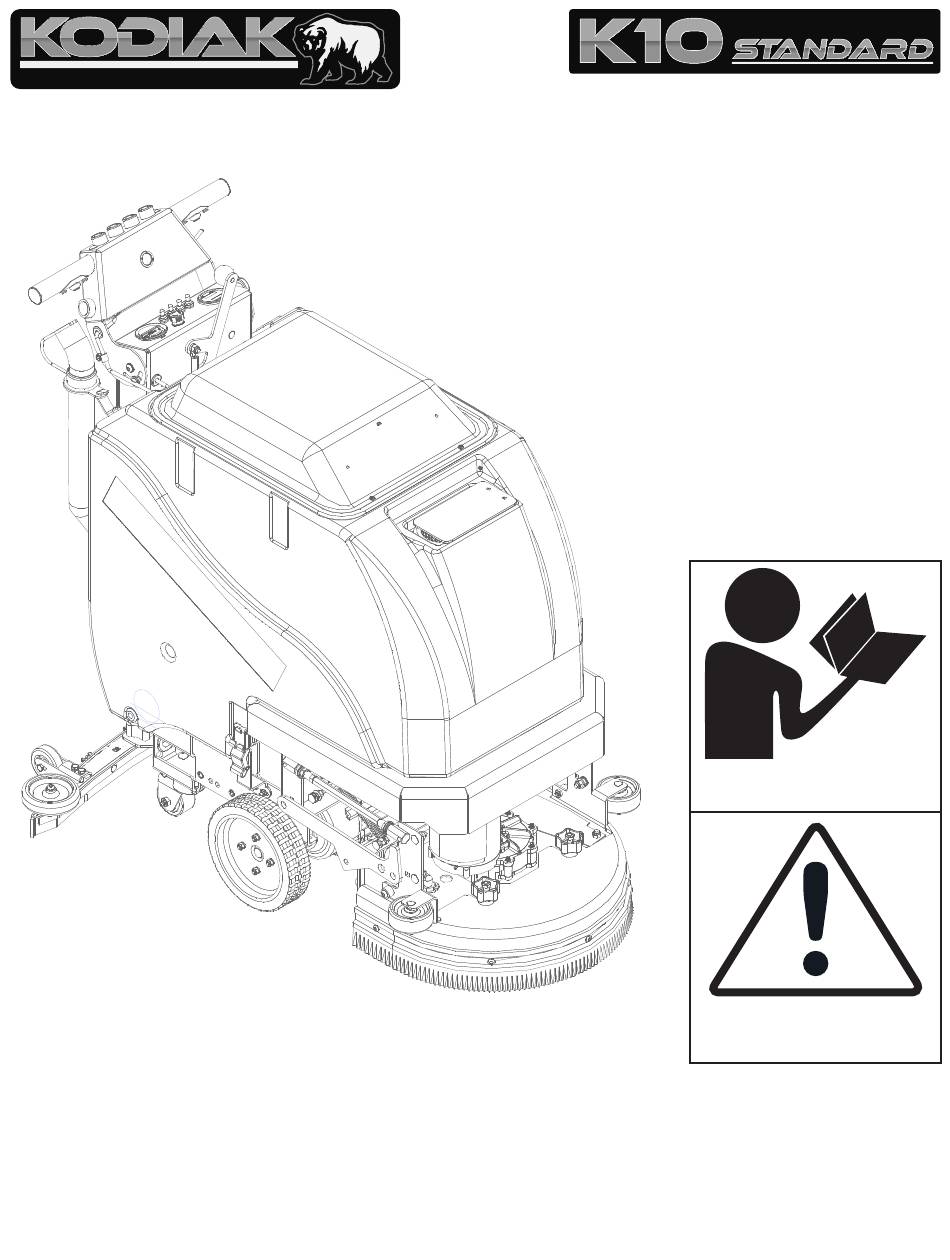

Operating Instructions (EN)
MODELS:
17'' - 20'' Disk Traction
17'' - 20'' Disk Pad Assist
20'' Orbital Traction
Read the Operators Manual
before using the machine.
Read the Safety Messages
before servicing machine.
K-K10-STANDARD-OP-EN
V20.121
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for R.P.S. Corporation KODIAK K10 STANDARD Series
Summary of Contents for R.P.S. Corporation KODIAK K10 STANDARD Series
- Page 1 ® Imported From Wisconsin - USA Operating Instructions (EN) MODELS: 17'' - 20'' Disk Traction 17'' - 20'' Disk Pad Assist 20'' Orbital Traction Read the Operators Manual before using the machine. Read the Safety Messages before servicing machine. www.kodiakequip.com 1711 South Street Racine, WI 53404 (USA) 262-833-4025 | (855) 965-0011...
-
Page 2: Introduction
INTRODUCTION This manual is furnished with each new machine. This manual will allow the Operator to get the best performance out of your RPS manufactured Scrubber-Drier, Sweeper, Burnisher, or Orbital Scrubber. Read this manual thoroughly before operating or servicing the machine. This machine will provide excellent performance, but the best results will be obtained at the most minimum costs if: •... -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Flush Recovery Tank: Clean “Drain Saver”: About This Manual Clean Vacuum Screen: Tip Tank: Table of Contents Squeegee Up: Squeegee Down: Safety Messages Vacuum Motor: Solution Filter: Safety Label Locations Cleaning Solution Filter: Battery Charging Operation Controls External Battery Charging: Machine Components On-Board Charger... -
Page 4: Safety Messages
SAFETY MESSAGES You will see four kinds of safety reminders in this manual: DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. - Page 5 WARNING WARNING The Batteries in this machine produce hazardous Dress safely. Do not wear rings or metal wrist watches voltage which can cause electrical shock, burns and/ when servicing this machine, as they can cause an or electrocution. Always disconnect Batteries before electrical short circuit which can cause serious burns.
-
Page 6: Safety Label Locations
SAFETY LABEL LOCATIONS Read and obey all Safety Labels on your K10-S Floor Scrubber. If you have questions about these labels, ask your tandard supervisor. These images indicate where on the K10-S Safety Labels are located. If ever the labels become illegible, worn off, tandard or torn, promptly report it to your supervisor and replace it. -
Page 7: Operation Controls
OPERATION CONTROLS 1. POWER KEY: Turns power on to the machine 2. SOLUTION CONTROL LEVEL: Controls solution flow 3. BATTERY GAUGE / HOUR METER: Indicates the amount of Battery charge remaining and hours on. 4. SQUEEGEE LIFT LEVER: Raises and lowers the Squeegee 5. -
Page 8: Machine Components
MACHINE COMPONENTS 1 2 3 1. CASTER: Twin casters for stability 2. SOLUTION FILTER: Filters water solution prior to scrubbing 3. SOLUTION FLOW SHUT OFF VALVE: Meters solution rate (GPM) 4. MAIN TIRES: Drive Tires 5. TRACTION DRIVE: Propels machine forward/reverse 6. -
Page 9: Machine Components
MACHINE COMPONENTS 1. FRONT SOLUTION FILL POINT/LID: Front fill port for filling Solution Tank 2. TANK LATCH: Secures Tank to frame 3. SOLUTION SIGHT TUBE AND DRAIN HOSE: Displays how much clean water is in the Tank and drains clean water 4. -
Page 10: Machine Setup
MACHINE SETUP UN-CRATING MACHINE: 1. Lower the Squeegee Mounting Plate by rotating the Squeegee Lift Lever (A) in a clockwise motion (SEE Carefully check the crate for any signs of damage and that BELOW). the Batteries are in the unit. To un-crate the machine, remove banding strips from around the crate. -
Page 11: Adjusting Squeegee
ADJUSTING SQUEEGEE: REMOVING SQUEEGEE: Turning adjustment knob (A) clockwise (tightening) will 1. With the Squeegee in the up position, turn machine lower tips and raise the center of the Squeegee (SEE power off. BELOW). 2. Disconnect Vacuum Hose (A) from Squeegee and loosen both knobs (B) (SEE BELOW). -
Page 12: Installing Edge Pads
INSTALLING EDGE PADS: LEVELING EDGE DECKS: 1. Turn on machine power. NOTICE All Scrubdeck’s should be level at time of machine 2. Raise the Scrubdeck by depressing the Brush switch delivery. If machine Scrubdeck is not level - Contact your to the UP and OFF position and turn machine power Servicing Dealer. -
Page 13: Machine Operation
MACHINE OPERATION PRE-CLEANING CHECKLIST: OPERATING HINTS: Read and understand the Safety Messages section on 1. Observe the amount of solution the machine is Pages 6 and 7 before operating the machine. dispensing on the floor and adjust to the desired flow. To increase the solution flow rate, pull the Solution 1. -
Page 14: One Pass Scrubbing
ONE PASS SCRUBBING: SCRUB ONLY: 1. Turn on machine Power Switch (A), make sure the 1. Turn on machine Power Switch (A) while making sure Speed Control Knob (B) is at a lower setting. the Speed Control Knob (B) is at a lower setting. 2. -
Page 15: Adjust Solution Flow
ADJUST SOLUTION FLOW: DRAINING RECOVERY TANK: 1. Push down on the Solution Flow Lever (A) to decrease Always empty Recovery Tank when refilling the Solution the solution flow and push up on the lever to increase Tank. You can refill the Solution Tank while the Recovery solution flow (SEE BELOW). -
Page 16: Flush Recovery Tank
FLUSH RECOVERY TANK: CLEAN “DRAIN SAVER”: 1. Rinse the Recovery Tank after every use With Recovery Lid open and Tank fully drained: (A). This will prevent heavy build-up on the 1. Remove 2'' Squeegee Intake Hose (A) from bottom of the Tank, foul odors as well as “Drain Saver”... -
Page 17: Tip Tank
TIP TANK: SQUEEGEE UP: 1. Fully drain Solution Tank and the Recovery Tank. 1. To raise the Squeegee off the floor, rotate Squeegee Lift Lever (A) counter-clockwise 2. Remove Squeegee or place in center. all the way to the left (SEE BELOW). 3. -
Page 18: Vacuum Motor
VACUUM MOTOR: SOLUTION FILTER: The solution system has an “Inline Filter” (A) to filter out 1. The machine is equipped with a 24 volt, .75HP Vacuum Motor (A) (SEE BELOW). cleaning solution prior to scrubbing (SEE BELOW). 2. If foam or water gets past the Recovery Tank’s CLEANING SOLUTION FILTER: Vac Screen/Ball system, adjust the bracket 1. -
Page 19: Battery Charging
BATTERY CHARGING Charger Specifications Charger Port (2). While the Charger plug is connected, plug the Charger Power Cord into a grounded 110 Volt • Output voltage of 24 Volts standard wall outlet (3). • Output current of 12 amps max 5. -
Page 20: On-Board Charger
ON-BOARD CHARGER Charger Specifications standard wall outlet (2). • Output voltage of 24 Volts 5. The green Indicator Light (3) will come on and the Charger will automatically begin charging. When • Output current of 12 amps max finished, the Charger will automatically shut off as well as the green indicator light (check Battery gauge). -
Page 21: Battery Maintenance Guide
BATTERY MAINTENANCE GUIDE SAFETY: • Recharge Batteries before putting them back into service DANGER WATERING: Explosive hydrogen gas forms when batteries are • Add water, NEVER ACID, to cells (distilled water charging. An open flame or spark can cause this gas recommended) to explode. -
Page 22: Maintenance
MAINTENANCE DAILY MAINTENANCE: if needed, 8-10 ft/lb MAX. 1. Remove the clean Pads / Brushes. Never use soiled 4. Grease caster swivel and Squeegee pivot point. Pads / Brushes when cleaning. Replace Pads / YEARLY MAINTENANCE: Brushes when they become packed with residue. 2. -
Page 23: K10-Standard Pm Records
K10-STANDARD PM RECORDS CUSTOMER INFORMATION CUSTOMER EMAIL ADDRESS PHONE CITY STATE CONTACT MACHINE INFORMATION MODEL #: SERIAL #: WORK ORDER#: RE-CHARGE COUNTER: CHASSIS HOUR METER: ISOLATOR HOUR METER: NOTE: Isolators need to be replaced on Scrubber Machines at 1000 Hours or Annually BATTERY CONDITION CELL 1 CELL 2... - Page 24 CLEAN AND / OR LUBRICATE IN SPEC REPAIR PROBLEM SOLUTION TANK CONDITION SQUEEGEE PIVOT POINTS & KNOBS SOLUTION FILTER CLEANING SCRUB DECK LINKAGE VISUALLY INSPECT IN SPEC REPAIR PROBLEM DRAIN SAVER VACUUM FLOATS & SCREENS VACUUM HOSES SOLUTION HOSES BLADE RETAINERS & HARDWARE SQUEEGEE WHEELS BRUSH SKIRTS CASTER CONDITION...
-
Page 25: Common Wear Parts
COMMON WEAR PARTS ORBITAL PADS AND SCREENS: DESCRIPTION 24''×14'' 20''×14'' 13''×19'' SCRUBDECK SCRUBDECK White Pad EDGE-4005 Red Pad EDGE-2404 EDGE-4004 Blue Pad EDGE-2403 EDGE-4003 Green Pad EDGE-2402 EDGE-4002 Black Pad EDGE-2401 EDGE-4001 White Driver Pad EDGE-4025 EDGE-4019 60 Grit Sand Screen EDGE-4026 EDGE-4020 80 Grit Sand Screen... - Page 26 COMMON WEAR PARTS ROUND DISK BRUSHES: BRUSHES MODEL 17'' MODEL 20'' DISK DISK Tough Grit 706-17S 706-20S Midi Grit 706-17C 706-20C Light Grit 706-17PS 706-20PS Nylon (.016) 706-17N 706-20N Pad Driver 706-17D 706-20D Pad Driver Pad Retainer #40-433 Pad Driver Spring Clip #40-423 ROUND DISK PADS: NOTICE The ## in Disk Column Denotes Desk Pad Size: 17'', 20''...
-
Page 27: Squeegee Blade Kits & Complete Squeegee Assemblies
SQUEEGEE BLADE KITS & COMPLETE SQUEEGEE ASSEMBLIES: SQUEEGEE MODEL 20'' GUM RUBBER LINATEX BLADE COMPLETE SIZE EDGE BLADE KIT SQUEEGEE ASSEMBLIES 30'' Squeegee Optional 150-770G 150-770L 150-7180 34'' Squeegee Standard 180-770G 180-770L 180-7180 NOTICE Squeegee blade kits include (1) Rear Blade, (1) Front Blade, and (2) Backup Wheels with hardware. - Page 28 BLANK THIS PAGE WAS INTENTIONALLY LEFT BLANK...
- Page 29 1711 South Street Racine, WI 53404 www.rpscorporation.com Tel. US: 800-634-4060 Tel. Int: (001) 262-681-3583 © RPS Corporation 2020...
