THE LIGHTNING FLASH AND
ARROW- HEAD WITHIN THE
TRIANGLE IS A WARNING SIGN
ALERTING YOU OF
"DANGEROUS VOLTAGE"
INSIDE THE RADIO.
DDR-3_381K801A_GB.p65
1
WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
THE EXCLAMATION POINT
CAUTION: TO REDUCE THE RISK OF
WITHIN THE TRIANGLE IS A
ELECTRIC SHOCK, DO NOT REMOVE
WARNING SIGN ALERTING
THE BACK, NO USER SERVICEABLE
YOU OF IMPORTANT
PARTS INSIDE. REFER SERVICING TO
INSTRUCTIONS ACCOMPANYING
QUALIFIED SERVICE PERSONNEL.
THIS RADIO.
DDR-3
FM RDS/DAB digital radio
Operating instruction
!
Please read this manual before use
2004/2/27, 下午 02:09
GB
Advertisement
Table of Contents
Related Manuals for Sangean DDR-3
Summary of Contents for Sangean DDR-3
- Page 1 DDR-3 FM RDS/DAB digital radio Operating instruction WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN THE LIGHTNING FLASH AND THE EXCLAMATION POINT CAUTION: TO REDUCE THE RISK OF...
-
Page 2: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ......2 System reset ..............15 Controls ................3-4 Headphone and optical output sockets ......16 Mains operation ..............5 Display backlight .............. 16 Operating your radio - DAB ..........6 Remote control ..............17 Selecting a station - DAB ..........7 Remote handeset battery replacement ...... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 11. Only use attachments/accessories specified by the manufacturer. 2. Keep these instructions. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is 3. -
Page 4: Controls

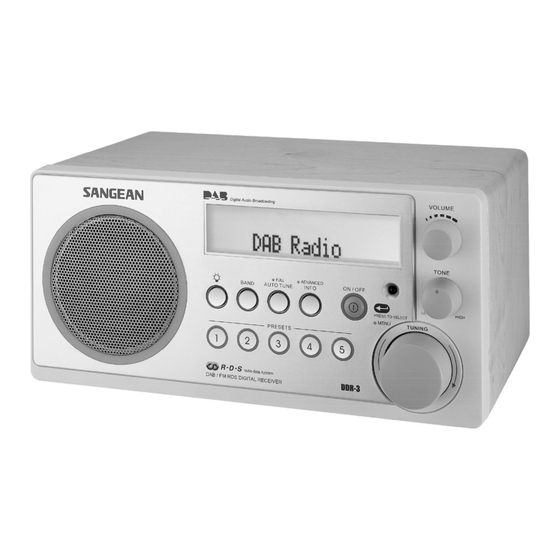

Controls (Front) 1. Light button 7. Infra Red sensor 2. Band button 8. Volume control 3. Auto tune button 9. Tone control 4. Advanced INFO 10. Tuning control/Snooze 5. LCD display 11. Preset buttons 6. StandBy indicator DDR-3_381K801A_GB.p65 2004/2/27, 下午 02:09... - Page 5 Controls (Rear) 12. Telescopic aerial 15. Optical output socket (Toslink) 13. Headphone socket 16. Telescopic aerial holder 14. Deep bass boost switch 17. Mains input socket DDR-3_381K801A_GB.p65 2004/2/27, 下午 02:09...
-
Page 6: Mains Operation
Mains operation 1. Place your radio on a flat surface. 2. Plug the mains lead into the Socket located on the rear of your radio ensuring that the plug is pushed fully into the socket. 3. Plug the other end of the mains lead into a wall socket and switch on the wall socket. -
Page 7: Operating Your Radio - Dab
Operating your radio - DAB 1. Fully extend the telescopic aerial. 2. Press the Standby button to switch on your radio. 3. If this is the first time the radio is used a quick scan of Band III DAB channels will be carried out. The display will show "Autotune Quick scan". -
Page 8: Selecting A Station - Dab
Selecting a station - DAB 1. The top line of the display shows the name of the station currently selected. 2. Rotate the Tuning control to scroll through the list of available stations. Stop rotating the Tuning control when you find the station that you wish to hear. -
Page 9: Secondary Services - Dab
Secondary services - DAB 1. Certain radio stations have one or more secondary services associated with them. If a station has a secondary service associated with it the display will show ">" next to the station name on the station list. -
Page 10: Finding New Stations - Dab
Finding new stations - DAB As time passes new stations may become available. To find new stations proceed as follows:- 1. Press and release the AutoTune button, the display will show "Autotune Quick Scan". Your radio will perform a scan of the channel 10A~12D frequencies. -
Page 11: Manual Tuning - Dab
Manual Tuning - DAB Manual tuning allows you to tune directly to the various DAB Band III channels. 1. Press and hold in the Tuning control until the display shows "Manual tune". 2. Rotate the Tuning control to select the required DAB channel. 3. -
Page 12: Operating Your Radio - Fm
Operating your radio - FM 1. Fully extend the telescopic aerial. 2. Press the Standby button to switch on your radio. The display will show "DAB digital radio" for a few seconds. 3. Press the Band button to select the FM band. 4. -
Page 13: Manual Tuning - Fm
Manual tuning - FM 1. Press the Standby button to switch on your radio. 2. Press the Band button to select the FM band. Fully extend the Telescopic aerial . 3. Rotate the Tuning control to tune to a station. The frequency will change in steps of 50kHz. -
Page 14: Display Modes - Fm
Display modes - FM On FM the bottom line of the display can be set to any of the following modes:- 1. Press the Advanced INFO to cycle through the various modes. a. Scrolling text Displays scrolling text messages such as artist/track name, phone in number etc. -
Page 15: Presetting Stations - Fm
Presetting stations - DAB and FM There are 5 memory presets for each of the 2 wavebands. 1. Press the Standby button switch on the radio. 2. Tune to the required station as previously described. 3. Press and hold down the required Preset button until the display shows e.g. -
Page 16: Setting The Alarm
Setting the alarm Canceling the alarm When the radio is on/standby, repeatedly press and release the Same procedures of setting the alarm, press and release Tuning Advanced INFO button until the lower line of he display shows alarm Control button to switch the alarm off. status. -
Page 17: Headphone And Optical Output Sockets
Headphone and optical output sockets 1. A 3.5mm Headphone Socket located on the rear of your radio is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker. 2. A digital optical output socket is provided on the rear of you radio for connection to a an amplifier, mini-disc or other equipment with a digital optical input. -
Page 18: Remote Control
Remote control 1. Band button 2. Select button 7. Volume up/down buttons 3. Mute button 8. Tuning up/down buttons 4. Auto tune button 9. Preset buttons 5. Info button 6. StandBy button DDR-3_381K801A_GB.p65 2004/2/27, 下午 02:09... -
Page 19: Remote Handeset Battery Replacement
Remote handset battery replacement 1. With the aid of the end of a paper clip slide catch in direction shown. 2. Remove battery holder by pushing holder in direction shown. 3. Remove battery from holder. 4. Replace battery (2025 or equivalent) ensuring that positive side of battery faces you with holder positioned as shown. -
Page 20: Using The Remote Control
Using the remote control The buttons on the remote control have the same functions as front panel controls with two exceptions:- 1. Mute - press this button to mute sound, press again to restore sound. DDR-3_381K801A_GB.p65 2004/2/27, 下午 02:09... -
Page 21: Clock Display
Clock display 1. Your radio will display clock time when in set to StandBy mode. 2. During StandBy mode the clock will receive updates from the last station tuned to before entering stanby mode. When in StandBy mode your radios clock will automatically track Summer\Winter time changes. -
Page 22: General
General Do not allow this radio to be exposed to water, steam or sand. Do not leave your radio where excessive heat could cause damage. It is recommended that the DAB band be used wherever possible as better results in terms of quality and freedom from interference will usually be obtained than on the FM band. -
Page 23: Mains Supply
Mains supply The DDR-3 will operate from a supply of AC 230 volts, 50Hz only. The wire coloured BLUE must be connected to the terminal marked N or coloured BLACK. DO NOT cut off the mains plug from this equipment. If the plug fitted... - Page 24 381K801A DDR-3_381K801A_GB.p65 2004/2/27, 下午 02:09...
