Full Boar FBBMS-20350 Instruction Manual

350mm brick & masonry saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

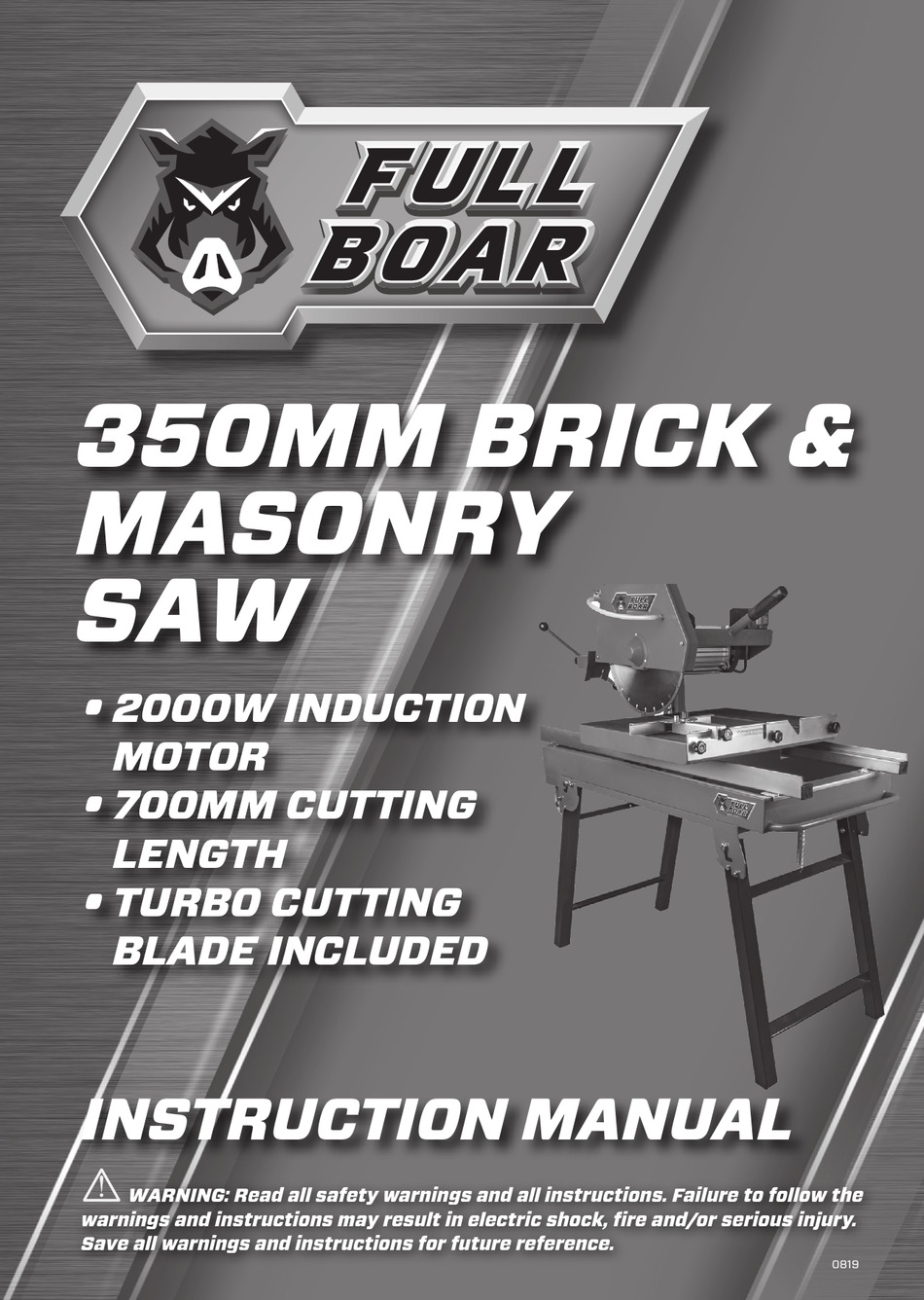

KNOW YOUR PRODUCT
350MM BRICK &
MASONRY
SAW
• 2000W INDUCTION
MOTOR
• 700MM CUTTING
LENGTH
• TURBO CUTTING
BLADE INCLUDED
INSTRUCTION MANUAL
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FBBMS-20350 and is the answer not in the manual?

Questions and answers

Related Manuals for Full Boar FBBMS-20350

Summary of Contents for Full Boar FBBMS-20350

  • Page 1 KNOW YOUR PRODUCT 350MM BRICK & MASONRY • 2000W INDUCTION MOTOR • 700MM CUTTING LENGTH • TURBO CUTTING BLADE INCLUDED INSTRUCTION MANUAL WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 2: Specifications

    SPECIFICATIONS - MODEL NO. FBBMS-20350 Mains voltage: 230-240V ~ 50Hz Input power: 2000W (S6, 40%) Motor speed: 2,800 min¯¹ Diamond disc: Ø 350 x Ø 25.4 x 3.2 mm Cut length: 700 mm Bevel cuts: 0 – 45° Bevel cutting depth max.: 90° – 90 mm / 45° – 65 mm...
  • Page 3 KNOW YOUR PRODUCT (cont.)

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS............Page 02 KNOW YOUR PRODUCT........... Page 02 INTRODUCTION............Page 05 SAFETY INSTRUCTIONS........... Page 05 BEFORE USING FOR THE FIRST TIME...... Page 10 ASSEMBLY..............Page 10 FEATURES AND CONTROLS........Page 13 MAINTENANCE............Page 16 DESCRIPTION OF SYMBOLS........Page 18 CONTENTS..............

  • Page 5: Introduction

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Full Boar tools are interchangeable for Australia and New Zealand.
  • Page 6 GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
  • Page 7 GENERAL POWER TOOL SAFETY WARNINGS (cont.) e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
  • Page 8 BRICK & MASONRY SAW SAFETY WARNINGS IMPORTANT! When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place so that the information is available at all times.
  • Page 9 BRICK & MASONRY SAW SAFETY WARNINGS (cont.) • Deceleration time of the cutting disc - After switching off the machine, the cutting disc needs 40 seconds before coming to a standstill. Wait until the cutting disc has stopped completely, then pull the power plug out of the socket outlet and, if necessary, only then touch the machine’s rotating components.

  • Page 10: Before Using For The First Time

    BEFORE USING FOR THE FIRST TIME KNOW YOUR PRODUCT • The machine must be set up so that it stands firmly. • All covers and safety devices must be correctly attached before the machine is used for the first time. •...
  • Page 11 ASSEMBLY (cont.) Assembling the transport wheels (8) 1. With a washer on either side of the wheel, slide the wheel with washers in the wheel bracket (fig. 5). Washer x 2 Washer x 2 Fig. 5 2. Insert bolt with washer through the hole in the bracket and out the other side to hold the wheel in place.
  • Page 12 ASSEMBLY (cont.) Placing the work table (1) There are 4 rollers to guide the work table (1) and 4 location brackets used to limit the sideway movement of work table, ensure that the work table is correctly put on the machine, wrong install may lead to unstable movement and falling of the work table while moving (fig.

  • Page 13: Features And Controls

    FEATURES AND CONTROLS WARNING! The power supply for this product must be protected by a residual current device rated at 30mA or less. Bevel adjustment (fig. 11) 1. To prevent diamond cutting disc (7) damage ensure the motor head (20) is in the upright position 2.
  • Page 14 FEATURES AND CONTROLS (cont.) Cutting guide (2) (fig. 13) 0° Wing Nut Note: The cutting guide can be used from either the left or the right side of the diamond 90° cutting disc (7) 1. Place the slot on the underside of the 0°...
  • Page 15 FEATURES AND CONTROLS (cont.) Water pump Water cooling will help with better cutting performance and greatly reduce the dust and chipping. The water pump is self priming and provides water lubrication to the diamond cutting disc (7). The pump will provide water to the cutting disc when the machine is switched to the On position as described in On/off switch (12) and the water valve is open as described in Water valve (11).

  • Page 16: Maintenance

    MAINTENANCE WARNING! Before cleaning your brick & masonry saw or carrying out any maintenance procedure, make sure that the motor is off and the brick & masonry machine disconnected from the power supply to prevent accidental starting. Fitting and removing the diamond cutting disc (7) 1.
  • Page 17 MAINTENANCE (cont.) Cleaning the water pump (fig. 22 & 23) Always remove the pump from the bracket before cleaning. 1. Unscrew the suction cover (a) and remove the pump from the bracket. Fig. 22 2. Rotate the rotor cover (b) to remove. 3.

  • Page 18: Description Of Symbols

    MAINTENANCE (cont.) • At regular intervals the trough water must be replaced. Start by removing the work table (1) from the rail (15) and proceed to replace the dirty water with clean water. Ensure the water trough (14) is free from debris Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the brick &...

  • Page 19: Contents

    CARING FOR THE ENVIRONMENT Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice. Recycling packaging reduces the need for landfill and raw materials.

  • Page 20: Warranty

    WARRANTY YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE (see www.bunnings.com.au or www.bunnings.co.nz for store locations) WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE: Australia 1800 069 486 New Zealand 0508 069 486...
