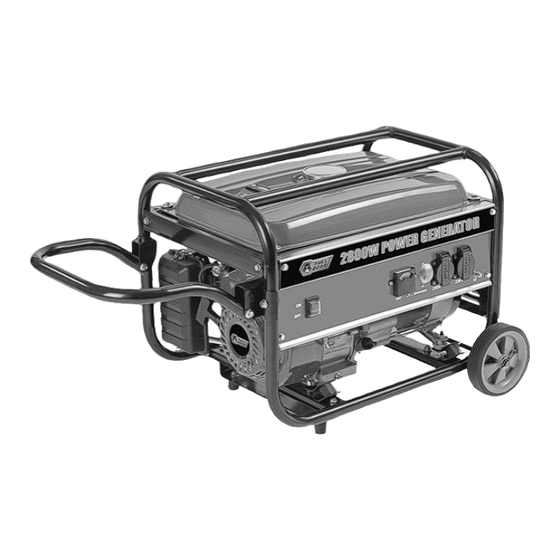

Full Boar FBT-3000 Instruction Manual

Mobile petrol generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

KNOW YOUR PRODUCT
MOBILE PETROL
GENERATOR
• MAX POWER 2800 WATTS
• 2 X 240V OUTLET SOCKETS
• 5.6HP MOTOR
INSTRUCTION MANUAL
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1113

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FBT-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Full Boar FBT-3000

Summary of Contents for Full Boar FBT-3000

  • Page 1 KNOW YOUR PRODUCT MOBILE PETROL GENERATOR • MAX POWER 2800 WATTS • 2 X 240V OUTLET SOCKETS • 5.6HP MOTOR INSTRUCTION MANUAL WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1113...

  • Page 2: Know Your Product

    SPECIFICATIONS - MODEL NO. FBT-3000 Engine Specifications: Generator Specifications: Motor Power: 5.6HP AC Output: 230-240Vac-50Hz Engine Type: 4 Stroke, Air Cooled Continuous Power: 2,300W Fuel Type: 91 RON Unleaded Petrol Max. Power: 2,800W Fuel Tank Capacity: 15 litres Phase: Single Engine Capacity: 208cc Weight: 41.5kg...
  • Page 3 KNOW YOUR PRODUCT (cont.) VOLT OVERLOAD 240V 240V 1. Fuel tank 15 L 11. Oil filler cap 21. Screws size M8 x 40 2. Fuel tank cap 12. Oil drain plug 22. Screws size M8 x 16 3. Fuel gauge 13.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS............Page 02 KNOW YOUR PRODUCT........... Page 02 INTRODUCTION............Page 05 SAFETY INSTRUCTIONS........... Page 05 UNPACKING............... Page 09 RISKS................Page 10 AUTOMATIC VOLTAGE REGULATOR (AVR)....Page 13 ASSEMBLY..............Page 14 PREPARATION............Page 15 OPERATION............... Page 16 MAINTENANCE............Page 18 TROUBLE SHOOTING..........

  • Page 5: Introduction

    INTRODUCTION Congratulations on purchasing a Full Boar Mobile Petrol Generator. Your Full Boar Generator FBT-3000 has been designed for supplying 240V output power. The generator has inbuilt Automatic Voltage Regulator for stable power supply. Intended usage include, Leisure, camping, household mains backup and light trade use.
  • Page 6 SAFETY WARNINGS FOR GENERATORS Do not operate in a hazardous location. Such areas include where there is a risk of • explosion of petrol fumes, leaking gas or explosive dust. Do not operate in a confined area. Exhaust gases, smoke or fumes could reach •...

  • Page 7: Unpacking

    UNPACKING KNOW YOUR PRODUCT If you find anything wrong, do not operate the generator until parts have been replaced or the fault has been rectified. Failure to do so could result in serious personal injury. RISK OF ELECTROCUTION AND FIRE Hazard What could happen How to prevent it...
  • Page 8 KNOW YOUR PRODUCT RISK OF UNSAFE OPERATION Hazard What could happen How to prevent it Operation of All sources of energy include Review and understand all of generator in careless the potential for injury. Unsafe the operating instructions and manner operation or maintenance of warnings in this manual.

  • Page 9: Automatic Voltage Regulator (Avr)

    AUTOMATIC VOLTAGE REGULATOR ( AVR ) This generator has been fitted with AVR Technology which provides automatic voltage regulated power for a continuous uninterrupted stable power supply. The AVR maintains a regulated AC output and reacts quickly to the rapid changes in load/ voltage, therefore reducing the possibility of damage to the generator and the attached equipment.

  • Page 10: Assembly

    ASSEMBLY KNOW YOUR PRODUCT WARNING! During assembly ensure the generator is switched OFF 1. Carefully remove contents from the packaging. 2. Select a firm, level surface on which to assemble the generator Wheels 1. Push the axle (5) through the generator frame, place a washer (23) on the outside (Fig. 1). 2.
  • Page 11 KNOW YOUR PRODUCT PREPARATION Checking the oil IMPORTANT. Ensure that the engine is fully filled with oil. When leaving the factory the generator is emptied of oil in preparation for shipping. The engine of this generator needs to filled with engine oil. Make sure the engine is filled with quality 4 stroke oil, SAE 30 recommended.

  • Page 12: Operation

    OPERATION Starting the Generator Fig. 12 1. Before starting the unit, unplug equipment from the generator 2. Turn the fuel tap ON (Fig. 12). 3. Switch the ON/OFF switch (19) to the ON position (Fig. 13). 4. Turn the choke (13) to the cold start position (Fig.
  • Page 13 OPERATION (cont.) Overload If the overload switch has tripped and cuts off the power, it may be due to overloading. Overloading may not switch the Overload switch but it may shorten the service life of the generator. Be sure that all appliances are in good working order before connecting them to the generator.

  • Page 14: Maintenance

    MAINTENANCE Generator Maintenance Your Generator should be kept clean and dry at all times. The generator should not be stored or operated in environments that includes excessive moisture, dust or any corrosive vapours. If these substances are on the generator, clean with a cloth or soft brush. Do not use a garden hose or anything with water pressure.
  • Page 15 MAINTENANCE (cont.) Engine oil replacement 1. Place generator on a level surface and start up the generator and run for several minutes. 2. Remove the oil filler cap (11) (Fig. 21). Fig. 21 3. Place a oil pan under the generator and remove the drain plug (12) (Fig.

  • Page 16: Trouble Shooting

    TROUBLE SHOOTING Trouble Possible cause Suggested remedy Engine will 1. Low on fuel or oil content 1a. Add Fuel ( ensure fuel is fresh) not start 1b. Fill oil in motor to correct level 2. Generator not sitting 2. Move generator to level ground. on level ground.

  • Page 17: Description Of Symbols

    KNOW YOUR PRODUCT DESCRIPTION OF SYMBOLS CARING FOR THE ENVIRONMENT Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice. Recycling packaging reduces the need for landfill and raw materials.

  • Page 18: Contents

    CONTENTS 1 x Generator 2 x Wheels 1 x Push handle 2 x Push handle holders 1 x Axle 1 x Foot bracket 4 x Bolts size M8 x 40 2 x Bolts size M8 x 16 4 x Washers for wheels 2 x Securing P-clips for wheels 4 x Nuts M8 2 x 10/12 Spanners...
