Full Boar FBT-3300 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

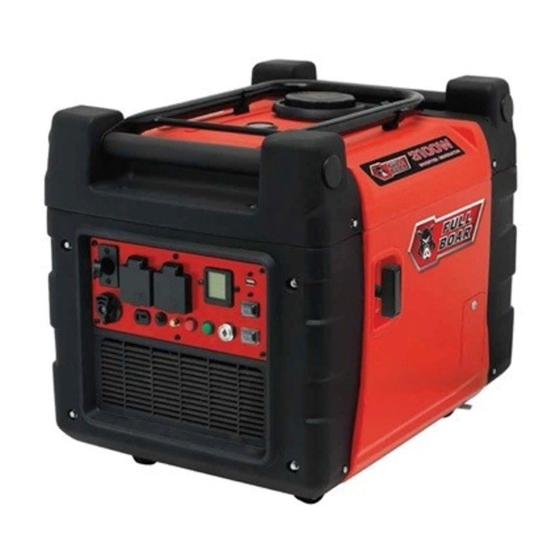

KNOW YOUR PRODUCT
INVERTER
GENERATOR
• 3100W MAX. POWER
• KEY START WITH
REMOTE
• 2 X 240V 15A POWER
OUTLETS
• USB PORT
• LCD SCREEN
INSTRUCTION MANUAL
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1215

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FBT-3300 and is the answer not in the manual?

Questions and answers

Related Manuals for Full Boar FBT-3300

Summary of Contents for Full Boar FBT-3300

  • Page 1 KNOW YOUR PRODUCT INVERTER GENERATOR • 3100W MAX. POWER • KEY START WITH REMOTE • 2 X 240V 15A POWER OUTLETS • USB PORT • LCD SCREEN INSTRUCTION MANUAL WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1215...

  • Page 2: Specifications

    SPECIFICATIONS - MODEL NO. FBT-3300 ENGINE GENERATOR Motor Type: 4-stroke, OHV, 1-cylinder AC Output: 240V Displacement: 270cc 50Hz Engine Speed: 3600/min̄ ¹ 15Amp Cooling System: Forced air cooling 3000W Ignition System: T.D.I 3100W Max. DC output: 12V, 8.3Amp Oil Capacity: 1L...
  • Page 3 KNOW YOUR PRODUCT (cont.) Right Side Left Side 10 11 13 14 240V 5V DC USB REMOTE CONTROL Batt 12V DC 8.3A STOP ECONOMY STOP START 12V DC 8.3A DC OVERLOAD RESET...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS............Page 02 KNOW YOUR PRODUCT........... Page 02 INTRODUCTION............Page 05 SAFETY INSTRUCTIONS........... Page 05 EXPLANATION OF RISKS.......... Page 08 SET-UP................ Page 12 PRE-OPERATION CHECK.......... Page 13 OPERATION............... Page 15 MAINTENANCE............Page 23 TRANSPORTING & STORAGE ........Page 28 TROUBLE SHOOTING ..........

  • Page 5: Introduction

    INTRODUCTION Congratulations on purchasing a Full Boar Digital Inverter Generator. Your Full Boar Digital Inverter Generator FBT-3300 has been designed to give regulated electricity for a continuous, uninterrupted power supply. Inverter technology provides a suitable power source for camping applications, outdoor lights, sound systems, televisions, microwaves and power tools.
  • Page 6 SAFETY WARNINGS FOR GENERATORS IMPORTANT! When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place so that the information is available at all times.
  • Page 7 SAFETY WARNINGS FOR GENERATORS (cont.) • Generator can be operated in light rain and mist. IP23M weather proof rating • Your power tool should only be passed on with these instructions. • Children should be supervised to ensure they do not play with the appliance. WARNING! Do not parallel connect other cables to receptacles, use special jack, or it may cause an electrical shock.

  • Page 8: Explanation Of Risks

    RISK OF ELECTROCUTION AND FIRE Hazard What could happen How to prevent it Improper storage Extension cord can come into Remove extension cord from the of extension cord. contact with hot engine parts generator and store separately resulting in damage. Using a away from generator.
  • Page 9 RISK OF FIRE Hazard What could happen How to prevent it Attempting to fill Fuel and fuel vapours can Turn engine off and allow it to the fuel tank while become ignited by coming in cool before adding fuel to the the engine contact with hot components tank.
  • Page 10 RISK OF INJURY AND PROPERTY DAMAGE WHEN TRANSPORTING GENERATOR Hazard What could happen How to prevent it Fire, Inhalation, Fuel or oil can leak or spill and Transport fuel only in an Damage to Vehicle could result in fire or breathing approved fuel container.
  • Page 11 RISK OF UNSAFE OPERATION Hazard What could happen How to prevent it Operation of All sources of energy include Review and understand all of generator in careless the potential for injury. Unsafe the operating instructions and manner operation or maintenance of warnings in this manual.

  • Page 12: Set-Up

    SET-UP Connecting the battery Fig. 1 The Full Boar FBT-3300 contains a battery to power the starter motor and remote start function. In the case of a flat battery, the generator can still be started with the recoil starter. Note: The battery is shipped fully charged from the factory. To minimize self-discharge, the leads are shipped disconnected from the battery.

  • Page 13: Pre-Operation Check

    KNOW YOUR PRODUCT PRE-OPERATION CHECK Checking the oil Note: The generator is shipped without oil and must be filled before starting. Engine Oil capacity 1L. 1. Be sure to check that the generator is on a level surface with the engine stopped. Fig.
  • Page 14 PRE-OPERATION CHECK KNOW YOUR PRODUCT 3. Carefully add fuel until the red pointer reaches the standard level (Fig. 9) (91RON Unleaded Petrol) Do not use ethanol blended fuels.. Fuel tank capacity is 14L. 4. After refuelling, make sure the fuel cap (1) is closed properly and securely.

  • Page 15: Operation

    KNOW YOUR PRODUCT OPERATION Preparing to start Note. Before starting the engine, disconnect all appliances from the generator. 1. Set the fuel valve (10) to the “ON” position (Fig. 11). Fig. 11 2. Put the electric start key (7) into the engine switch (18), STOP STOP and turn it to “ON”...
  • Page 16 OPERATION (cont.) Key start 1. Follow steps 1 to 2 in the “Preparing to start” section on the previous page. STOP STOP STOP START 2. From the “ON” position turn the engine switch (18) START START to the “START” position (Fig. 14). Fig.
  • Page 17 OPERATION (cont.) 240V Running-in the engine It is advised that the operator should comply with the following instructions for the first 5V DC USB 15 hours of usage: 1. After start-up, the generator should be allowed to warm up at low speed and with no load for five minutes.
  • Page 18 OPERATION (cont.) Digital Display: • When the key is turned to the on position the screen will light and display battery capacity on the bottom line. • Once the generator is running the generator output (U) voltage (top line) should display 240V. •...
  • Page 19 OPERATION (cont.) AC applications Check the total rating of the appliance to be connected and ensure the rating of the appliance/s does not exceed the rating of the generator. 1. Start the engine (see “Starting the engine”). Fig. 21 2. Confirm that the equipment to be used is switched off, and insert the plug of the equipment to be used into the AC socket A (11) (Fig.
  • Page 20 240V AC OPERATION (cont.) DC Applications The DC output on this generator has a rated voltage of 12V with a rated current of 8.3A. STOP OVERLOAD 12V DC 8.3A DC OVERLOAD RESET RESET When using the DC output (9), turn the Econ switch (16) to the OFF position. The appliance outlet (9) will run most 12V appliances fitted Fig.
  • Page 21 OPERATION (cont.) The 12V battery charging outlet (21) is suitable for charging most lead acid type car batteries. Before charging, remove the battery from the vehicle. The battery MUST be totally isolated from any other circuitry. 1. Connect the positive (+, RED) charging cord to the positive battery terminal.
  • Page 22 OPERATION (cont.) 240V Stopping the engine REMO Emergency stop button Fig. 28 12V DC 8.3A STOP If the situation arises that there is no key or remote control STOP on hand and the generator needs to be urgently stopped, the emergency stop button (24) can be used (Fig. 28). Press and hold down the button until the engine stops.

  • Page 23: Maintenance

    MAINTENANCE The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. Inspect or service as scheduled in the table below. WARNING! Shut off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated.
  • Page 24 MAINTENANCE (cont.) Changing oil WARNING! Make sure to turn the engine switch (18) and remote start switch is OFF before draining. 1. Unscrew the screw on the Fig. 32 Fig. 33 right side maintenance cover (5) and remove (Fig. 32). 2.
  • Page 25 MAINTENANCE (cont.) Air cleaner service A dirty air cleaner will restrict air flow to the carburettor. To prevent carburettor malfunction, service the air cleaner regularly. Service more frequently when operating the generator in extremely dirty areas. WARNING! Do not use gasoline or low flash point solvents for cleaning. They are flammable and explosive under certain conditions.
  • Page 26 MAINTENANCE (cont.) Spark plug servicing Only use Torch F7RTC, Champion RN7YC or NGK BPR7ES Spark plugs. To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. 1. Remove the screws on Fig. 40 Fig. 41 the left side maintenance cover (6) and remove (Fig.
  • Page 27 MAINTENANCE (cont.) Muffler - Fire net An uncleaned muffler will make a lot of noise and affect the Fig. 44 engine’s running. Clean the fire net periodically, to ensure normal operation. It is particularly important to maintain the fire net if the generator is being used in dirty/dusty environment.

  • Page 28: Transporting & Storage

    TRANSPORTING & STORAGE When transporting generator: • When transporting a short distance, it is advised that you Fig. 47 use the handle (3). The handle can be folded out from its position on the top of the generator (Fig. 47). Along with the wheels at the base of the unit (20), the foldable handle makes transporting easy over short distances.

  • Page 29: Troubleshooting

    TROUBLESHOOTING Engine will not start Enough Fuel? Add fuel Are the engine switch Turn them both to the and fuel valve “on”? “on” position. Enough lubricating Add good quality oil oil? Pull starter cord a few Is there fuel in the times to allow fuel to carburettor? enter the carburettor.
  • Page 30 TROUBLESHOOTING The equipment that connects to the generator doesn’t start Is there voltage output on the digital display? Does the digital Contact customer display show “OVER” service. error message? Deficient AC output Deficient output. dirty Clean or replace air filter Check air filter.

  • Page 31: Description Of Symbols

    DESCRIPTION OF SYMBOLS Read instruction manual Do not parallel connect other cables to receptacles, use special jack, or it may cause an electrical shock. Extremely hot surface. Do not touch a hot mu er or exhaust system. You may get burned. These parts get extremely hot from operation and remain hot a short time after the unit is turned o .

  • Page 32: Contents

    CONTENTS Digital Inverter Generator Keys and remotes x 2 Convertible screwdriver 20A automotive style fuse Oil lead tube Charging cords and clamps Spare Torch F7RTC spark plug Spark plug wrench USB Adaptor Note. The manufacturer’s liability shall be deemed void if the machine is modified in any way and the manufacturer shall therefore accept no liability for any damages arising as a result of modifications.

  • Page 34: Warranty

    WARRANTY YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE (see www.bunnings.com.au or www.bunnings.co.nz for store locations) WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE: Australia 1800 069 486 New Zealand 0508 069 486...
