INVERTER
GENERATOR
2200W MAX.POWER
2000W RUNNING WATTS
1×240V 15A POWER OUTLET
PARALLEL CAPABLITY
USB PORT
INSTRUCTION MANUAL
WARNING: Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, Fire
and/or serious injury. Save all warnings and instructions for future
reference.
Advertisement
Table of Contents
Related Manuals for Full Boar SD2200i
Summary of Contents for Full Boar SD2200i
- Page 1 INVERTER GENERATOR 2200W MAX.POWER 2000W RUNNING WATTS 1×240V 15A POWER OUTLET PARALLEL CAPABLITY USB PORT INSTRUCTION MANUAL WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, Fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 2: Specifications

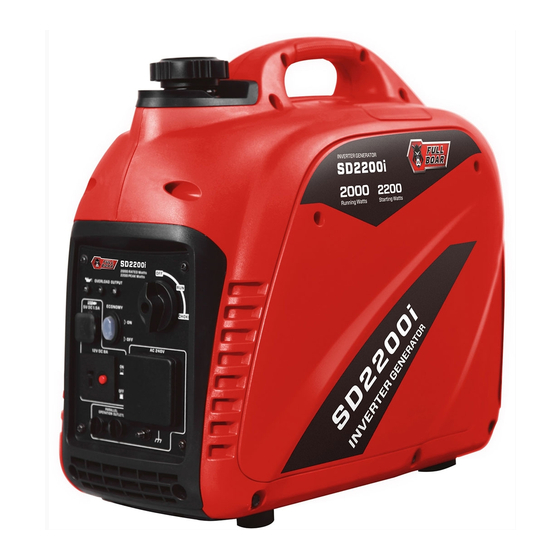

SPECIFICATIONS - MODEL NO. SD2200i GENERATOR ENGINE AC Output: 240V Motor Type: 4-stroke, OHV, 1-cylinder 50Hz Displacement: 98cm 8.3Amp Engine Speed: 4100/min (ECON switch is off) 2000W Rated 2200W Max. Ignition System: C.D.I DC output: 12V, 8.0Amp Oil Capacity: 350ml USB output: 5V, 1.5Amp... - Page 3 KNOW YOUR PRODUCT (cont.)
-
Page 4: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS............Page 02 KNOW YOUR PRODUCT........... Page 02 INTRODUCTION............Page 05 SAFETY INSTRUCTIONS........... Page 05 EXPLANATION OF RISKS ......... Page 08 PRE-OPERATION CHECK.......... Page 12 OPERATION............... Page 14 MAINTENANCE............Page 21 TRANSPORTING & STORAGE ........Page 25 TROUBLE SHOOTING .......... -
Page 5: Introduction
The petrol generator has been designed to output 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Full Boar tools are interchangeable for Australia and New Zealand. - Page 6 SAFETY WARNINGS FOR GENERATORS IMPORTANT! When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place so that the information is available at all times.
- Page 7 SAFETY WARNINGS FOR GENERATORS (cont.) • Generator can be operated in light rain and mist. IP23M weather proof rating • Your power tool should only be passed on with these instructions. • Children should be supervised to ensure they do not play with the appliance. WARNING! Do not parallel connect other cables to receptacles, use special jack, or it may cause an electrical shock.
-
Page 8: Explanation Of Risks
RISK OF ELECTROCUTION AND FIRE Hazard What could happen How to prevent it Improper storage Extension cord can come into Remove extension cord from the of extension cord. contact with hot engine parts generator and store separately resulting in damage. Using a away from generator. - Page 9 RISK OF FIRE Hazard What could happen How to prevent it Attempting to fill Fuel and fuel vapours can Turn engine off and allow it to the fuel tank while become ignited by coming in cool before adding fuel to the the engine contact with hot components tank.
- Page 10 RISK OF INJURY AND PROPERTY DAMAGE WHEN TRANSPORTING GENERATOR Hazard What could happen How to prevent it Fire, Inhalation, Fuel or oil can leak or spill and Transport fuel only in an Damage to Vehicle could result in fire or breathing approved fuel container.
- Page 11 RISK OF UNSAFE OPERATION Hazard What could happen How to prevent it Operation of All sources of energy include Review and understand all of generator in careless the potential for injury. Unsafe the operating instructions and manner operation or maintenance of warnings in this manual.
-
Page 12: Pre-Operation Check
12 V APPLIANCE OUTLET 8.3A BATTERY POWER OVERLOAD LOW OIL ECONOMY 5V DC USB REMOTE CONTROL STOP 240V DC OVERLOAD STOP RESET KNOW YOUR PRODUCT PRE-OPERATION CHECK (cont.) 12V DC 8.3A START Checking the oil 1. Be sure to check that the generator is on a level surface with the engine stopped. 2. - Page 13 PRE-OPERATION CHECK (cont.) KNOW YOUR PRODUCT Refuelling the generator 1. Switch off engine by moving the OFF/RUN/CHOKE switch (6 to the OFF position (Fig. 7) . Fig. 7 2. Remove the fuel cap (1) by rotating in a anti-clockwise direction (Fig. 8). Fig.
-
Page 14: Operation
KNOW YOUR PRODUCT OPERATION Preparing to start Note. Before starting the engine, disconnect all appliances from the generator. 1. Set the OFF/RUN/CHOKE SW.(6) to the “CHOKE” position (Fig. 12). Fig. 12 Fig. 13 Hold the carrying handle firmly with one hand. With the 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OVERLOAD... - Page 15 OPERATION (cont.) WARNING! Limit operation requiring maximum power to 30 minutes. For continuous operation, do not exceed the rated power. In either case, the total wattage of all appliances connected must be considered . WARNING! Do not exceed the current limit specified for any one receptacle. WARNING! Keep the generator away from other electric cables or wires such as distribution network.
- Page 16 12V APPLIANCE OUTLET 8.3A OPERATION (cont.) AC Pilot Indicator Light ECON The green AC Pilot Indicator Light comes on when the engine starts and generates power. DC USB 5V DC US START STOP REMOTE CONTROL Oil Warning Overload AC Pilot Indicator Indicator Indicator...
- Page 17 OPERATION (cont.) AC Applications Before using the AC output, turn the AC switch(24) to the ON position. Check the total rating of the appliance to be connected and ensure the rating of the appliance/s does not exceed the rating of the generator. 1.
- Page 18 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OPERATION (cont.) OVERLOAD LOW OIL ECONOMY 5V DC USB DC Applications 12 V APPLIANCE OUTLET 8.3A The DC output on this generator has a rated voltage of 12V with a rated current BATTERY POWER STOP REMOTE CONTROL 240V...
- Page 19 OPERATION (cont.) 12V battery charging. The outlet and the charging cables(Fig 29 & 30) is suitable for charging most lead acid type car batteries. Before charging, remove the battery from the vehicle. The battery MUST be totally isolated from any other circuitry. 1.
- Page 20 OPERATION (cont.) Stopping the engine To stop the engine in an emergency, simply turn the OFF/RUN/Choke switch to OFF position— under normal conditions, use the following procedure. 1.Shut off all loads and unplug electrical loads from generator panel receptacles. 2.Let engine run at no-load for several minutes to stabilize internal temperatures of engine and generator.
-
Page 21: Maintenance
MAINTENANCE The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. Inspect or service as scheduled in the table below. WARNING! Shut off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated. - Page 22 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OVERLOAD LOW OIL MAINTENANCE (cont.) ECONOMY 5V DC USB STOP REMOTE CONTROL 240V DC OVERLOAD STOP RESET Changing Oil 12V DC 8.3A START • Place generator on a level surface. • Run the generator for several minutes until the engine is warm. Turn off generator. •...
- Page 23 12 V APPLIANCE OUTLET 8.3A BATTERY POWER OVERLOAD LOW OIL ECONOMY 5V DC USB REMOTE CONTROL STOP 240V DC OVERLOAD STOP RESET MAINTENANCE (cont.) 12V DC 8.3A START Air cleaner service • To clean, remove the screws then remove outer casing. •...
- Page 24 MAINTENANCE (cont.) Muffler - Fire net • • Remove screws, then remove shown area of outer casing. • • Check the muffler screen and spark arrester for damage.If damaged replace with Our replacement parts • • • • Install the outer casing and tighten the screws. WARNING! Avoid contacting hot areas of this unit.
-
Page 25: Transporting & Storage
TRANSPORTING & STORAGE When transporting generator: • Do not overfill the tank (there should be no fuel in the filler neck). • Do not operate the generator while it is on a vehicle. Take the generator off the vehicle and use it in a well ventilated place. •... -
Page 26: Troubleshooting
TROUBLESHOOTING Engine will not start Enough Fuel? Add fuel Are the OFF/RUN/ Turn OFF/RUN/ CHOKE switch and CHOKE switch to the “on” position. fuel valve “on”? Enough lubricating Add good quality oil oil? Start a few times Is there fuel in the to ensure that carburettor? fuel enters the... -
Page 27: Description Of Symbols
DESCRIPTION OF SYMBOLS Read instruction manual Hot surface Do not parallel connect other cables to receptacles, use special jack, or it may cause an electrical shock. Extremely hot surface. Do not touch a hot mu er or exhaust system. You may get burned. These parts get extremely hot from operation and remain hot a short time after the unit is turned o . -
Page 28: Contents
CONTENTS 1 x SD2200i Inverter Generator 1 x Convertible Screwdriver 1 x Funnel 1 x Spark Plug Socket 1 x Spark Plug (Spare) 1 x Oil Bottle 1 x Charging Cable And Clamp Set Note. The manufacturer’s liability shall be deemed void if the machine is modified in any way and the manufacturer shall therefore accept no liability for any damages arising as a result of modifications. -
Page 30: Warranty
WARRANTY YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE (see www.bunnings.com.au for store locations) WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE: Australia +617 3879 2185 TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF...
