Ansmann Racing Hot Rod BL Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

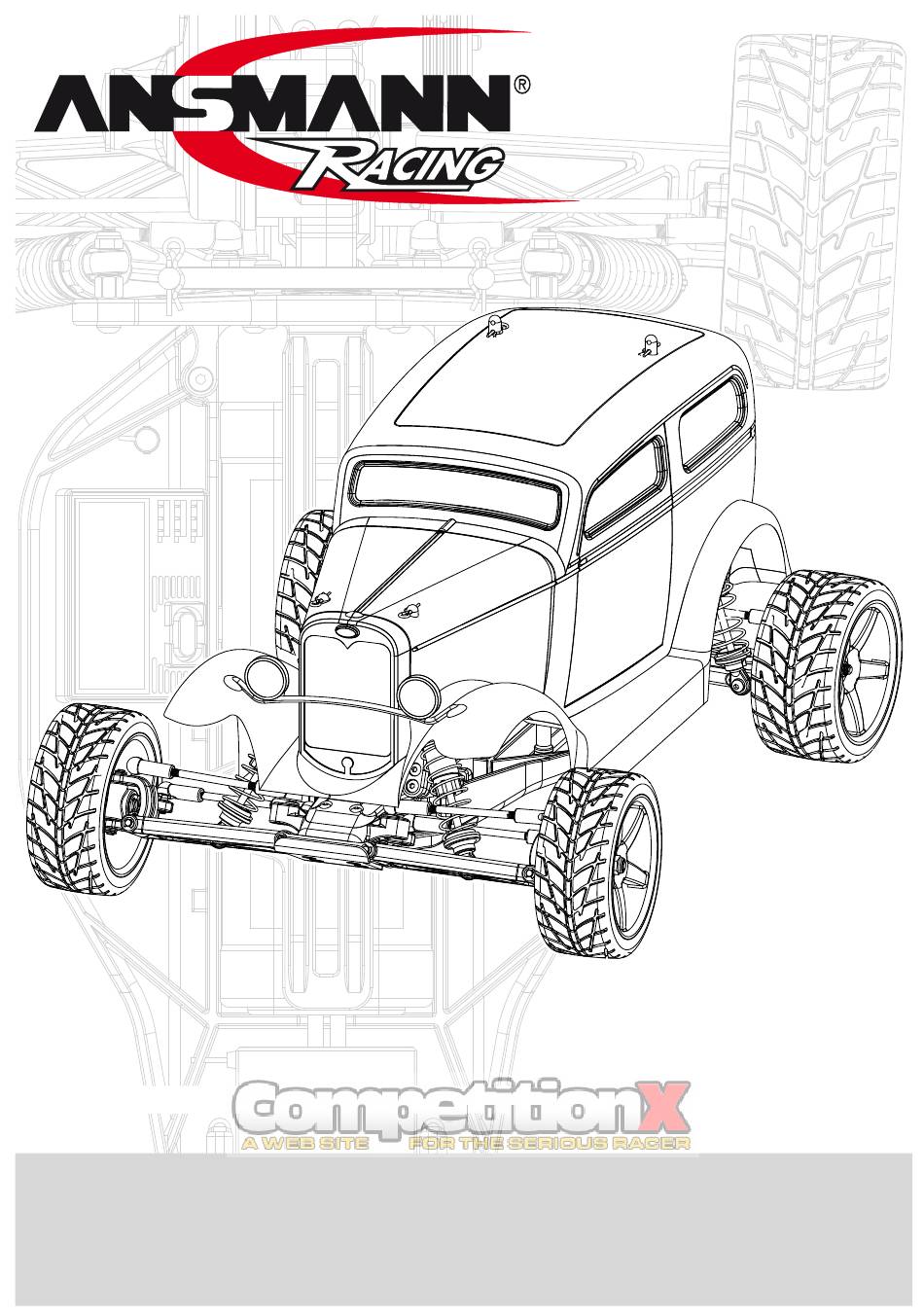

Artikel Nr. / Item No. / Atricle No :
122000011 / 124000008 / 124000021
Länge / Length / Longuer .................................................................................390mm
Breite / Width / Largeur ....................................................................................260mm
...
....................................................................................180mm
Höhe / Height / Taille

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hot Rod BL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ansmann Racing Hot Rod BL

Summary of Contents for Ansmann Racing Hot Rod BL

  • Page 1 Artikel Nr. / Item No. / Atricle No : 122000011 / 124000008 / 124000021 Länge / Length / Longuer ………………………………………………………………………390mm Breite / Width / Largeur …………………………………………………………………………260mm … …………………………………………………………………………180mm Höhe / Height / Taille...
  • Page 3 Betrieb / Operation / D'exploitation Die benötigten Schrauben sind den jeweiligen Bauteilen in kleinen Tüten beigefügt. Schrauben, die für den weiteren Zusammenbau nicht mehr benötigt werden, bitte wieder zurück in den Beutel legen, aus dem sie genommen wurden. Somit entsteht beim Zusammenbau weiterer Komponenten kein Durcheinander! The required screws are attached to the respective compo- nents in small bags.

  • Page 4: Front Suspension

    Aufhängung vorne / Fronst Suspension / Suspension avant Front Suspension 125000499 125000413 125000516 125000455 2.3 E-ring 125000455 ………………………………4 125000499 125000455 3x34.5 Hinge pin front inner ………………………………2 125000455 125000458 Front Suspension 125000458 125000498 125000407 125000481 M3x15 Screw 125000509 ……………4 125000458 Ball stud - long ……………………2 125000481 Assemble left and right sides the same way...
  • Page 5 Lenkung / Steering / pilotage Buffer 125000478 125000478 125000517 125000422 125000517 125000517 125000460 125000422 125000442 125000478 125000422 125000517 4.0 E-ring …………………………1 4.0mm 125000478 3x6x2.5 Ball Bearing 125000517 ………………………4 125000460 Ball stud - silvery 125000478 ………………………1 Buffer 125000443 125000443 Block Carrier 125000459 ……………………………2 125000459...
  • Page 6 Aufhängung vorne / Front Suspension / Suspension avant Front Suspension 125000480(3x10) 125000480(3x10) 125000502 125000409 125000480 M3x8 Screw ………………4 125000480(3x10) 125000480 M3x10 Screw ………………4 125000480(3x10) Front Suspension 125000453 3x27.5 Hinge pin front outer 125000453 2.3 E-ring …………4 ……………8 125000441 4.0 E-ring 125000459 Ball stud - short <Right>...
  • Page 7 Aufhängung vorne / Front Suspension / Suspension avant Front Suspension Front Upper(Right) 125000512 approx.38mm 125000518 Front Upper (Left) 125000512 approx.38mm 125000512 4.8mm Ball End(Long) …………8 Steering Tip 125000518 3x54 Pull rod ………4 approx.34mm Front Suspension Front Suspension 125000480(M3x12) 125000480(M3x10) 125000619 125000480 M3x10 Screw 125000480 M3x12 Screw ………4...

  • Page 8: Differential Gear

    Antrieb / Drivetrain / Conduire Differential Gear 125000475(5x8x2.5) 125000448(17x23x1) 125000519 125000449(2.6x6x3) 125000406(M2.5) 125000476(10x15x4) 125000406 125000446 125000476(10x15x4) 125000519 125000406(2.5x25) 125000448(17x23x1) 125000475(5x8x2.5) 125000491 125000447(2.37) 125000448 17x23x1 Washer 125000475 5x8x2.5 Contain oil ball 125000406 M2.5x25 Screw bearing ……………2 ……1 ……………2 125000476 10x15x4 Contain oil ball 125000447 2.37mm Ball 125000406 M2.5 Nylon Nut bearing...

  • Page 9: Motor Mounts

    Antrieb / Drivetrain / Conduire Transmission <L> 125000493 125000477 125000520 125000440 <R> 125000477 125000493 125000477 5x10x4 Contain oil ball bearing 125000450 …………………4 125000450 5x16.8 idler gear shaft 125000477 ……………………1 125000490 125000440 Top shaft spacer 125000477 …………………1 125000480(3x25) Motor mounts Screw Cement 125000480(3x25) Screw...
  • Page 10 Antrieb / Drivetrain / Conduire Main Gear 125000482 M4 Flanged Nylon Nut …………1 125000438 125000437 125000488 125000437 125000439 approx.18mm 125000439 125000482 Rear Damper Tower 125000480(M3x12) 125000636 125000504 125000480 M3x10 Screw …………4...

  • Page 11: Rear Bulkhead

    Chassis / Chassis / Chassis Rear Bulkhead 125000480 125000501 125000458 125000458 Ball stud - long 125000480 M3x10 Screw ……………2 …………4 Rear Chassis 125000497 125000408 125000481 M3x8 Screw 125000481 125000481 …………2...

  • Page 12: Rear Suspension

    Aufhängung / Suspension / Suspension Rear Suspension 125000497 125000454 3x48 Hinge pin Rear inner 125000500 ……2 125000481 M3x8 Screw 125000454 125000481 ………………………………2 Rear Suspension 125000481 M3x10 Screw …………4 125000481 Assemble left and right sides the same way Beide Sieten gleich montieren...
  • Page 13 Aufhängung / Suspension / Suspension Rear Transmission 125000480 125000480 M3x10 Screw ……………2 125000481 M3x8 Screw 125000481 ……………2 Rear Shock Tower & Rear Fender 125000480 M3x8 Screw 125000480(3x10) …………2 125000480 M3x10 Screw …………4 125000480(3x8) Screws which were semi tightened in P11 125000481(3x8) 125000509 Schrauben bereits in schritt 17 verwendet...
  • Page 14 Antrieb / Drivetrain / Conduire Rear Suspension <L> <R> 125000522 125000496 125000459 125000477 125000477 125000433 125000459 Ball stud - short …………………2 Contain oil ball 125000477 5x10x4 bearing 125000433 2x9.8 Shaft …………………2 ……………4 Rear Suspension 125000496 125000455 2.3 E-ring …………………………4 125000496 3.1x6 Plastic Washer 125000455 3x30.5 Hinge pin Rear outer ………………………2 …………2...
  • Page 15 Antrieb / Drivetrain / Conduire Rear Suspension Rear Upper Hinten oben approx.35mm 125000428 4.8mm Ball End(Long) …………………………4 125000428 125000428 125000518 125000518 3x54 Turnbuckle …………………………2 Rear Suspension Main Chassis 125000481 M3x8 Screw …………2 125000481 M3x10 Screw …………2 125000636 125000481(3x8) Assemble as many times as specified Ture-to -scale diagram Anzahl der ben. Teile Originalmaßstab...
  • Page 16 Dämpfer / Shock absorber / amortisseur Front Rear Shock Absorber Vorne Hinten avant arriére 125000463(125000464) 2.3 E-ring Put a little oil 125000524 …………………………8 125000523 Put a little oil 125000468 125000467 Shock Piston 125000468 125000468(2.8x1.9) …………………4 125000468(2.8x1.9) 125000463 125000464 125000468(3x1mm) 125000468(3x1mm) 125000468(2.8x1.9) 125000468 2.8x1.9 O-ring 125000468(2.8x1.9)
  • Page 17 Dämpfer / Shock absorber / amortisseur Shock Absorber Front Short for adjusting the spring tension Compress the spring and install Long 125000523 125000514 125000524 125000469(Short) 125000514 125000470(Long) Rear Front Suspension 125000480(3x22) 125000480(3x15) 125000482 Short 125000480 M3x15 Screw 125000482 M3 Nylon Nut 125000480 M3x22 Screw …………2 ……2...
  • Page 18 Endmontage / Final assembly / montage final Rear Suspension 125000482 125000480 125000482 M3 Nylon Nut 125000480 M3x15 Screw …………2 ……2 Motor 125000404 125000521 125000479 125000481 M3x8 Screw 125000480 M3x5 Screw 125000481 125000521 125000480 …………2 …………2 125000479 3x7x0.8 Washer 125000521 M3x3 Screw ……………2 ……………1 Assemble left and rear sides the same way...
  • Page 19 Endmontage / Final assembly / montage final 125000479 Steering Servo 125000511 125000480 Select for your servo 125000429 125000460 Steering Servo-H(24T) Steering Servo-S(23T) 125000510(25T) 125000480 Servo 125000511 125000434 125000481 125000429 4.8 Ball End(Short) 125000479 3x7x0.8Washer 125000460 Ball stud - silvery ……………2 …………………1 ………………4 125000434 1.5 Servo spacer...

  • Page 20: Front - Right

    Endmontage / Final assembly / montage final If using loose battery cells Please put the battery panel conversely Battery 125000484 125000506 125000506 125000484 125000506 125000506 Battery Battery 125000484 Small clip …………2 Wheels Rear - left Front - left 125000633 x 2 125000632 x 2 Rear - right Front - right...
  • Page 21 Endmontage / Final assembly / montage final After fitting wheels to tyres,apply instant glue as shown Wheels Nach dem Anbringen der Reifen auf die Felgen, Sekundenkleber verwenden. Après la pose des pneus sur les jantes, utilisez la colle. Front - right Front - left Rear - left Rear - right Body Mounting 125000634 RTR 125000635 KIT Body Mounting O-ring ………2 Small clip ………2...
  • Page 22 Endmontage / Final assembly / montage final Wheels 125000484 125000484 Small clip ……………4 125000482 125000482 M4 Flanged Nylon Nut ……………4 Body Mounting 125000484 125000484 Small clip ………4 Assemble as many times as specified Drill holes with the specified diameter Cut off shaded portion Anzahl Löcher im angegebenen Durchmesser Schattierten Teil abschneiden...
  • Page 23 Diagramm / Diagram / Graphique...
  • Page 24 Ersatzteile / Spareparts / Pièces détachées 125000488 125000475 125000490 125000491 1 pcs. 52T Spur Gear 5x8x2.5 Contain oil ball bearing 28T Spur Gear 80T Spur Gear 6pcs. Zahnrad 52Z Hauptzahnrad 80Z Zahnrad 28Z train 52D Train principal 80D train 28D 125000492 125000493 125000406...
  • Page 25 Ersatzteile / Spareparts / Pièces détachées 125000636 125000509 125000510 125000511 Front body mount 1pcs. Rear body mount 2pcs. 1pcs. Battery column 2pcs. Servomount Front bumper & Motorguard Servo arm Set Servo arm Set Servohalter Rammer und Motorschutz Servo bras Set Servomount Pare-chocs avant et Motorguard 125000637...
  • Page 26 Ersatzteile / Spareparts / Pièces détachées 125000448 125000449 125000450 125000520 2.6x6x3 Stop push ball bearing 17x23x1 Washer idler gear shaft Gearshaft 20T 2pcs. Drucklager Getriebewelle Ritzelwelle 20Z push portant engins de l'arbre engins de l'arbre 20D 125000521 125000453 125000454 125000455 2.3 E-ring 2.3 E-ring 4pcs.
  • Page 27 Ersatzteile / Spareparts / Pièces détachées 125000471 125000632 125000633 125000634 2pcs. 2pcs. 4pcs. 2pcs. 2pcs. Diaphragm Rear Tyre Body RTR Front Tyre Diaphragma Reifen hinten Karosserie RTR Reifen vorne diaphragme 1set. pneu arrière corps RTR pneu avant 125000476 125000477 125000478 125000635 Body KIT 3x6x2.5 Ball Bearing...
  • Page 28 Ersatzteile / Spareparts / Pièces détachées 125000639 Body / brushless Karosserie/Brushless 1set. corps / Brushless...
  • Page 29 - 28 -...
  • Page 30 Service: ANSMANN AG Division Racing Abt. Service Industriestr. 10 97959 Assamstadt Tel.: +49 (0) 629 4204 34 Fax.: +49 (0) 629 4204 47 ANSMANN AG DIVISION RACING Thomas-Mann-Str.63 D-90471 Nuernberg Germany Tel.: +49 (0) 911 817 44 0 Fax.: +49 (0) 911 817 44 22 email: info@ansmann-racing.com...
