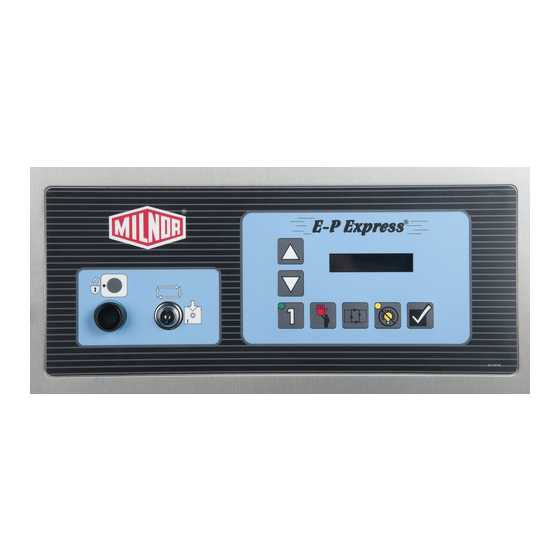

Milnor E-P Express Reference Manual

Hide thumbs Also See for E-P Express:
Table of Contents

Advertisement

Quick Links

Manual Number: MCCXGB01
Edition (ECN): 2020185
Controller Reference
E-P Express
Guardian
PELLERIN MILNOR CORPORATION
®
Gear
®
Controls
Post Office Box 400, Kenner, Louisiana 70063–0400, U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-P Express and is the answer not in the manual?

Questions and answers

Paul Rice
January 16, 2025

Why won't our milnor e-p express spin?

0
1 comments:
Mr. Anderson
February 3, 2025

The Milnor E-P Express may not spin due to the following reasons mentioned in the context:

1. Motor Overloads or Door Interlocks: If any of these contacts open, even momentarily, the machine will stop. To clear this error, the issue must be resolved, and the Start button must be pressed.

2. Inverter Fault: If the microprocessor does not receive an input from the inverter within 14 seconds of starting the formula, the basket will not spin. To recover, press the Next key after resolving the fault.

3. Vibration Switch Tripped: If the vibration switch activates, the machine will stop. A recovery sequence will run, reversing the basket and filling the cylinder with water before attempting to resume operation.

These issues must be resolved before the machine can spin properly.

This answer is automatically generated

0
