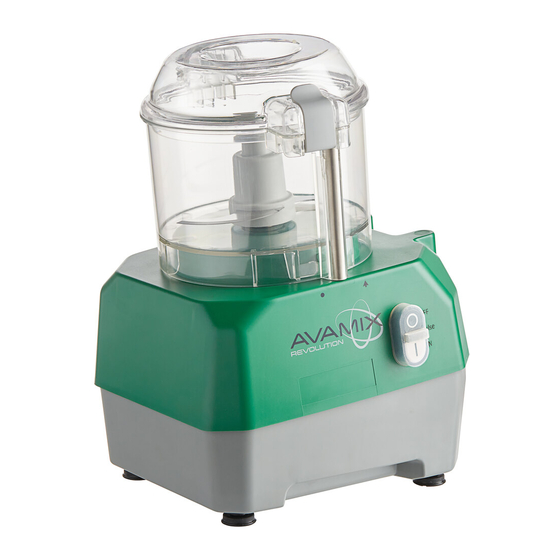

- Page 1 Commercial Food Processors 120V • 1 HP 928BFP34 /CL /GY /SS 928CFP342D 928CFBB342 /D /DC /DG 3 Qt. Batch Bowl Continuous Feed Combination 05/2020...
- Page 2 SAFETY 1. READ AND SAVE ALL INSTRUCTIONS. 2. Do not immerse the food processor in water or any other liquid. Doing so can result in electrical shock. 3. Always unplug from outlet prior to handling or cleaning. 4. Avoid contact with moving parts while operating the food processor. 5. CAUTION: Blades are sharp. Handle carefully. 6.
- Page 3 ASSEMBLY INSTRUCTIONS 3 Qt. Batch Bowl Always use caution when handling blades and discs. It is recommended to use cut resistant gloves while handling the blade or cutting discs. Ensure the machine is unplugged. Place the bowl on the base lining up the arrow to the dot first. Twist the bowl counter clockwise until it locks in place and the two arrows line up.
-
Page 4: Continuous Feed
ASSEMBLY INSTRUCTIONS Continuous Feed Always use caution when handling blades and discs. It is recommended to use cut resistant gloves while handling the blade or cutting discs. Ensure the machine is unplugged. 2. Continuous Feed attachment ships assembled with pusher, ejection disc, slicing disc and grating disc included. 3. Place the continuous feed attachment angled on the base as shown in figure 1B. Twist the attachment into place by twisting it counterclockwise. -
Page 5: Batch Bowl
OPERATING INSTRUCTIONS Keep food processor off when not processing food. Batch Bowl 1. Follow Batch Bowl assembly instructions 2. The stainless steel batch bowl is used with the S blade only. The S-blade is designed for chopping, pureeing, kneading, grinding and blending ingredients. 3. Chopping - To chop fill the bowl about ½ to ¾ full. Chopping is done with starting and stopping the machine frequently. Add your ingredients in small uniform sizes to the processor without overloading the bowl. Using the ON/OFF buttons, watch the product without being directly over the lid opening. Chopping continuously will result in inconsistent results vs. -
Page 6: Cleaning Instructions
CLEANING INSTRUCTIONS 1. Clean the food processor and accessories prior to initial use and after each use. 2. Do not use harsh abrasive-type cleaners or steel wool on any part of the food processor. 3. Remove the bowl or continuous feed attachment by twisting clockwise and lifting the attachment off the base. 4. Never Immerse the motor base in water! 5. Use a small brush and cleaner such as Noble Chemical’s 147SUNBRIGHT to clean the motor shaft and top of motor base. Do not dump water on the base or get water near the motor vents in the base. Rinse and wipe dry. 6. -
Page 7: Parts Diagram
PARTS DIAGRAM PART NAME ITEM # HANDLE PUSHER GUIDER N/A PUSHER #928PFPUSHER UPPER COVER PRESSING #928PFPPLATE PLATE DISC UP INDUCTIVE MAGNET STEEL DRAIN DISC MIDDLE BASE FASTENER DOWN INDUCTIVE ROD BOLT COVER MOTOR UPPER COVER STARTING # 928PFPSCAP CAPACITOR OIL SEAL # 928PFPSEAL CIRCUIT BOARD MOTOR... - Page 8 ACCESSORIES TYPE SIZE ITEM # FOR USE WITH 1/32" 928D132SLC 1/4" 928D14SLC Slicing Disc 1/8" 928D18SLC Continuous Feed 5/32" 928D532SLC 5/64" 928D564SLC 1/4" 928D14GRT 1/8" 928D18GRT Grating Disc Continuous Feed 3/16" 928D316GRT 5/64" 928D564GRT 3/16" 928D316JUL Julienne Disc 5/32" 928D532JUL Continuous Feed 5/64"...
- Page 9 EQUIPMENT LIMITED WARRANTY Avamix warrants its equipment to be free from defects in material and workmanship for a period of 1 year. This is the sole and exclusive warranty made by Avamix covering your Avamix brand equipment. A claim under this warranty must be made within 1 year from the date of purchase of the equipment.
