A3-EVO
2 WAY BOOKSHELF LOUDSPEAKER
OWNERʼS MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the A3-EVO and is the answer not in the manual?

Questions and answers

Summary of Contents for Gold Note A3-EVO

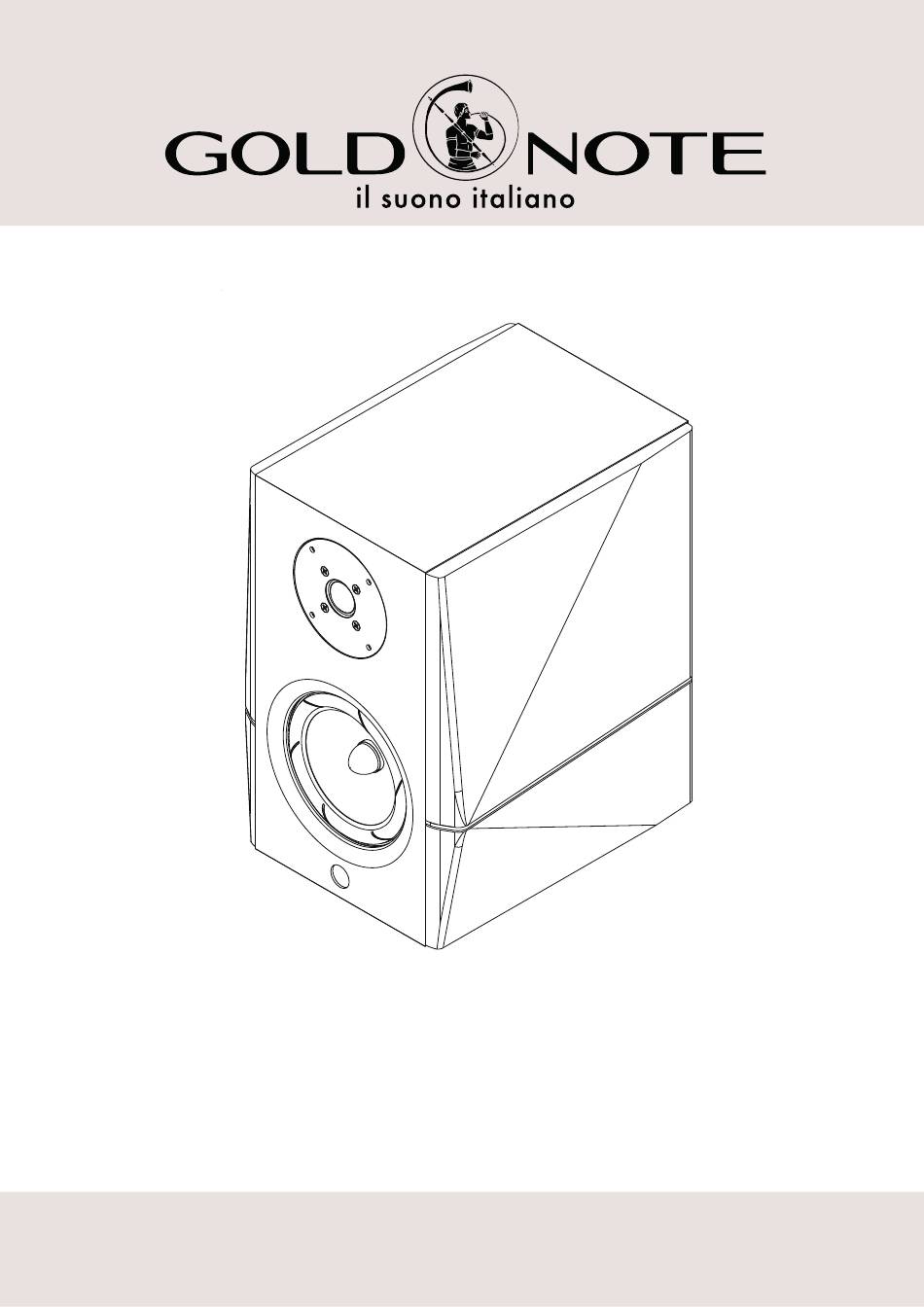

  • Page 1 A3-EVO 2 WAY BOOKSHELF LOUDSPEAKER OWNERʼS MANUAL...
  • Page 3: Table Of Contents

    INDEX INTRODUCTION............................ P. 3 SPECIFICATION AND KEY FEATURES....................... P. 4 CONNECTING THE SPEAKERS......................... P. 5 SPEAKER POSITIONING......................... P. 6 WARRANTY AND SERVICE........................P. 11 TROUBLESHOOTING..........................P. 12 IMPORTANT SAFETY INFORMATION....................... P. 13...
  • Page 4: Introduction

    INTRODUCTION A3 EVO is a two-way bookshelf speaker with bass reflex and a 12cm mid-woofer in a special hardened woven polypropylene and a 25mm dome tweeter in silk. The mid-woofer of A3 EVO is produced by SEAS following our specific instructions in order to obtain a driver in hardened polypropylene which can deliver exceptionally low and powerful frequency responses and a non commune linearity of the transients to achieve the most natural and dynamic reproduction...
  • Page 5: Specification And Key Features

    Mid-woofer: 6’’ SEAS woven polypropylene Suggested power amplifier: min. 10Watt Max power handling: 100W RMS Crossover: 2300Hz at 12dB/Oct. Connectors: Gold Note gold plated nickel free FINISHES Cabinet: Black Side panels: Glossy Italian Walnut or Black Glossy DIMENSIONS AND WEIGHT Dimensions: 357mm W x 1280mm H x 665mm D Weight: Kg.
  • Page 6: Connecting The Speakers

    CONNECTING THE SPEAKERS EXAMPLE CONNECTION Left Right Speaker Speaker Stereo Power Amplifier...
  • Page 7: Speaker Positioning

    SPEAKER POSITIONING Identifying the ideal sound/acoustic room to play an audio system well is not that strictly related to the proportional dimensions of the rooms as many audiophiles believe. The sound played through an audio system is just “Energy diffused in a closed environment” that is all absorbed, reflected and dispersed.
  • Page 8 AUDIO RACKS Though the best position of audio racks usually is not in the middle of the speakers, some special racks such like the Gold Note Galileo can beπlaced there because its special all curved shape helps diffracting the sound waves very well. If you are using standard racks placed in the middle of the speakers, it is preferable to have rather small ones which enhance a better sound focus.
  • Page 9 SPEAKER POSITIONING WIDER STEREO SOUND STAGE SPEAKER POSITION (for some instrumental music, symphonic orcherstra, etc.) Listening Point • The distance of both the speakers to the listening point should be the same • The distance between both the speakers and the side walls should be the same •...
  • Page 10 SPEAKER POSITIONING NARROWER STEREO SOUND STAGE SPEAKER POSITION (Eventually for solo instrument music like piano, guitar and voice etc.) Listening Point WIDE STEREO IMAGE SPEAKER POSITION The closer the two speakers stand the better the focus but worse the wide realistic sound stage. (for some instrument music, synfonic orcherstra etc.)
  • Page 11 SPEAKER POSITIONING DISTANCE BETWEEN SPEAKER AND LISTENING POINT ORIENTATION Listening Point The distance between the speakers should be the same as the one to the listening point. If the distance is shorter, the speaker must be directed to the listening point accordingly(see illustration above).
  • Page 12: Warranty And Service

    WARRANTY AND SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused.
  • Page 13: Troubleshooting

    •The speaker cables are not well •Connect the cables properly. connected to the speaker. •Verify the connectivity and that the •The amplifier does not play music. music is played through a correct source. For spare parts visit the official Gold Note store at: www.akamaiaudio.it...
  • Page 14: Important Safety Information

    Do not use any part of the product for other purposes. For service and problems of any kind, contact qualified Gold Note personnel. Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc.
  • Page 15 IMPORTANT SAFETY INFORMATION 1 Read these instructions. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been 2 Keep these instructions. spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate 3 Heed all warnings.
  • Page 16 NOTES...
  • Page 17 NOTES...
  • Page 18 NOTES...
  • Page 20 Gold Note Audio Gold Note Akamai S.r.l. service@goldnote.it www.goldnote.it...
