Gold Note A3-EVO Owner's Manual

2 way bookshelf loudspeaker
Hide thumbs Also See for A3-EVO:

Advertisement

Quick Links

A3-EVO
2 way Bookshelf Loudspeaker
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the A3-EVO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gold Note A3-EVO

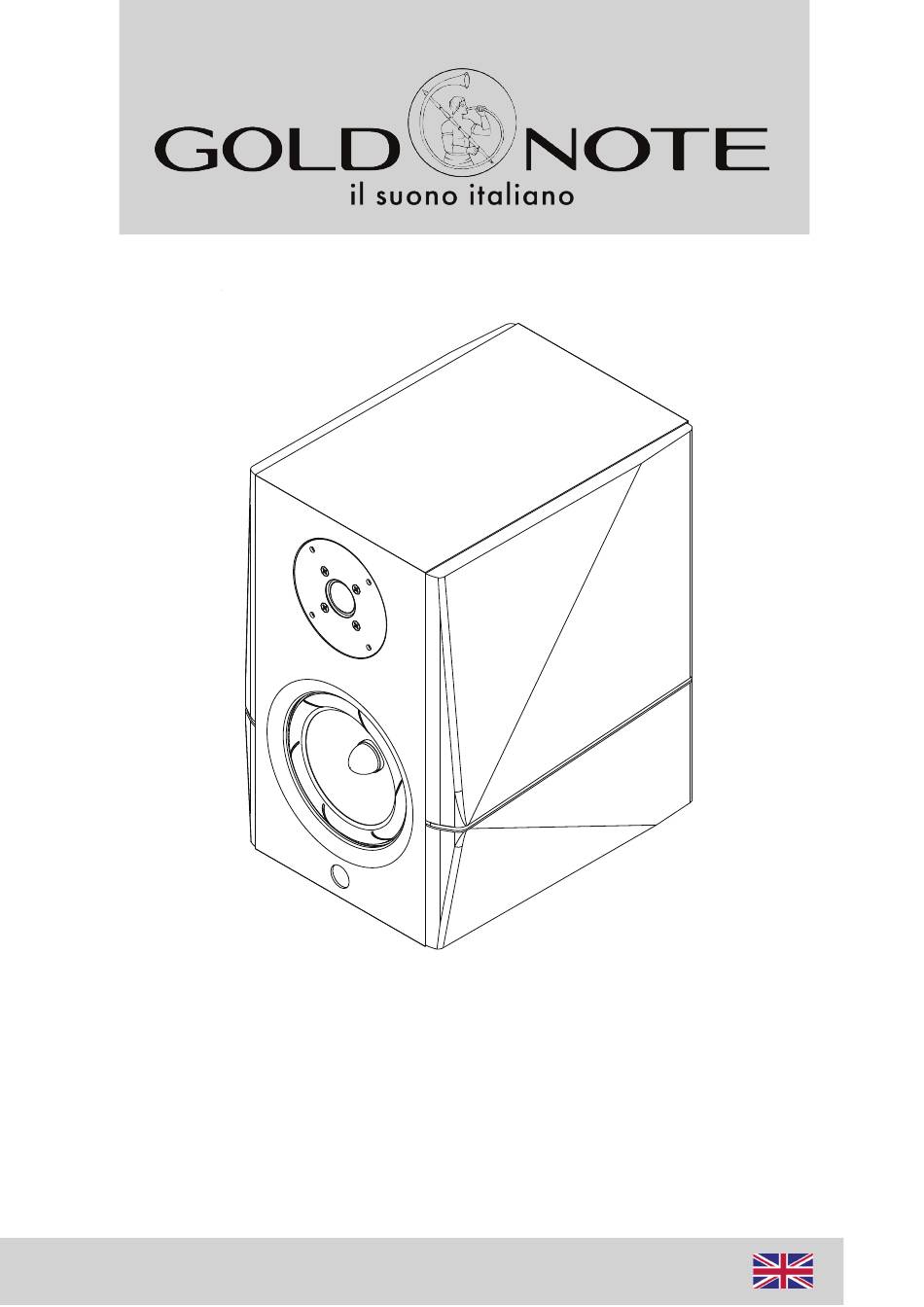

  • Page 1 A3-EVO 2 way Bookshelf Loudspeaker OWNER’S MANUAL...
  • Page 2: Important Safety Information

    The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit This appliance has a serial number located on the rear panel. Please record the model and serial numbee and retain them for your records.
  • Page 3 IMPORTANT SAFETY INFORMATION 1 Read these instructions. normally, or has been dropped. 2 Keep these instructions. • Do not expose this apparatus to drips or splashes. • Do not place any objects filled with liquids, such as vases, on 3 Heed all warnings. the apparatus.
  • Page 4 INTRODUCTION A3 EVO is a two-way bookshelf speaker with bass reflex and a 16cm mid-woofer in a special hardened woven polypropylene and a 25mm dome tweeter in silk. The mid-woofer of A3 EVO is produced by SEAS following our specific instructions in order to obtain a driver in hardened polypropylene which can deliver exceptionally low and powerful frequency responses and a non comune linearity of the transients to achieve the most natural and...
  • Page 5 SPECIFICATION and KEY FEATURES KEY FEATURES: 2 WAY REAR BASS REFLEX BOOKSHELF SPEAKER 16cm ultra rigid woven polypropylene cone driver mid-woofer , 25mm pure silk dome Frequency response: 45-20000Hz ±3dB tweeter, rear aluminum bass reflex Sensitivity: 87dB SPL 2,83Vs/1m Tweeter: 25mm soft elliptical dome driver Midwoofer: 16cm ultra rigid woven polypropylene cone driver Suggested power amplifier: 20-100W...
  • Page 6: Connecting The Speakers

    CONNECTING the SPEAKERS Example Connection Left Right Speaker Speaker Stereo Power Amplifier OWNER’S MANUAL page 5...
  • Page 7: Speaker Positioning

    SPEAKER POSITIONING Identifying the ideal sound/acoustic room to play an audio system well is not that strictly related to the dimen- sion proportion of the rooms as many audiophile believes. The sound played through an audio system is just “Energy diffused in a closed environment” that is all, absorbed, reflected and dispersed.
  • Page 8 AUDIO RACKS Though the best position is not in the middle of the speaker some special racks such like the Gold Note Galileo because the special all curved shape helps diffracting the sound wave very well. In case of standard racks to put in the middle of the speakers is preferable to have small ones enhance a better sound focus.
  • Page 9 SPEAKER POSITIONING WIDER STEREO SOUND STAGE SPEAKER POSITION (for some instrumental music, symphonic orcherstra, etc.) Listening Point WIDE STEREO IMAGE SPEAKER POSITION • The distance from both the speakers to the listening point should be the same (for some instrument music, synfonic orcherstra etc.) •...
  • Page 10 SPEAKER POSITIONING NARROWER STEREO SOUND STAGE SPEAKER POSITION (Eventually for solo instrument music like piano, guitar and voice etc.) Listening Point WIDE STEREO IMAGE SPEAKER POSITION As Closer is the distance between the two speakers as better focus but worse wide realistic (for some instrument music, synfonic orcherstra etc.) sound stage.
  • Page 11 SPEAKER POSITIONING DISTANCE BETWEEN SPEAKER AND LISTENING POINT ORIENTATION Listening Point The distance between the speakers should be the same of the one to the speakers. If the distance is shorter the speaker must be directed to the Listening point accordingly. Empirical tests are necessary to find the right proportion between wide stereo sound stage focus and crispy details OWNER’S MANUAL...
  • Page 12: Warranty Registration

    WARRANTY WARRANTY REGISTRATION To validate the warranty is necessary to register the unit on the Gold Note inter- net web site within 15 days from the purchase on the appropriate area of the web site: http://www.goldnote.it/ If the unit is not registered correctly or is been purchased from a different coun- try of the purchaser origin/home the unit will not be covered by any warranty and the eventual registration refused.
  • Page 13 •the speaker cables are not well connected to the speaker. •verify connectivity and music played •the amplifier does not play music through a correct source For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/ OWNER’S MANUAL page 12...
  • Page 14 USER NOTE OWNER’S MANUAL page 13...
  • Page 15 USER NOTE OWNER’S MANUAL page 14...
  • Page 16 Via della Gora, 6 Montespertoli (Florence) Italy 50025 Tel. + 39 0571 675005 Fax. + 39 0571 675013 www.goldnote.it...
