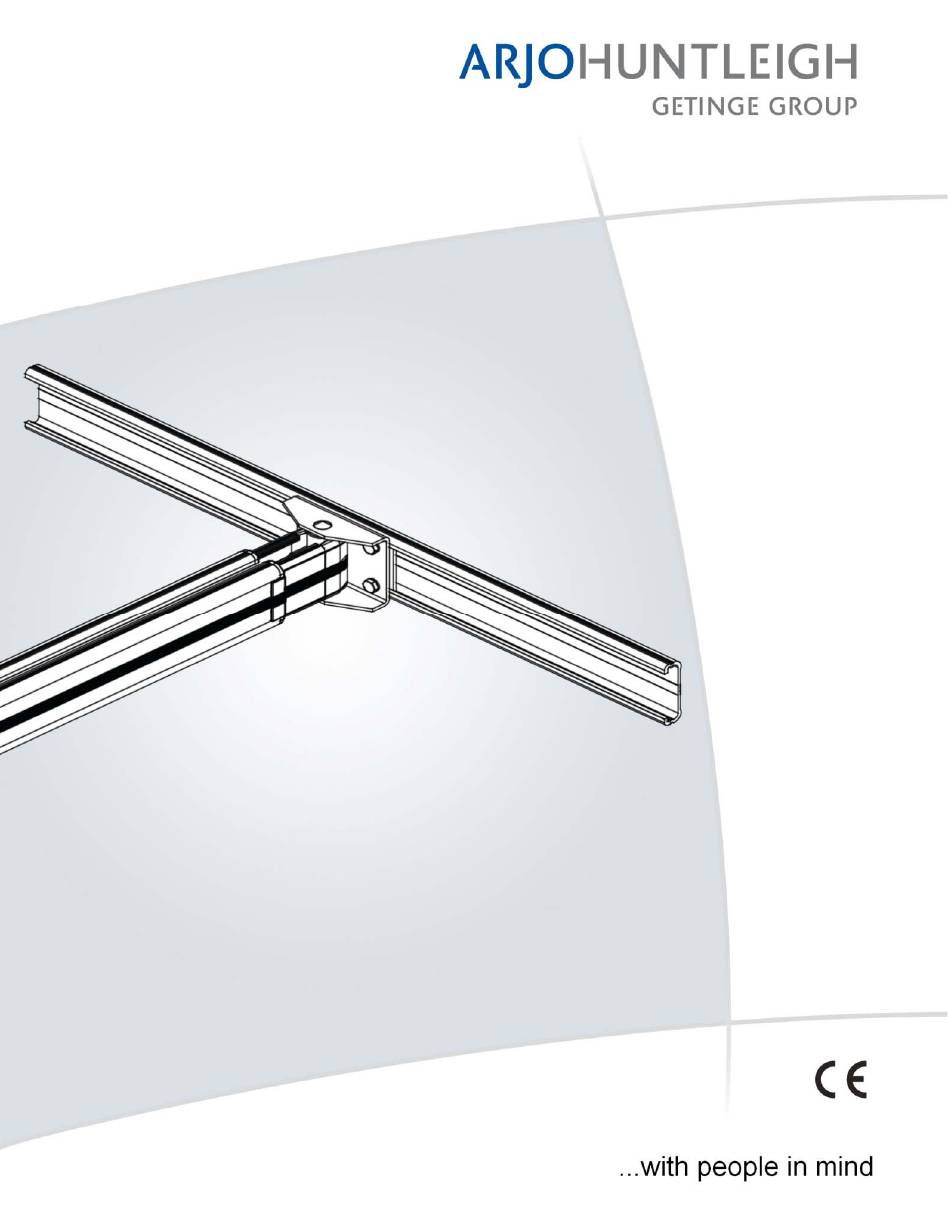

- Page 1 ® EASYTRACK WALL MOUNT ADAPTOR #700.10860 ODEL NSTALLATION AND RODUCT NSTRUCTIONS 001.10650.EN rev. 6 • July 2012...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2012. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the consent of...
-
Page 3: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION ............................3 MANUFACTURER INFORMATION ..........................4 SAFETY INSTRUCTIONS ............................4 REQUIREMENTS ..............................4 IMPORTANT SAFETY DIRECTIONS ........................5 GETTING STARTED ..............................5 WHAT’S INCLUDED (WALL MOUNT ADAPTOR) ...................... 7 ... -
Page 4: Manufacturer Information
REQUIREMENTS The Wall Mount Adaptor should be installed by a licenced contractor. Installation of the Wall Mount Adaptor by someone unskilled will void ArjoHuntleigh warranty and may cause serious injury or damage. A maintenance check should be done every month to ensure the rail is levelled (see the "Maintenance"... -
Page 5: Important Safety Directions
IMPORTANT SAFETY DIRECTIONS WARNING: Failure to observe Safety Directions listed below could result in serious injury. Before you install the Easytrack system: Carefully inspect product upon arrival. If any component is missing (see Figure 8) or appears damaged, install Easytrack system. - Page 6 Figure 3 Transfers should only take place under the Easytrack rail (see Figure 4 and Figure 5). Figure 4 Figure 5 The Wall Mount Adaptor may be installed on either a concrete wall or wood-framed wall. For wood, the Wall Mount Adaptor must be attached to a minimum of three (3) 2 X 3 studs. DO NOT attempt to install the wall mount on less than three (3) studs (see Figure 6).
-
Page 7: What's Included (Wall Mount Adaptor)
The Wal ll Mount A Adaptor mu ust be posi itioned on the wall to o ensure th hat the an gle betwee the wall and the ra il will meas sure more than 30° ( see Figure e 7). Figure 7 WHAT’S IN NCLUDE... -
Page 8: Assembly
ASSEMBLY ASSEMBLY FOR WALL BRACKET EASYTRACK SYSTEM Read the section "Requirements" and the warnings before attempting to WARNING: assemble the Wall Mount Adaptor system. REQUIRED ELEMENTS Step ladder Tape measure Six (6) concrete 3/8" anchors or six (6) 3/8" lag bolts ... - Page 9 If holes are not properly centered, serious damage or injury may occur. DO NOT install steel studs, since reinforcement may be required. WARNING: Call your ArjoHuntleigh dealer for more information. Avoid drilling close to any electrical wiring or plumbing. Please make sure WARNING: you know what is behind the wall you are drilling in before doing any modifications to it.
- Page 10 ) Insert th e pivoting rail attach hment into the wall p plate. Make e sure that t the brack ket is place properly (see Figur re 12). Bott Figure 12 ) See the section "G Getting Sta rted" for su uggested p positions.
-
Page 11: Specifications
PECIFIC ATIONS ASYTRAC CK WALL MOUNT A ADAPTOR SPECIFIC CATIONS SPECIFIC CATIONS 00.10860 Product c code Capacity 00 kg (440 lb nodised alum minium and d steel Material Weight 2 kg (27 lb) WALL MOU UNT ADAP PTOR DIM ENSIONS Figure 14... -
Page 12: Maintenance
MAINTENANCE Failure to follow maintenance instructions below when indicated could WARNING: result in injury or damage. Periodic inspection should be performed by a person who is suitable and properly qualified and well acquainted with the design, use and care of the Easytrack system. -
Page 13: Notes
