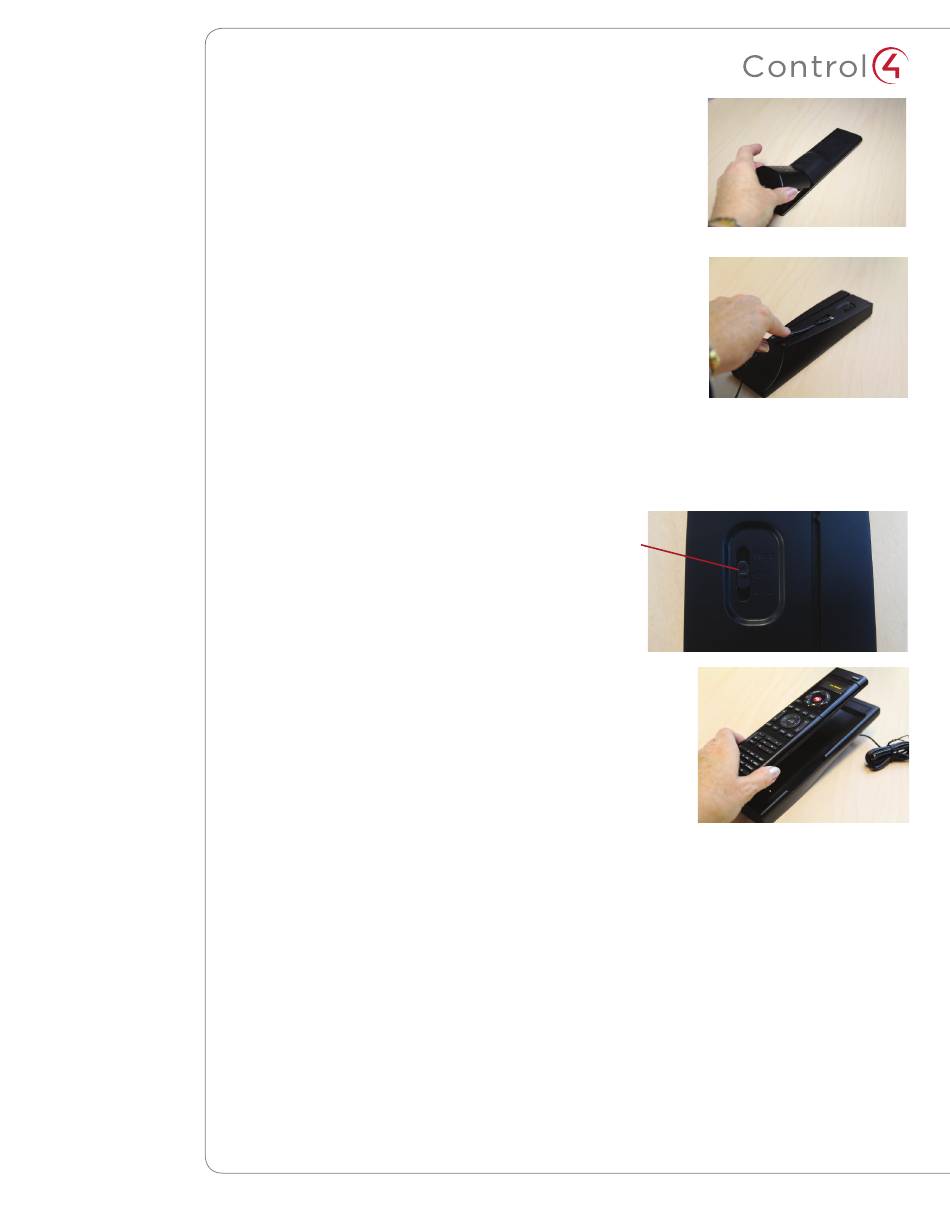

3
Insert the battery cover on your remote.
a
Insert the remote's battery cover into the remote's
slot and push down until the cover is flat
against the remote.
b
With the cover in a horizontal position, slide the
cover into the slot until it snaps shut.
4
Attach the power supply.
a
Insert the USB cable into the back of the
recharging station; thread the power cord through
the indentation on the bottom of the recharger.
b
Attach the other end of the USB cable to the
power supply.
c
Insert the correct power plug into the power
supply.
5
Set the charging indicator on your recharger.
Turn the recharging station over. Notice the charging indicator button labeled 'High, Off,
and Low.' Move the button to the desired light level.
• High. Sets to the highest light
level.
• Off. Sets the light to off.
• Low. Set the light to low.
6
Place the remote on your recharging station.
a
If you have a recharging station with no remote,
ensure that you've replaced your old batteries
with the new battery and the new cover.
b
While holding the remote in a horizontal position,
place it onto the charging station.
c
Ensure that it is properly seated. The two metal
plates on the back of the remote must touch the
metal pins in the recharging station.
7
Have your remote recognize the recharging station.
• SR-150: Press Room Off # * 4
• SR-250 (if online): Press List Info Config Recharge Station Yes
• SR-250 (if offline): Press List Config Recharge Station Yes
Recharging Station Lights
When your recharging station is on, you may see the following lights. Depending on the
Charging Indicator brightness you select, the indicator light will be High or Low brightness or
Black/Off.
• Red. The remote is recharging, and is not fully charged yet.
• Green. The remote is fully charged.
• Black. The light is off. Either the Charging Indicator is turned off, or the remote is not
seated properly in the recharging station.
©2013. Control4 Corporation. All rights reserved. Control4, the Control4 logo, and the 4-ball logo, are registered trademarks or trademarks of Control4
Corporation in the United States and/or other countries. All specifications subject to change without notice. 200-00327, Rev. A 2/22/13
Charging
Indicator
Button
5 6 0
™
