Control 4 C4-SRRS Setup Manual

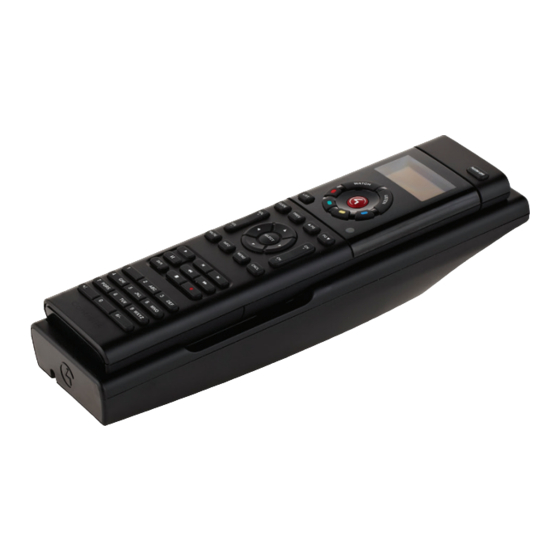

System Remote Control
Recharging Station
Setup Guide
Welcome!
Congratulations on your purchase of the Control4® System
Remote Control Recharging Station. With this product, you no
longer have to worry about your System Remote Control battery
losing its charge and halting in the middle of changing channels
on your TV, while watching a video, or performing other tasks
with your Control4 system.
If the battery level drops, simply place the remote in the station
until the remote is fully charged and ready to use again.
Control4 recommends that you keep the remote on the
recharging station when not in use.

Box contents

If you've purchased the recharging station without a remote
(C4‑SRRS), make sure the following items are included:
• Recharging Station cradle
• Power supply
If you've purchased the recharging station with a remote, make
sure the following items are included:
• System Remote Control
• Recharging Station cradle
• Power supply
• Rechargeable battery
If any of these items are missing, contact your Control4 Dealer
immediately.
1 1
Installation
Important: The remote needs to be on Control4 OS
2.4.0 or later to properly indicate the battery level;
otherwise, a "Low Battery Warning" alert will appear.
Whether your recharging station came with or without a System
Remote Control, follow the steps below.
To set up your remote:
1 Turn the remote upside down. On the bottom of the remote,
slide the battery cover toward you with your thumb and lift it
off of the remote (Figure 1).
Figure 1: Remove battery cover
2 With your fingertip, remove the old batteries (Figure 2).
Figure 2: Remove old batteries
3 On the bottom of the remote (with the cover off and the
old batteries removed), insert the rechargeable battery by
sliding the small end into the slot first (Figure 3). Note the
orientation of + and ‑ symbols for proper battery insertion.
Figure 3: Rechargeable battery
