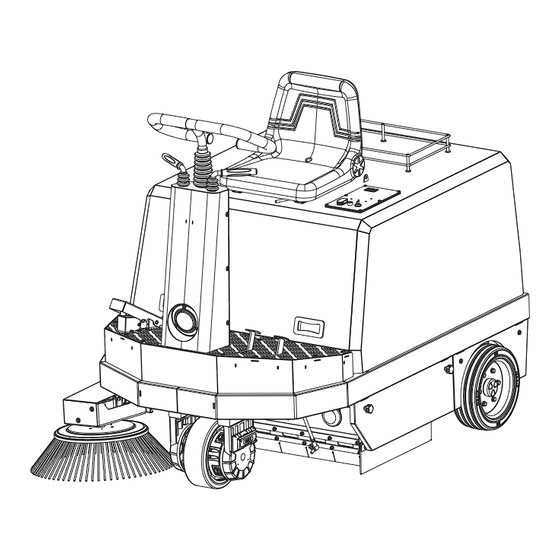

  • Page 1 RootsSweep RB 100 Ride - on Sweeper Owner’s Manual & Illustrated Parts List...

  • Page 3: Table Of Contents

    General Safety Instruction - Ride On Sweepers Battery Instruction First Operation Illustrated Parts list Roots Multiclean Ltd (RMCL) is not liable for any legal claims that may arise as a direct or indirect result of the contents of this manual. Roots Multiclean Ltd. RKG Industrial Estate, Coimbatore - 641 006, India.

  • Page 4: Introduction

    Once again, letter to the concerned RMCL branch/dealer with a copy we thank you for choosing Roots Multiclean as a trusted of the invoice. The letter should be sent within 24 hours partner for your cleaning requirements and solutions.

  • Page 5: Technical Specification

    Reverse speed km/hr Gradability, max. (for 1 min. max) Cylinder broom Length Diameter Side broom Diameter Dimensions and weights Length with side broom 1575 Width with one side broom 1125 Height upto steering 1370 Admissible total weight RootsSweep RB 100...

  • Page 6: General Safety Instruction - Ride On Sweepers

    Ground cleaning machines may be run by qualified Ÿ Ÿ personnel only. the operator or any maintenance personnel who are The machine may be used for cleaning such intended to work on/with the machine. Ÿ surfaces approved by the owner or this authorized representatives. RootsSweep RB 100...
  • Page 7 Pay attention that the insulation of the charger cable Ÿ is not damaged and cannot be damaged during the charging process. The cable must not chafe against anything. In the Ÿ case of defective insulation, do not use the on- board charger. RootsSweep RB 100...

  • Page 8: First Operation

    Ÿ Hood Connect the battery leads. Ÿ Owner’s personnel are not allowed to unpack the machine. Accelerator Hopper pedal Side broom Main Broom Front Wheel with Front Apron Brake pedal Rear Wheel Drive Motor pedal RootsSweep RB 100...
  • Page 9 EMERGENCY READ INSTRUCTION Beacon lamp Control panel Vibrator motor 1. Roots - Silvergrey 7. Remove key / Read Instruction 2. Control Panel sticker 8. Battery Instruction / Open hood 3. Broom controller lever sticker 9. Max gradability 4. Front apron & Brake 10.
  • Page 10 Operating & Indicator Elements f) Beacon lamp (ON/OFF)- The machine operates on the overhead throw method. Toggles the beacon lamp On or Off. RootsSweep RB 100 Ÿ The rotating main broom sweeps the debris into the dirt hopper. g) Working lamp (ON/OFF)- The side broom sweeps the edges and corners and Ÿ...

  • Page 11: Machine Operation

    When the foot is taken off from the accelerator pedal Ÿ the machine will slow down and will coast to a stop. To stop or slow the machine quickly, press the brake Ÿ pedal downwards and release when stopped. RootsSweep RB 100...
  • Page 12 Ensure sufficient ventilation when sweeping Observe the applicable laws and local indoors! It is forbidden to sweep up dust which For mounting the main broom follow the reverse Ÿ regulations when disposing of waste. represents a health hazard! order of dismounting. RootsSweep RB 100...
  • Page 13 R e m o v e t h e f a s t e n e r s (Knob, washer & Spring washer). Remove the Filter holder (2) Ÿ then lift the filter (3). Mounting For mounting the filter follow the reverse order of Ÿ dismounting. RootsSweep RB 100...

  • Page 14: Maintenance

    Check the belt tension Accelerator pedal not functioning Check limit switch in accelerator Check the accelerator & wires to accelerator Vibrator not functioning Check the fuse Check voltage from the board Check the vibrator & Wires to vibartor RootsSweep RB 100...
  • Page 15 Charge the batteries only in a well ventilated area. Ÿ Check the battery electrolyte level and if required, Ÿ refill it. Battery to be charged fully and to be used till the red Ÿ LED blinks for better life. RootsSweep RB 100...

  • Page 16: Battery Instruction

    All battery plugs at machines, batteries and battery - Remove key. manufacturer. Roots cannot be held liable for charger units have to be coded with the colored coding - Tilt hood backward completely.
  • Page 17 Electric connections (e.g-plugs) may be connected or Maintenance to be carried out every three months After disconnected only when the machine is in off condition. Discharge batteries must be recharged immediately RootsSweep RB 100...
  • Page 18 Battery connection diagram Battery & Charger specification Battery specification Type - LA Rating - 6V/200Ah Charger specification Type - External charger Rating - 30 Amps RootsSweep RB 100...

  • Page 19: Illustrated Parts List

    ILLUSTRATED PARTS LIST...
  • Page 20 HEX SOC CSK HD SCREW STEEL - M8 X 55 552020022-00 HEX HEAD SCREW - STEEL 8.8 - M10X25 552350018-00 WASHER-STEEL-10.5X20X2 553510408-00 TYRE 552670168-00 ARMATURE BRUSH 552670169-00 BRUSH CONNECTION BOX NOTE: Item Nos. 22 & 23 are not shown in the drawing. RootsSweep RB 100...
  • Page 21 REAR WHEEL - HUB 553510034-00 HUB - WHEEL 552610021-00 DG BALL BEARING 6005 - 2RS 552610043-00 DG BALL BEARING 6204 2RS 552040009-00 HEX HEAD SCREW SS 304 M8X 25 552510005-00 SPRING WASHER - STEEL - M8 552350016-00 WASHER-STEEL-9.0X17X1.6 553420035-00 STOPPER RootsSweep RB 100...
  • Page 22 A1 CONTROL BOARD RB100 558510116-00 PANEL BOARD WELDMENT 553350771-00 GASKET - HOUR METER 553350233-00 HOUR METER 558510142-00 PIVOT PIN - WELDMENT 552220007-00 HEX SOC CSK HD SCREW - SS304 -M6X10 552140013-00 CR PAN HEAD SCREW - SS304 - M5X12 RootsSweep RB 100...
  • Page 23 CR PAN HEAD SCREW - SS304 - M4X15 552220009-00 HEX SOC CSK HD SCREW - SS304 -M6X20 553310122-00 WASHER - DEFLECTOR 553510283-00 SPACER FLOOR MAT 553510397-00 BELLOW - STEERING 552210006-00 HEX SOC CSK HD SCREW -STEEL -M6X16 553510403-00 EDGE PROTECTOR - RB100 RootsSweep RB 100...
  • Page 24 ROD - MAIN BRUSH ADJ 553510179-00 PIVOT PIN - MAIN BRUSH ADJ 553510176-00 KNOB - MAIN BRUSH 553510161-00 SPRING - MAIN BRUSH ADJ 553510405-00 SPACER - 42 X 28.5 X 2 552450012-00 SPRING DOWEL PIN - STEEL - 6 X 40 RootsSweep RB 100...
  • Page 25 LINK - FILTER COVER TOP 558510149-00 LINK FILTER COVER - WELDMENT 553430123-00 DRIVE LEVER STUD 553510117-00 ROD - FILTER SHAKER 553510118-00 CLIP ON GASKET - FILTER 558510035-00 BASE FILTER FRAME - WELDMENT 553510119-00 GROOVE GASKET - FILTER FRAME RootsSweep RB 100...
  • Page 26 558510039-00 BLOWER DRIVE ASSY 553510089-00 BASE SHEET - BLOWER 558510040-00 BLOWER SUB ASSY 552020008-00 HEX HEAD SCREW - STEEL 8.8 - M6X20 552510005-00 SPRING WASHER - STEEL - M8 552480008-00 HEX NYLOCK NUT STEEL -M8 11 25 RootsSweep RB 100...
  • Page 27 SHAFT - BLOWER 553510092-00 PULLEY - BLOWER 552670137-00 CIRCLIP - B32 552610009-00 DG BALL BEARING 6002-2RS 552350016-00 WASHER-STEEL-9.0X17X1.6 552610046-00 DG BALL BEARING 6202 - 2RS 553510362-00 KEY - 4 X 10 553510157-00 BLOWER BELT - 4PJ 1600 39 49 RootsSweep RB 100...
  • Page 28 HOPPER GROUP RootsSweep RB 100...
  • Page 29 558510030-00 PIVOT SHEET - WELDMENT 553510140-00 GROOVE GASKET - HOPPER 552020008-00 HEX HEAD SCREW - STEEL 8.8 - M6X20 558510053-00 SUPPORT STRIP - WELDMENT 553510173-00 SPRING HOPPER LINK 552170012-00 HEX NUT - STEEL GR. 8 - M8 RootsSweep RB 100...
  • Page 30 Washer - 28X18X2 552670111-00 CIRCLIP - A17 553220147-00 Linear Bearing - 18X11 558510107-00 BRAKE CABLE ASSY - LH 558510106-00 BRAKE CABLE ASSY - RH 552020008-00 HEX HEAD SCREW - STEEL 8.8 - M6X20 552350011-00 WASHER-STEEL-6.4X12.5X1.6 22 21 RootsSweep RB 100...
  • Page 31 552690004-00 HEX SOC GRUB SCREW SS304 M4 X8 552220003-00 HEX SOC CSK HD SCREW - SS304 -M5X10 552300001-00 DOMED CAP NUT-SS 304-M5 553100592-00 3M SAFETY WALK 610 S/W BLACK 553250100-00 GROMMET 552670026-00 CIRCLIP - E4 (TYPE E) RootsSweep RB 100...
  • Page 32 553510258-00 SPACER BRAKE 553510257-00 LINK - BRAKE CABLE 558510072-00 BRAKE PEDAL - WELDMENT 553510276-00 LINEAR BEARING - 14 X 11 558510022-00 BASE BRAKE PEDAL - WELDMENT 552350016-00 WASHER-STEEL-9.0X17X1.6 552480008-00 HEX NYLOCK NUT STEEL -M8 552670166-00 CIRCLIP A13 RootsSweep RB 100...
  • Page 33 STRIP APRON TOP - WELDMENT 553510227-00 FRONT APRON 558510075-00 ROD ASSY - APRON 552350016-00 WASHER-STEEL-9.0X17X1.6 552170012-00 HEX NUT - STEEL GR. 8 - M8 553510211-00 ROD - FRONT APRON 553440332-00 BALL JOINT 552250004-00 HEX LOCK NUT STEEL M8 RootsSweep RB 100...
  • Page 34 MAIN BROOM ASSY 70,71 RootsSweep RB 100...
  • Page 35 SHAFT RH - MAIN BRUSH 553510171-00 LOCK - BRUSH COVER 553510049-00 PULLEY - MAIN BRUSH 552510004-00 SPRING WASHER - STEEL - M6 553510054-00 CAP - BRUSH ARM 552480006-00 HEX NYLOCK NUT-STEEL GR.6-M6-LOW 553510055-00 SPRING ILDER - MAIN BRUSH RootsSweep RB 100...
  • Page 36 MAIN BROOM ASSY 40 19 34 36 36 53 60 58 40 56 RootsSweep RB 100...
  • Page 37 HEX HEAD SCREW - STEEL 8.8 - M8X20 558510027-00 BRUSH LOCK - WELDMENT 552090003-00 WAVE WASHER - 34 X 28 553510080-00 SLEEVE - BUSH LH SOFT BRUSH 558510146-00 MAIN BRUSH - PA HARD BRUSH (OPTIONAL) 558510147-00 MAIN BRUSH - PBT RootsSweep RB 100...
  • Page 38 SIDE BROOM ASSY RootsSweep RB 100...
  • Page 39 HEX HEAD SCREW - SS 304 - M8X40 558510052-00 GEAR BOX - SIDE BROOM 552010006-00 HEX HEAD SCREW - STEEL 8.8 - M8X100 558510057-00 BRACKET GEAR BOX - WELDMENT 558510108-00 SIDE BROOM CABLE ASSY 552210006-00 HEX SOC CSK HD SCREW -STEEL -M6X16 RootsSweep RB 100...
  • Page 40 BATTERY GROUP RootsSweep RB 100...
  • Page 41 558100165-00 RB 800 TVS DIODE ASSY 553100331-00 FUSE - T - 1A 553510350-00 SPIRAL HOSE KIT 558510086-00 BRACKET A2 BOARD - WELDMENT 553510288-00 SPACER - PCB 552350005-00 WASHER-STEEL-4.3X9.0X0.8 Note: Ref No.22 is not shown in the figure RootsSweep RB 100...
  • Page 42 552270002-00 CRPH SELF TAPPING SCREW-2.9X9.5 552130003-00 CR PAN HEAD SCREW - STEEL - M4X6 553100193-00 VM DC CONTACTOR 553100203-00 FUSE BOLT DOWN 100A 553100204-00 FUSE BOLT DOWN 50A 553320600-00 FUSE-2A 553320472-00 FUSE-5 553100207-00 FUSE -10A 553320471-00 FUSE-25 RootsSweep RB 100...
  • Page 43 ELECTRICAL CIRCUIT RootsSweep RB 100...
  • Page 44 558510083-00 CA 43 (-A2.J6, -A2.J12, -X8 - DC) BUZZER HOUR METER SPEED CONTROLLER DM LAMP HEAD LIGHT BEACON LAMP L3, L4 & L5, L6 LED INDICATOR - 24 V.A1 & V.A2 ACTUATOR - 12V DC DRIVE MOTOR - RB 800 RootsSweep RB 100...
