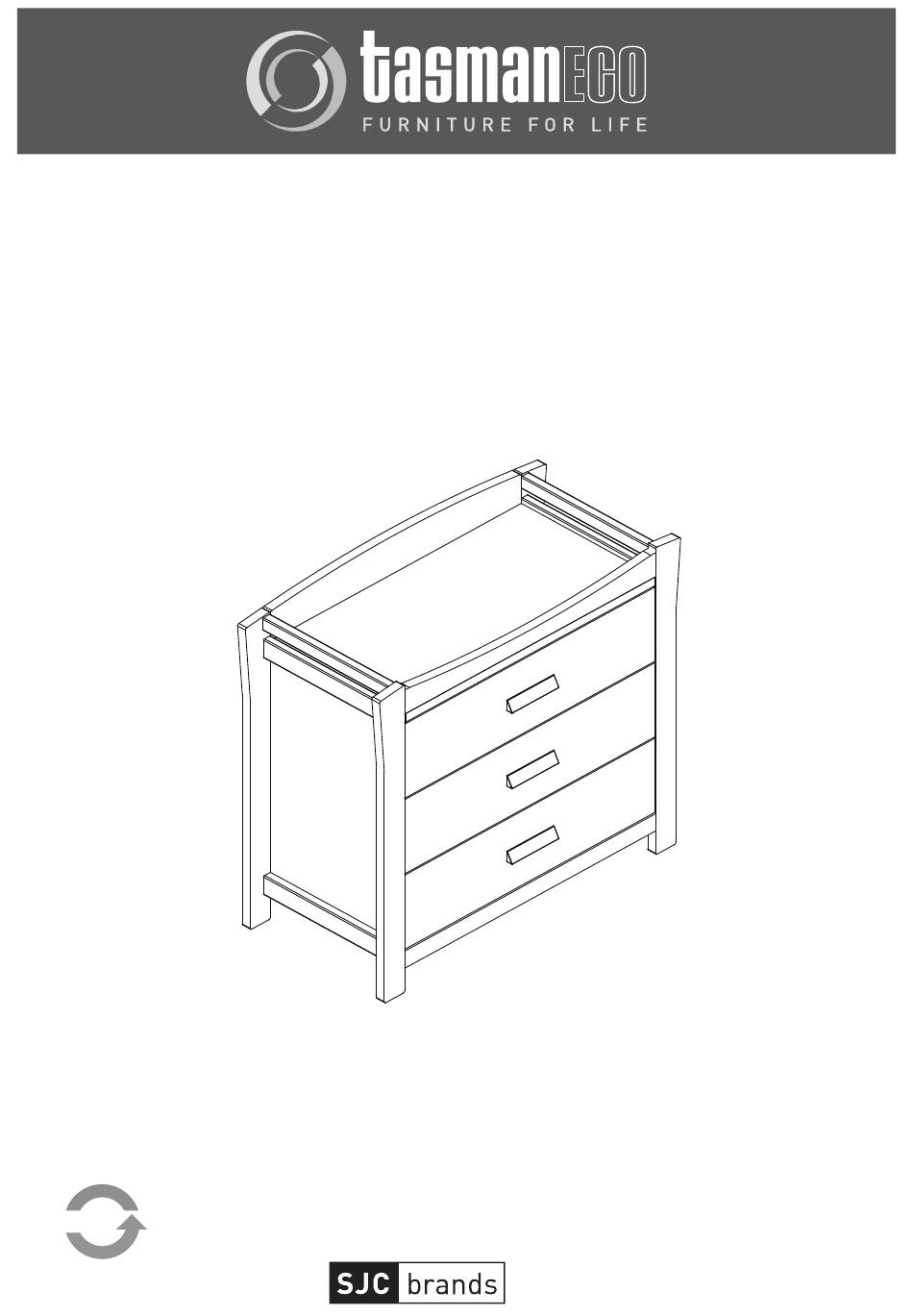

Capri 3 Drawer Chest
Assembly Instruction
RECYCLED
Packaging and instructions
printed on recycled materials
1
Save the instructions for future reference.
Assembly of this furniture is best undertaken by two people.
SJC Brands Pty Ltd
abn.
58 106 988 578
4-6 Merryvale Rd, Minto, NSW 2566
t.
02 9603 5000
f. 02 9603 7000
e.
customer.service@sjcbrands.com.au
p.o. box
5878 MINTO DC, NSW 2566
www.tasmaneco.com.au
w.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SJC brands tasman eco Capri
Summary of Contents for SJC brands tasman eco Capri
- Page 1 Assembly Instruction Save the instructions for future reference. RECYCLED Assembly of this furniture is best undertaken by two people. customer.service@sjcbrands.com.au SJC Brands Pty Ltd abn. 58 106 988 578 Packaging and instructions 4-6 Merryvale Rd, Minto, NSW 2566 p.o. box...
-
Page 2: Hardware List
Hardware List Metal Handle x 3 Bolt M4 x 18 x 6 Locking Pin x 37 Camlock x 37 Bolt M6 x 35 x 8 Allen Key Wall Strap x 1 Self Tapping Screw M4 x 25 x 2... -
Page 3: Parts List
Parts List Chest top board x 1 Rear and Front top changer Side panel with leg x 2 Rear Front Bottom connector panel x 1 Bottom base x 1 Chest back panel x 2 Drawer side panel ( rihgt ) x 3 Drawer side panel ( left ) x 3 Middle rail x 1 Drawer front panel x 3... - Page 4 Fit locking pins to side panels with leg. Locking pin x 4 Insert one chest back panel sliding into Fit middle rail to two side panels groves on side panels. secure with camlocks. Chest back panel Camlock x 4 Fit locking pins to bottom Fit bottom base to two sides panels secure connector panel.
- Page 5 Insert other pack panel into Fit locking pins to chest top groves on side panels. board. Locking pin x 6 Fit rear & front top changer to chest Fit chest top board to side panels top board secure with camlocks. secure with M6 x 35 bolts.
- Page 6 Fit camlocks to rear of Insert base into the groves Fit locking pins to the drawer panels. in the side panels. drawer side panels. Locking pin x 4 Camlock x 4 Fit locking pins into front Align the front drawer panel secure with drawer panels.
- Page 7 Instruction for Wall Strap installation Hardware List Self tapping screw x 2 Wall Strap x 1 Step 1- Screw Wall strap to back of the chest with self tapping screw ( Supplied ). Front Front Back Back Step 2- Position the strap 100mm the left of its intended final position in order to give you room the screw the wall strap into the wall.
- Page 8 Wall Step 5 - The stallation of your wall strap is now completed Wall RECYCLED Save this instruction for future reference. SJC Brands Pty Ltd abn. 58 106 988 578 www.tasmaneco.com.au Packaging and instructions 4 Merryvale Road, MINTO, NSW 2566 p.o.
-
Page 9: Guarantee & Warranty
The replacement product will be identical to the originally purchase product wherever possible, though in situations where the identical model is discontinued or out of stock, then SJC Brands Pty Ltd will replace the product with a model that is functionally equivalent This Guarantee is made to the purchaser and/or original owner only.
