Vouge 3 Drawer Chest
Assembly Instruction
RECYCLED
Packaging and instructions
printed on recycled materials
1
Save the instructions for future reference.
Assembly of this furniture is best undertaken by two people.
SJC Brands Pty Ltd
abn.
58 106 988 578
4-6 Merryvale Rd, Minto, NSW 2566
t.
02 9603 5000
f. 02 9603 7000
e.
customer.service@sjcbrands.com.au
p.o. box
5878 Minto DC, NSW 2566
www.tasmaneco.com.au
w.
Advertisement
Table of Contents
Related Manuals for SJC brands tasman eco Vouge
Summary of Contents for SJC brands tasman eco Vouge

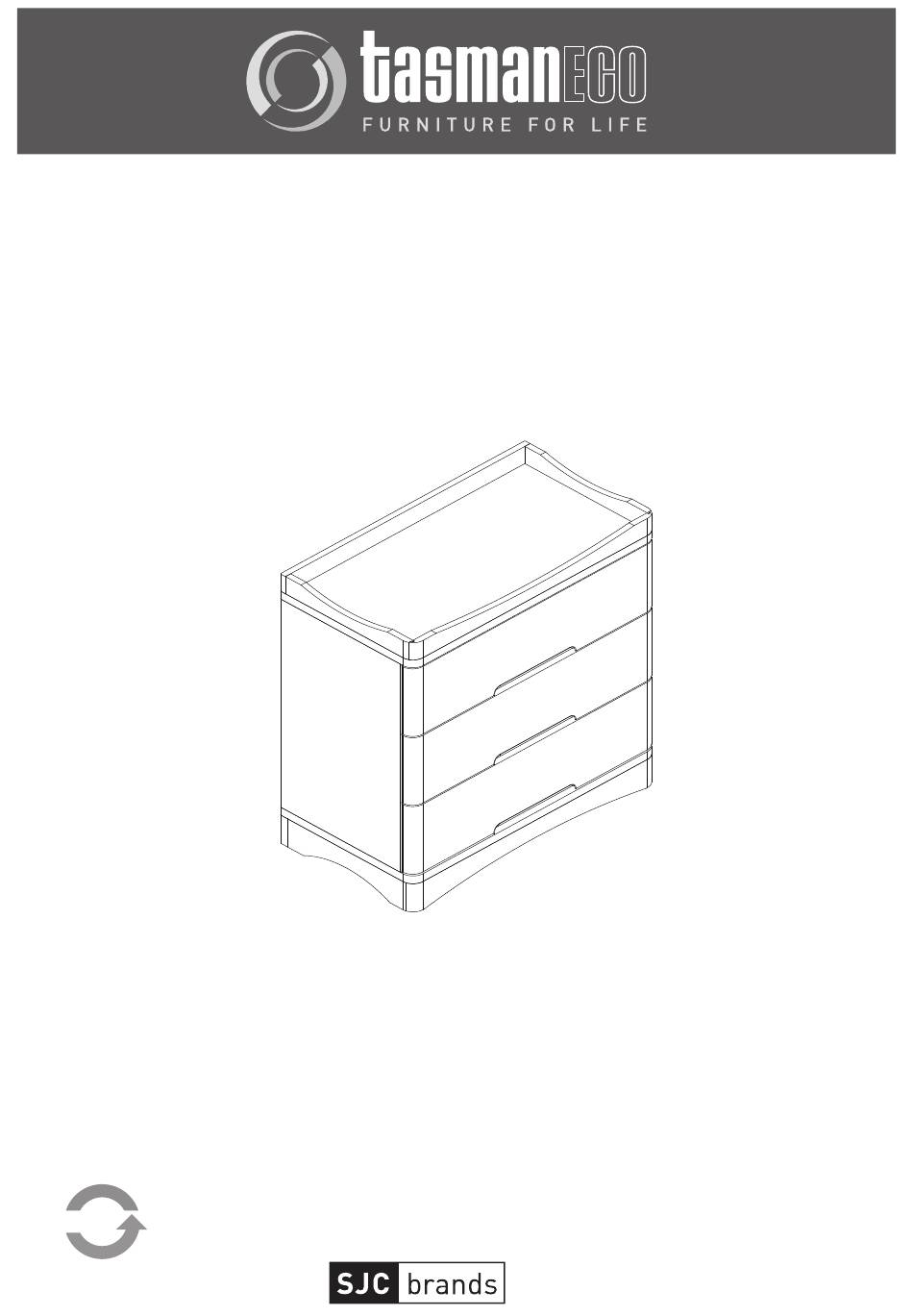

- Page 1 Assembly Instruction Save the instructions for future reference. RECYCLED Assembly of this furniture is best undertaken by two people. customer.service@sjcbrands.com.au SJC Brands Pty Ltd abn. 58 106 988 578 Packaging and instructions 4-6 Merryvale Rd, Minto, NSW 2566 p.o. box...
- Page 2 Hardware List Alan Key Locking Pin x 28 M6 x 35 Bolt x 8 Camlock x 28 M4 x 35 Screw x 2 Wall strap x 1 Recheck tightness Re-tighten all connector bolts (at least two months after assembling the chest), as some connectors may loosen as the chest settles.Periodically check all of the connector screws,making sure they are tight.
- Page 3 Drawer base panel x 3 Chest back panel x 2 Drawer front panel x 3 Middle rail x 1 Drawer side panel ( left ) x 3 Dreawer side panel( right ) x 3 Drawer back panel x 3 Step 1 - Fit locking pins to side panel Locking pin x 2 Step 2...
- Page 4 Step 3 Insert one back panel sliding Turn around the chest into groves on side panels.then fit bottom base to side panels secure with M6 x 35 bolts. M6 x 35 Blot x 4 Step 4 Chest frame is complete. Fit top board to side Insert other back panel into panels secure with...
- Page 5 Step 6 Fit drawer front panel The drawer is complete. Fit locking pins to drawer to drawer panels secure front panel. with camlock. Locking pin x 2 Camlock x 4 Step 7 Insert the drawers,chest is complete. Instruction for Wall strap installation Hardware List Wall strap x 1 Self tapping screw x 2...
- Page 6 The stallation of your wall strap is now completed Wall Wall Step 4 Step 5 RECYCLED Save this instruction for future reference. SJC Brands Pty Ltd abn. 58 106 988 578 www.tasmaneco.com.au Packing and instructions 4 Merryvale Road, Minto, NSW 2566 p.o. box...
- Page 7 The replacement product will be identical to the originally purchase product wherever possible, though in situations where the identical model is discontinued or out of stock, then SJC Brands Pty Ltd will replace the product with a model that is functionally equivalent This Guarantee is made to the purchaser and/or original owner only.
